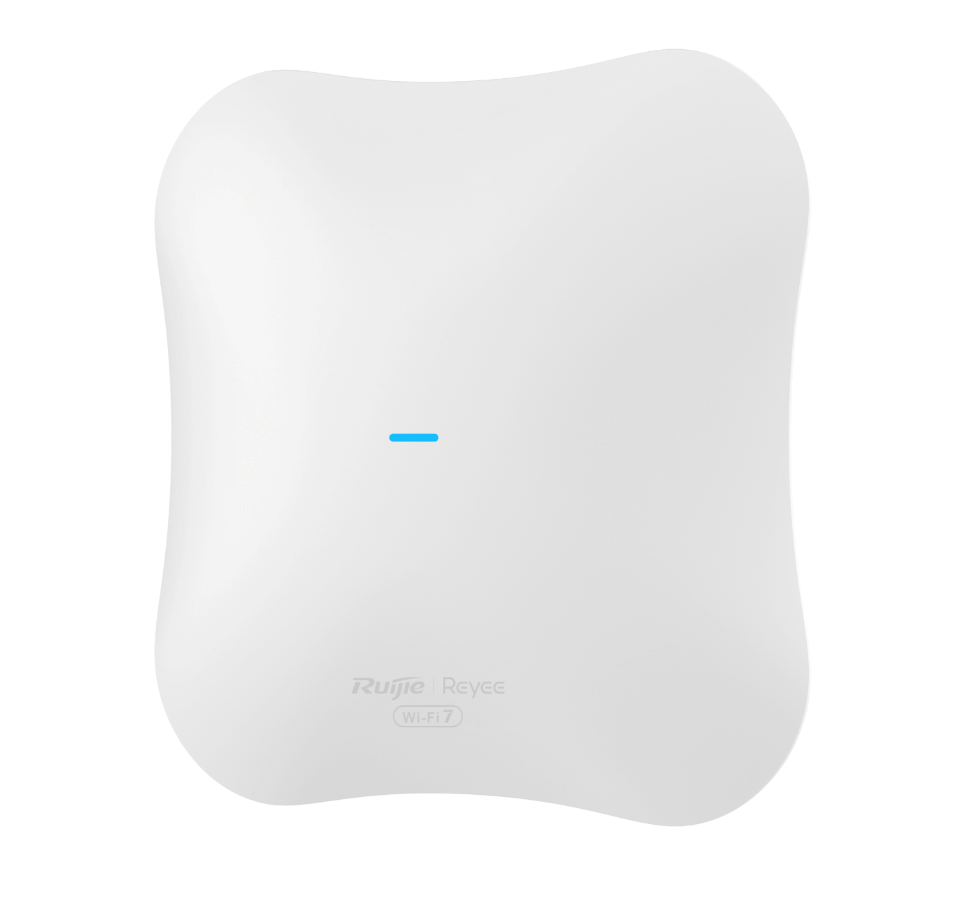

RUIJIE WF-FI 7 BE5040 Dual Band Ceiling Access Point

The RUIJIE WF-FI 7 BE5040 is a cutting-edge dual-band ceiling access point designed to deliver ultra-fast and reliable wireless connectivity. Featuring the latest Wi-Fi 7 technology, this device offers superior performance for high-density environments, making it an ideal solution for enterprises, schools, hospitals, and public spaces. With support for both 5GHz and 2.4GHz frequency bands, the BE5040 provides wide coverage, improved network efficiency, and enhanced user experience.

It is designed to be mounted on the ceiling, optimizing signal distribution and providing seamless wireless coverage across large areas. This access point is capable of supporting high-speed internet connections, robust security protocols, and efficient data management.

KEY FEATURES

• Wi-Fi 7 (802.11be): Supports the latest Wi-Fi 7 standard, offering faster speeds, lower latency, and better performance in congested networks.
• Dual-Band Operation: Supports both 2.4GHz and 5GHz frequency bands, ensuring excellent range and optimal performance in high-traffic areas.
• High Data Throughput: Supports advanced modulation and high-speed connections, delivering a faster and more reliable network experience for users.
• Ceiling Mountable Design: Designed for easy ceiling installation, ideal for large indoor spaces to provide better signal distribution and uniform coverage.
• Advanced Security: Equipped with WPA3 encryption and other security features to ensure safe and protected wireless communication.
• High-Density Support: Built to handle high-density environments, making it suitable for offices, schools, and large public spaces.
• Smart Load Balancing: Automatically balances the load across available channels for optimized network performance.
• Seamless Roaming: Supports fast roaming, ensuring devices stay connected while moving throughout the coverage area without disruption.
• Management Options: Supports cloud and local management solutions for ease of network administration.

SPECIFICATIONS

• Wireless Standard: Wi-Fi 7 (802.11be), backward compatible with Wi-Fi 6/5/4.
• Frequency Bands:
  • 2.4GHz (up to 1.2Gbps)
  • 5GHz (up to 4.8Gbps)
• Max Data Rate:
  • 2.4GHz: 1.2Gbps
  • 5GHz: 4.8Gbps
• MIMO Support: 8x8 MU-MIMO (Multi-User, Multiple Input, Multiple Output).
• Ethernet Ports:
  • 1 x Gigabit Ethernet Port (PoE+ supported)
  • 1 x 10G SFP+ uplink port
• Power Supply:
  • PoE+ (Power over Ethernet) for easy installation
• Antenna Type: Internal omnidirectional antennas with high gain
• Mounting: Ceiling-mounted design, suitable for large indoor environments.
• Security: WPA3, WPA2, 802.1X, Advanced Encryption Standards.
• Dimensions: 8.5 x 8.5 x 2.5 inches (approx.)
• Operating Temperature: 0?C to 40?C (32?F to 104?F)
• Management Software: Compatible with Ruijie?s cloud management platform and local controller management.

Additional Features

• Smart Traffic Management: Optimizes bandwidth usage and minimizes congestion for seamless browsing, video streaming, and other high-demand applications.
• QoS (Quality of Service): Prioritizes network traffic to ensure critical applications receive the necessary bandwidth for performance.
• Wired and Wireless Integration: Can integrate seamlessly with other network devices for a hybrid wired-wireless solution.
• Compatibility: Works with all Wi-Fi 7, 6, 5, and legacy devices.

This access point is engineered to meet the needs of modern, high-traffic environments, providing high-speed, reliable wireless access for business-critical applications and everyday use. Whether you're upgrading an existing network or deploying a new infrastructure, the RUIJIE WF-FI 7 BE5040 is a reliable, future-proof solution.
