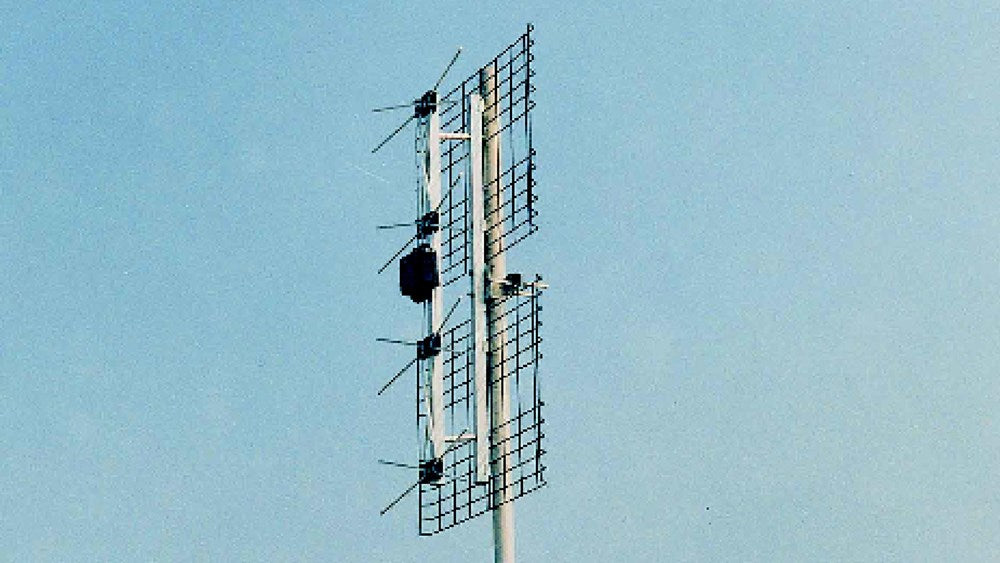

Phased Array UHF Antenna Large

The Delta Phased Array UHF Antenna (Large) is a high-performance aerial designed to deliver strong and reliable reception in areas where signal conditions are challenging, such as locations affected by interference, ghosting, or weak signals. Its phased array design enhances directional gain and minimises signal reflections, ensuring superior picture quality for Free-to-Air UHF television channels. Built with a large, robust frame and corrosion-resistant materials, this antenna is engineered for long-lasting outdoor use, making it ideal for both residential and commercial installations.

Key Features:

• Large phased array design for high-gain UHF reception

• Excellent performance in low-signal or high-interference areas

• Reduces ghosting and multipath interference

• Optimised for Free-to-Air UHF TV channels

• Durable, weatherproof construction for outdoor installation

• Corrosion-resistant materials for long service life

• Easy to assemble and mount

• Suitable for residential and commercial applications

Specifications:

• Antenna Type: UHF phased array – large

• Frequency Range: 470 – 694 MHz (UHF TV channels)

• Channel Range: Ch 28 – Ch 51 (post restack)

• Gain: Approx. 12 – 15 dB

• Polarisation: Horizontal or vertical (mount adjustable)

• Front-to-Back Ratio: > 20 dB

• Impedance: 75 Ohm

• Connector Type: F-Type (balun included)

• Dimensions: Approx. 1200 mm × 800 mm × 100 mm

• Material: Aluminium and UV-resistant plastic components

• Operating Temperature: –20°C to +60°C
