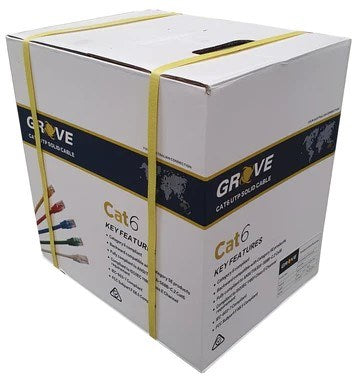

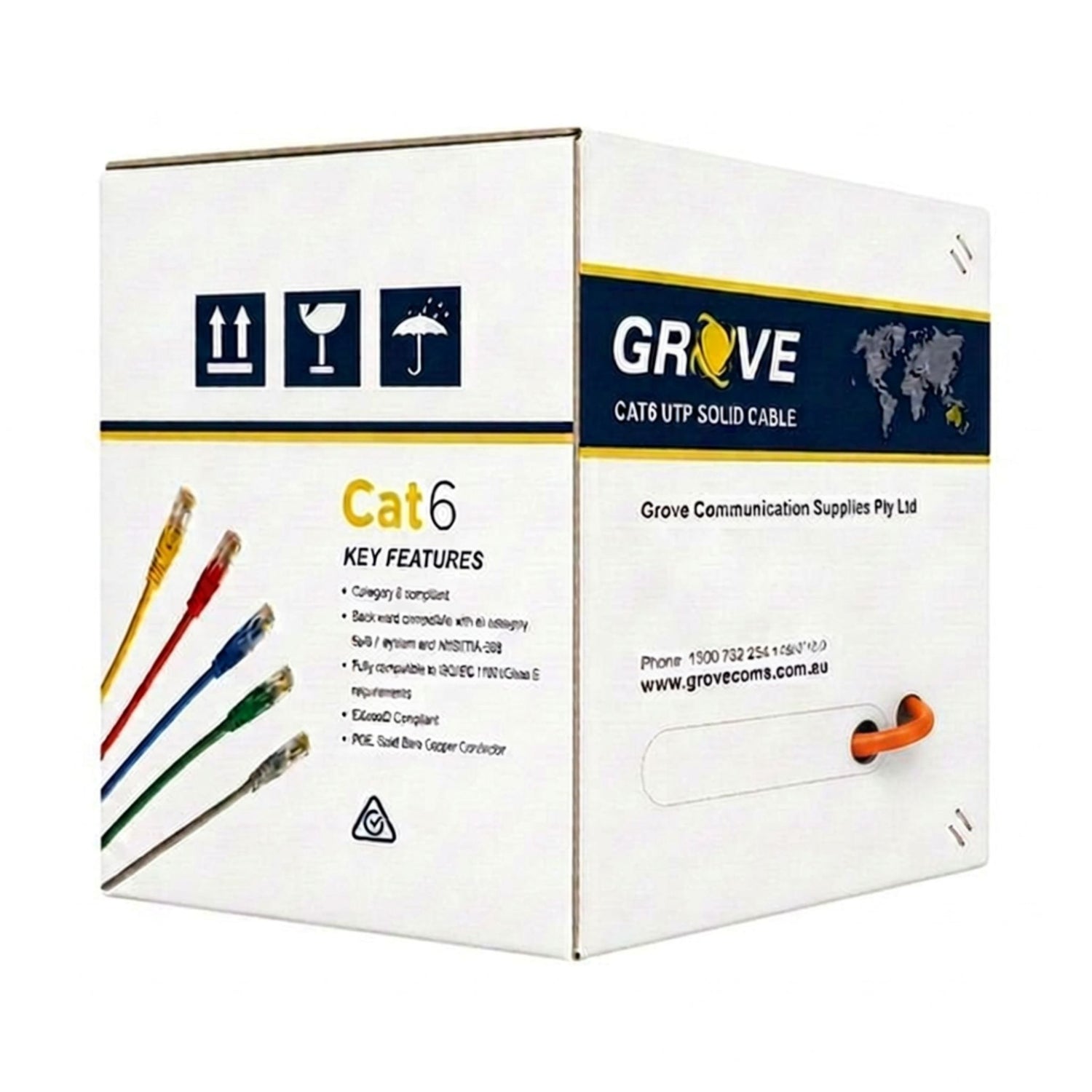

4 Pair UTP Cat6 Cable Box 305Mtr | Orange

The Grove 4 Pair UTP Cat6 Cable Box 305Mtr | Orange is a high-quality networking cable designed for dependable data transmission in structured cabling systems. Supporting speeds up to 1 Gbps with 250 MHz bandwidth, this Cat6 cable is ideal for Ethernet, VoIP, CCTV, and general networking applications. Constructed with 23AWG solid copper conductors and four twisted pairs, it reduces crosstalk and ensures signal integrity. The vibrant orange PVC jacket allows easy identification in complex cabling setups. Supplied in a 305-metre pull box, it provides smooth, tangle-free installation suitable for both professional and residential environments.

Key Features

• Category 6 UTP cable supporting up to 1 Gbps
• 250 MHz bandwidth for stable, high-speed data transfer
• 4 twisted pairs of 23AWG solid copper conductors
• Orange PVC sheath for visibility and identification
• Supplied in a 305-metre pull box for convenient installation
• Minimises crosstalk for reliable signal quality
• Standards-compliant: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D
• Suitable for commercial, enterprise, and residential cabling

Specifications

• Category: Cat6 UTP
• Length: 305 m
• Conductor: 23AWG solid bare copper
• Pairs: 4 twisted pairs
• Bandwidth: 250 MHz
• Data Rate: Up to 1 Gbps
• Sheath Material: PVC
• Outer Diameter: Approx. 6.5 mm
• Colour: Orange
• Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D, RoHS
• Packaging: Pull box for tangle-free installation

Applications

• Local Area Networks (LANs)
• Ethernet and Gigabit Ethernet connections
• VoIP and IP telephony systems
• Video surveillance (CCTV)
• Structured cabling in offices and residential properties
• Data transfer in commercial and enterprise networks

View Data Sheet
