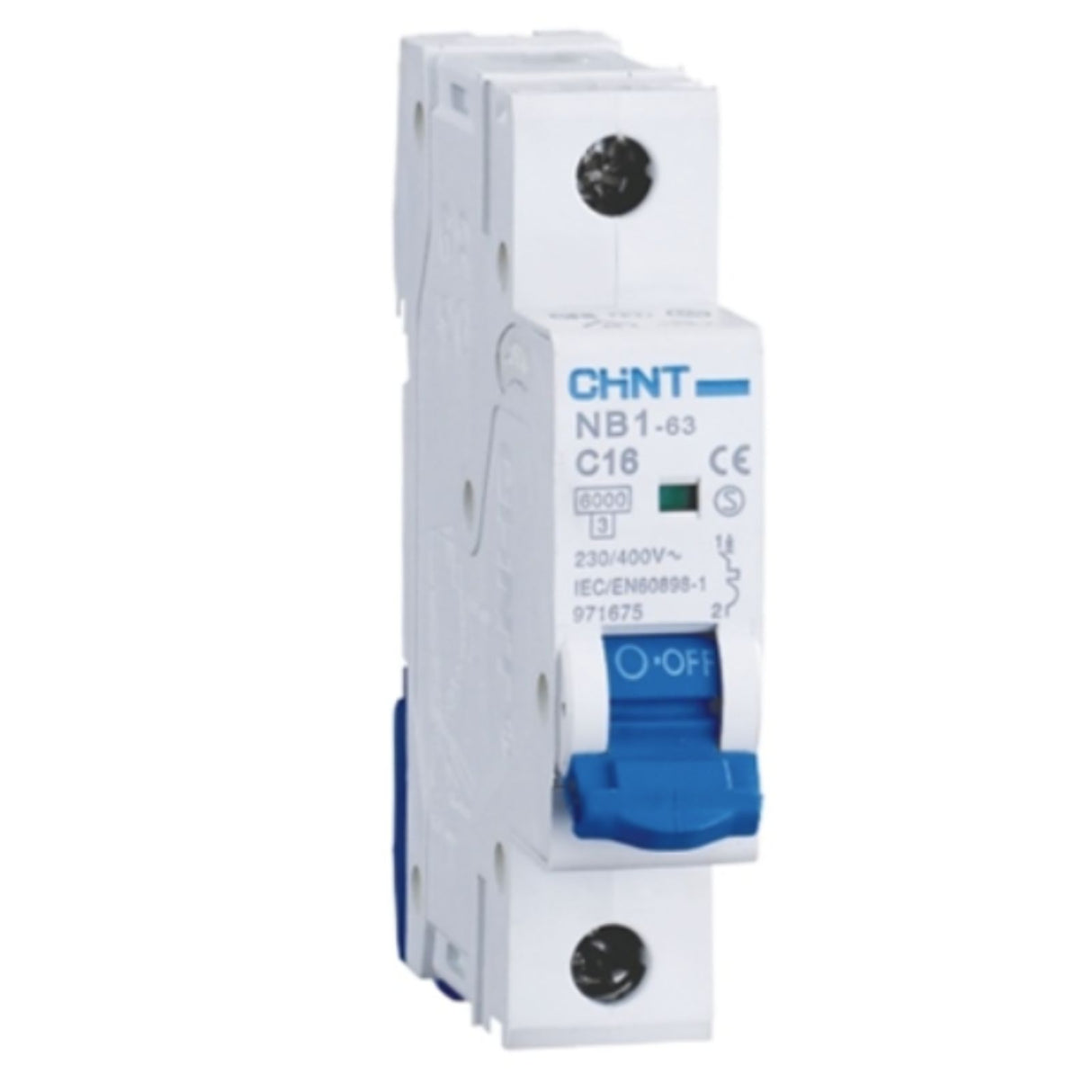

MCB 1 Pole 6kA 16A | C Curve

The 1 Pole 6kA 16A C Curve MCB is a compact and reliable miniature circuit breaker engineered to protect electrical installations from overloads and short circuits. With a C curve tripping characteristic, it is ideal for circuits with moderate inrush currents such as small motors, lighting systems, and appliances.

Rated at 16 amps, this breaker is well-suited for both residential and commercial applications. The 6kA breaking capacity ensures safe operation during fault conditions, and its DIN rail mount design enables quick and secure installation in standard distribution boards.

Key Features:

• 16A Rated Current: Suitable for moderate load protection

• C Curve Tripping: Handles inrush currents from small motors or inductive loads

• 6kA Short Circuit Rating: Provides robust fault protection

• Single Pole (1P): Protects single-phase circuits

• Thermal-Magnetic Mechanism: Reliable dual-mode protection

• DIN Rail Mounted: Easy integration into existing switchboards

• Status Indicator: Shows on/off breaker position

• Compliant with Safety Standards: Certified to AS/NZS and IEC standards

Specifications:

• Rated Current: 16A

• Poles: 1P

• Breaking Capacity: 6kA

• Tripping Curve: C Curve

• Voltage Rating: 230/400V AC

• Mounting: DIN rail

• Operating Frequency: 50/60Hz

• Standards: AS/NZS 60898, IEC 60898

• Applications: Lighting, power outlets, small motors, HVAC systems
