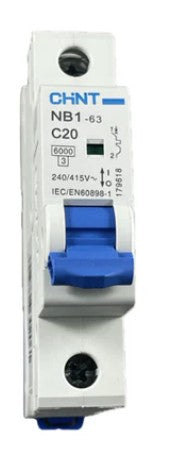

MCB 1 Pole 6kA 20A | C Curve

The 1 Pole 6kA 20A C Curve MCB is a miniature circuit breaker designed for dependable protection of electrical circuits against overload and short circuit conditions. With a 20 amp current rating and a C curve tripping characteristic, it’s ideal for general-purpose use, especially where moderate inrush currents are present—such as small motor loads, power outlets, and lighting circuits.

This breaker features a 6kA short-circuit breaking capacity, ensuring safety in residential and commercial environments. Its compact DIN rail-mountable design allows for quick installation in standard distribution boards, making it a versatile choice for electricians and installers.

Key Features:

• 20A Rated Current: Handles higher loads safely

• C Curve Tripping: Designed for moderate inrush currents

• 6kA Short Circuit Protection: Complies with safety standards

• 1 Pole (1P): Single-phase circuit protection

• Thermal-Magnetic Operation: Dual protection against overloads and short circuits

• DIN Rail Mount: Fast, secure installation

• Status Window: Clear ON/OFF indication

• Standards Compliant: AS/NZS and IEC certified for safety

Specifications:

• Rated Current: 20A

• Poles: 1P (Single Pole)

• Breaking Capacity: 6kA

• Tripping Curve: C Curve

• Voltage Rating: 230/400V AC

• Mounting Type: DIN rail

• Standards: AS/NZS 60898, IEC 60898

• Applications: General-purpose circuits, power points, lighting, small motors
