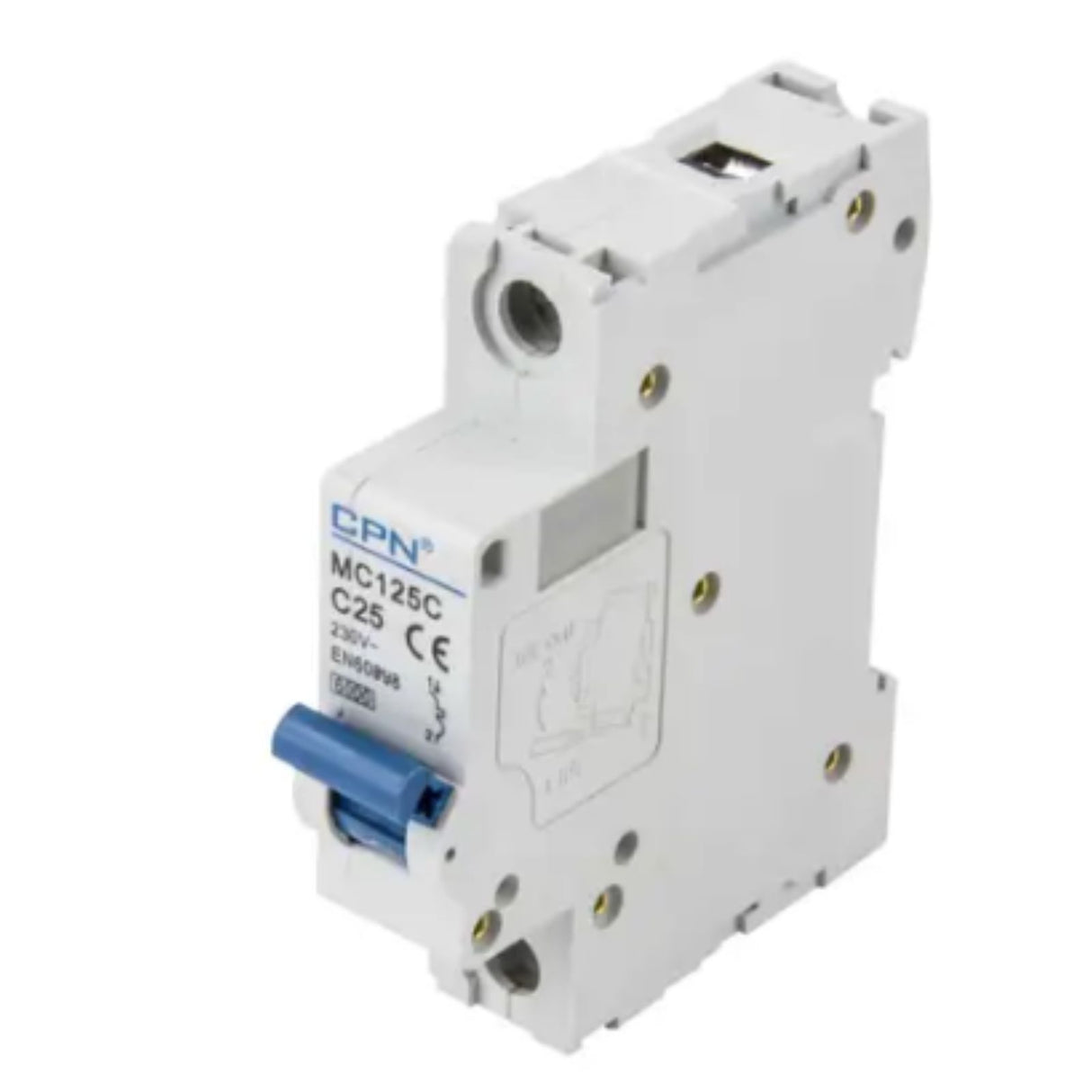

MCB 1 Pole 6kA 25A | C Curve

The 1 Pole 6kA 25A C Curve MCB offers dependable protection for single-phase electrical circuits, guarding against both overload and short circuit faults. With a 25 amp current rating and a C curve tripping characteristic, this miniature circuit breaker is ideal for moderately inductive loads, such as lighting banks, power outlets, and small machinery.

The 6kA short-circuit capacity ensures that it can safely interrupt high fault currents, and the DIN rail mounting design makes for fast and secure installation in any distribution board or switchboard.

Key Features:

• 25A Rated Current: Ideal for slightly heavier loads

• C Curve Tripping: Suited to circuits with moderate inrush currents

• 6kA Fault Protection: Safe performance under short circuit conditions

• Single Pole (1P): Protects single-phase circuits

• Thermal-Magnetic Mechanism: Offers dual-mode protection

• DIN Rail Mountable: Easy installation and replacement

• Status Window: Clear breaker state indication

• Standards Compliant: AS/NZS and IEC certified

Specifications:

• Rated Current: 25A

• Number of Poles: 1 (Single Pole)

• Breaking Capacity: 6kA

• Tripping Curve: C Curve

• Voltage Rating: 230/400V AC

• Mounting Type: DIN rail

• Frequency: 50/60Hz

• Compliance: AS/NZS 60898, IEC 60898

• Applications: Power circuits, outlets, lighting, small industrial equipment
