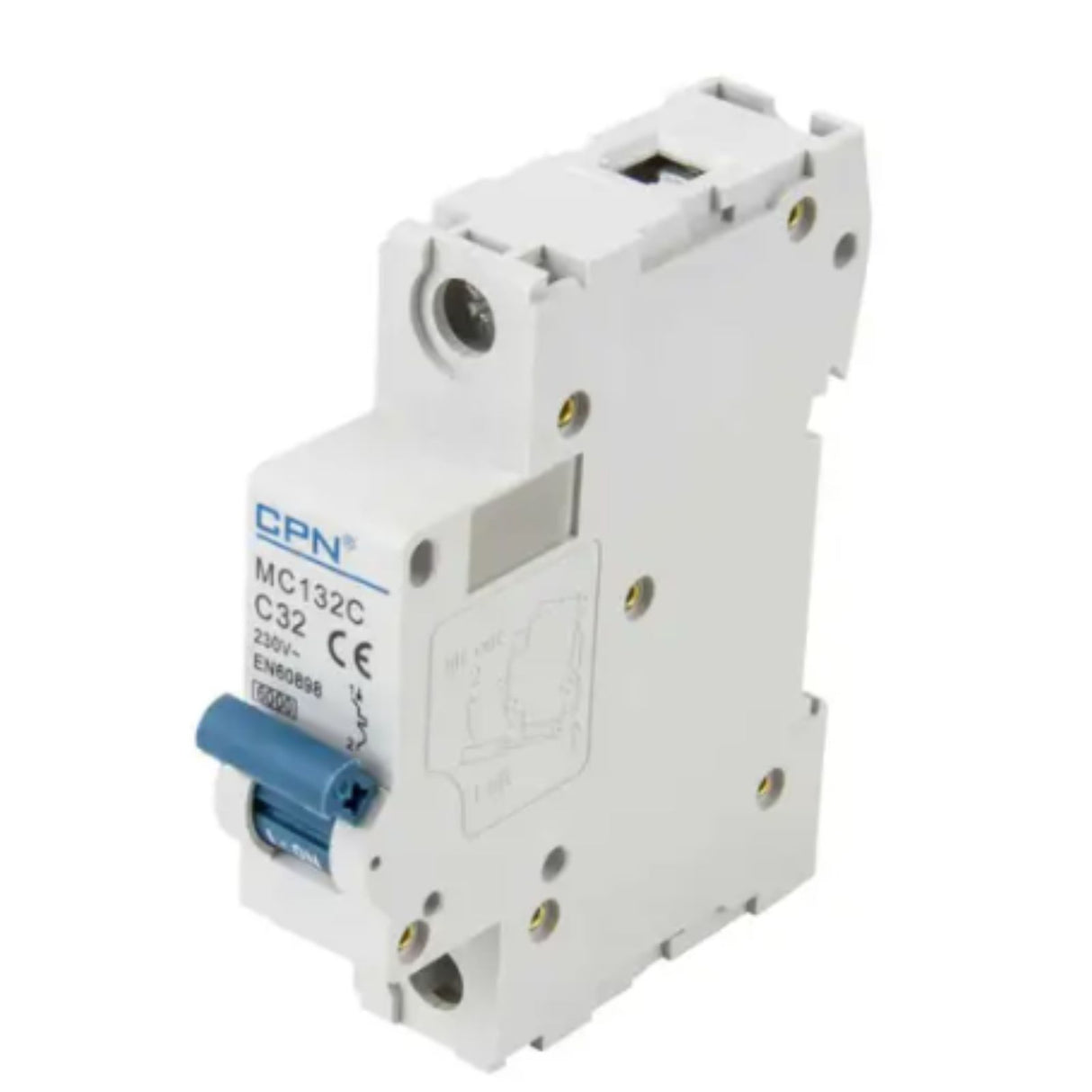

MCB 1 Pole 6kA 32A | C Curve

The 1 Pole 6kA 32A C Curve MCB is a compact and reliable miniature circuit breaker designed to provide essential protection against overloads and short circuits. Rated at 32 amps, this unit features a C curve tripping characteristic, making it suitable for applications with moderate inrush currents such as commercial lighting, power circuits, and motor-driven equipment.

Its 6kA short-circuit breaking capacity ensures safe disconnection during high fault conditions. The MCB is easily installed via a DIN rail mounting system, making it ideal for residential, commercial, and light industrial switchboards.

Key Features:

• 32A Rated Current: Handles higher load demands

• C Curve Tripping: Suitable for circuits with moderate inrush currents

• 6kA Short Circuit Protection: Ensures circuit safety in fault conditions

• Single Pole (1P): Protects single-phase circuits

• Thermal-Magnetic Mechanism: Combines overload and short-circuit protection

• DIN Rail Mount: Quick and secure installation

• ON/OFF Indicator Window: Visual circuit status at a glance

• Certified Safety: Meets AS/NZS and IEC standards

Specifications:

• Current Rating: 32A

• Poles: 1P (Single Pole)

• Breaking Capacity: 6kA

• Tripping Curve: C Curve

• Voltage Rating: 230/400V AC

• Mounting Type: DIN Rail

• Standards Compliance: AS/NZS 60898, IEC 60898

• Application: Lighting circuits, power outlets, motors, HVAC units
