24 Port POE Switch Gigabit | Managed

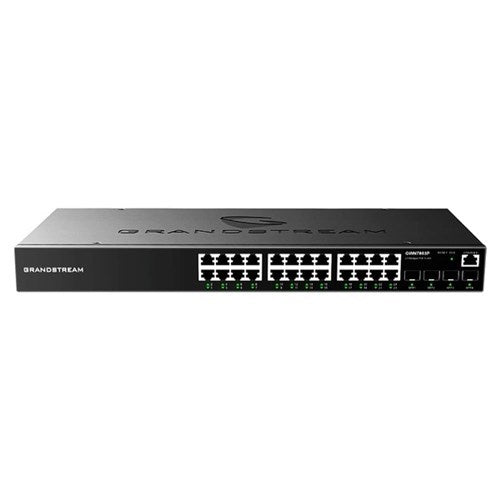

The GRANDSTREAM 24 Port PoE Gigabit Managed Switch is a powerful networking solution designed for larger environments requiring high-performance connectivity and comprehensive management capabilities. With 24 Gigabit Ethernet ports, including PoE support, this managed switch delivers both data and power to connected devices, such as IP cameras, VoIP phones, and wireless access points. Its advanced management features, including VLAN support, QoS, and network monitoring, provide precise control over your network infrastructure, ensuring optimized performance and security.

Key Features

• 24 Gigabit Ethernet Ports: Provides high-speed data transfer with up to 1Gbps for up to 24 network connections.
• 12 PoE-Enabled Ports: Delivers Power over Ethernet to up to 12 devices, supporting IEEE 802.3af/at standards with up to 30W per port.
• Power Budget: Total PoE power budget of 320W, enabling efficient power delivery to multiple PoE devices.
• Managed Switch: Offers advanced management features including VLAN, QoS, and SNMP for network optimization and control.
• VLAN Support: Enables network segmentation for improved security and performance through VLAN tagging.
• QoS (Quality of Service): Prioritizes network traffic to ensure high performance for critical applications.
• Layer 2 Features: Supports features like link aggregation, spanning tree protocol (STP), and port mirroring for enhanced network management.
• Network Monitoring: Includes capabilities for real-time monitoring and diagnostics to track network performance and troubleshoot issues.
• Secure Management: Features secure management protocols, including SSH and HTTPS, to protect configuration and access.
• Energy-Efficient Design: Includes power-saving features to reduce energy consumption during low activity periods.
• Rack-Mountable: Designed for standard 19-inch rack installations, ensuring a neat and organized setup.

Specifications

• Ports:
  • 12 x PoE Gigabit Ethernet Ports (10/100/1000Mbps)
  • 12 x Gigabit Ethernet Ports (10/100/1000Mbps)
• PoE Power Output:
  • Per Port: Up to 30W
  • Total Power Budget: 320W
• PoE Standards: IEEE 802.3af/at
• Data Transfer Rate: 10/100/1000Mbps
• Switching Capacity: 48Gbps
• Forwarding Rate: 35.7Mpps (Million Packets Per Second)
• MAC Address Table: 8K entries
• Jumbo Frame Support: Up to 9K bytes
• VLAN Support: IEEE 802.1Q
• QoS: 802.1p, DSCP
• Layer 2 Features: Link aggregation, STP, port mirroring
• Network Monitoring: SNMP, RMON
• Secure Management: SSH, HTTPS, SNMPv3
• Operating Temperature: 0?C to 40?C (32?F to 104?F)
• Storage Temperature: -20?C to 70?C (-4?F to 158?F)
• Operating Humidity: 10% to 90% non-condensing
• Dimensions: 440mm x 270mm x 44mm (17.32in x 10.63in x 1.73in)
• Weight: 4.2kg (9.26lbs)
• Certifications: CE, FCC, RoHS
• Power Supply: Internal AC power supply, 100-240V AC

The GRANDSTREAM 24 Port PoE Gigabit Managed Switch provides comprehensive management, high-speed connectivity, and efficient power delivery, making it an excellent choice for complex network environments requiring robust performance and control.
