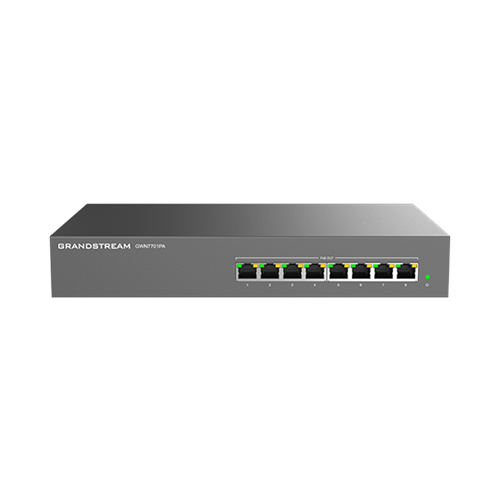

8 Port POE Switch Gigabit

The 8 Port PoE Gigabit Switch is a versatile networking solution designed to provide both data and power to your PoE-enabled devices, such as IP cameras, wireless access points, and VoIP phones. With eight Gigabit Ethernet ports, this switch ensures high-speed connectivity and efficient power delivery. It is ideal for expanding network infrastructure in small to medium-sized businesses or office environments, offering reliable performance and simplified installation with Power over Ethernet (PoE) support.

Key Features

• 8 PoE-Enabled Gigabit Ports: Provides both power and data to up to eight PoE devices, supporting up to 30W per port.
• Gigabit Speed: Delivers data transfer speeds of up to 1Gbps, ensuring fast and reliable network performance.
• PoE Standards: Supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) for flexible power delivery.
• Power Budget: Total PoE power budget of up to 130W, allowing for efficient power distribution to connected devices.
• Auto-MDI/MDIX: Automatically adjusts for network cable types, simplifying connections and reducing the need for crossover cables.
• VLAN Support: Allows for network segmentation and management through VLAN tagging and configurations.
• QoS (Quality of Service): Prioritizes network traffic to ensure optimal performance for critical applications.
• Energy-Efficient Design: Includes power-saving features to reduce energy consumption and operational costs.
• Rack-Mountable: Suitable for installation in standard 19-inch racks, providing a neat and organized setup.
• Durable Build: Designed for reliable performance and long-term use in demanding environments.

Specifications

• Ports:
  • 8 x PoE Gigabit Ethernet Ports (10/100/1000Mbps)
  • 1 x Uplink Gigabit Ethernet Port
• PoE Power Output:
  • Per Port: Up to 30W
  • Total Power Budget: 130W
• PoE Standards: IEEE 802.3af/at
• Data Transfer Rate: 10/100/1000Mbps
• Switching Capacity: 16Gbps
• Forwarding Rate: 11.9Mpps (Million Packets Per Second)
• MAC Address Table: 4K entries
• Jumbo Frame Support: Up to 9K bytes
• VLAN Support: IEEE 802.1Q
• QoS: 802.1p, DSCP
• Operating Temperature: 0?C to 40?C (32?F to 104?F)
• Storage Temperature: -20?C to 70?C (-4?F to 158?F)
• Operating Humidity: 10% to 90% non-condensing
• Dimensions: 290mm x 180mm x 44mm (11.42in x 7.09in x 1.73in)
• Weight: 1.5kg (3.31lbs)
• Certifications: CE, FCC, RoHS
• Power Supply: Internal AC power supply, 100-240V AC

The 8 Port PoE Gigabit Switch offers a comprehensive solution for powering and connecting multiple devices, ensuring efficient network expansion with high-speed performance and reliable power delivery.
