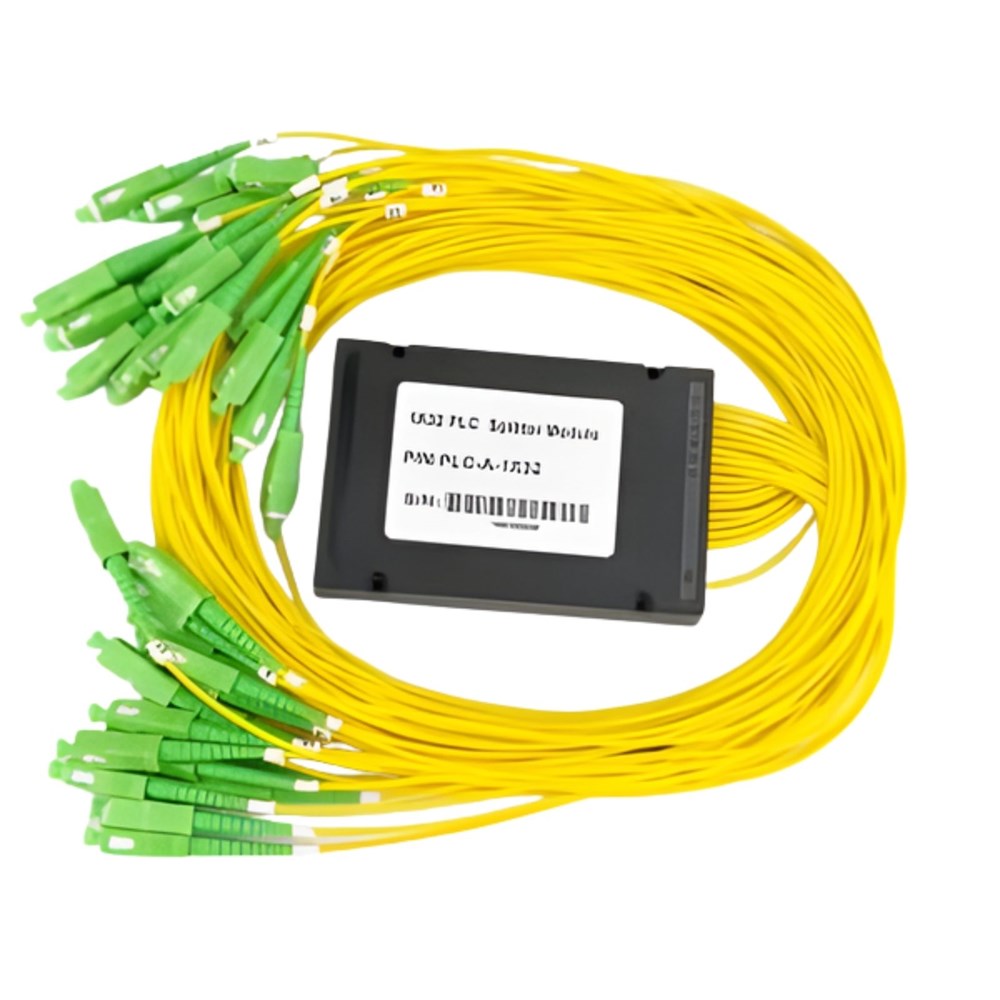

32 Way SCA Fibre Splitter
32 Way SCA Fibre Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
32 Way SCA Fibre Splitter
About this Product
The 32 Way SCA Fibre Splitter is a high-capacity optical device engineered to evenly divide a single incoming optical signal into 32 output channels with exceptional uniformity, low loss, and superior reliability. Utilising advanced Planar Lightwave Circuit (PLC) technology, this splitter delivers stable optical performance across a broad wavelength range, making it ideal for large-scale optical distribution networks.
Designed with a Subscriber Connector Adapter (SCA) interface, the 32-way splitter allows robust, tool-less connectivity and long-term mechanical stability. Its compact and rugged housing ensures dependable operation in both indoor and controlled outdoor environments. This splitter is especially suitable for high-density Fibre-to-the-Home (FTTH) and Passive Optical Network (PON) deployments where efficient signal distribution to many endpoints is critical.
Key Features
- 32 output ports for extensive optical distribution
- SCA connector interface for secure, reliable connection
- Uniform optical splitting with low insertion loss
- Built on stable PLC technology
- Excellent optical return loss (ORL)
- Compatible with single-mode fibres (ITU-T G.657 / G.652)
- Compact, rugged housing with superior reliability
- Wide operating temperature tolerance
- Low Polarisation Dependent Loss (PDL)
- RoHS compliant and factory tested
Specifications
| Parameter | Value / Range |
|---|---|
| Splitter Type | 1×32 PLC Fibre Splitter |
| Interface Type | SCA (Subscriber Connector Adapter) |
| Fibre Type | Single-mode optical fibre (SMF) |
| Wavelength Range | 1260 nm – 1650 nm |
| Insertion Loss (Typical) | ≤ 16.5 dB |
| Insertion Loss (Maximum) | ≤ 18.0 dB |
| Uniformity (Max) | ≤ 2.0 dB |
| Return Loss | ≥ 50 dB |
| Polarisation Dependent Loss | ≤ 0.3 dB |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Connector Types | SCA standard / Optional SC/APC, LC/APC |
| Humidity | 0 % to 95 % (non-condensing) |
| Package Dimensions | Approx. 160 mm × 120 mm × 25 mm |
| Compliance & Standards | RoHS, Telcordia GR-1209/1221 compliant |
Applications
- The 32 Way SCA Fibre Splitter is ideal for:
- FTTH (Fibre-to-the-Home) network deployments
- PON / GPON / EPON / BPON broadband access systems
- Telecommunications carriers & ISPs
- CATV optical distribution systems
- Large-scale data centre optical networks
- LAN/WAN optical infrastructure
- Fibre optic test and measurement systems
