2 Way Splitter 5-2400 MHZ Reverse PP 30VDC 2A
About this Product

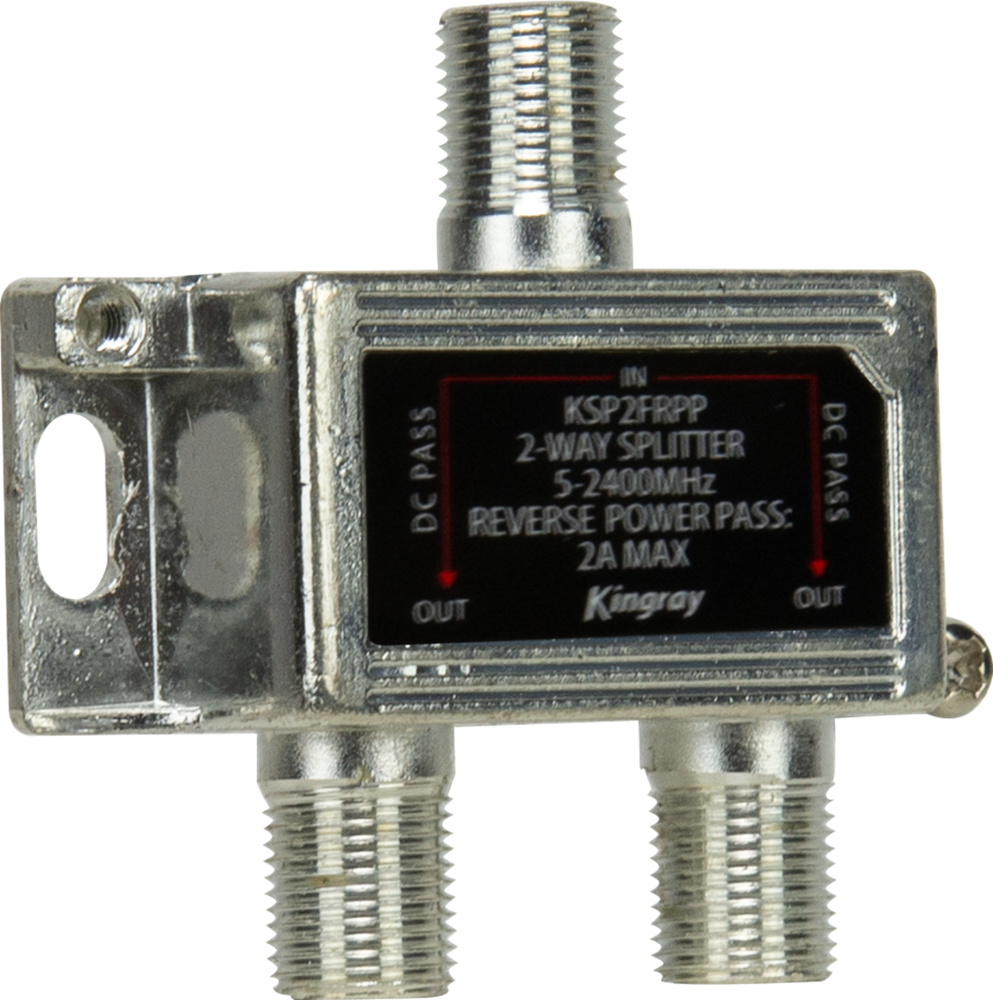

The Kingray 2‑Way Splitter 5–2400 MHz Reverse Power Pass is a precision‑engineered RF signal splitter designed to divide a single coaxial input signal into two outputs while preserving high signal integrity across a wide frequency range. Featuring Reverse Power Pass, this splitter allows DC power to be passed only in the reverse direction (from output ports back to the input), making it ideal for systems where power must be supplied to devices such as masthead amplifiers or remote amplifiers at the antenna end. Rated for up to 30 V DC at 2 A, it handles modest DC feed requirements without compromising RF performance. Built with shielded metal housing and high‑quality F‑type connectors, this splitter delivers low insertion loss, strong shielding, and reliable performance in residential, commercial, and broadcasting environments.
Key Features
- Wide Frequency Range: 5–2400 MHz supports VHF, UHF, digital TV, satellite IF, and broadband signals
- 2‑Way Split: Splits one input into two output ports
- Reverse Power Pass: DC power passes from outputs back to the input port only
- High DC Rating: Up to 30 V DC and 2 A for powering remote devices
- Low Insertion Loss: Ensures minimal signal degradation across outputs
- High Shielding: Reduces RF interference and signal leakage
- Standard F‑Type Connectors: Secure, threaded connections
- Robust Housing: Die‑cast metal for durability and outdoor suitability
Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | 1‑in, 2‑out RF splitter |
| Frequency Range | 5 MHz – 2400 MHz |
| Impedance | 75 Ω |
| Connector Type | F‑Type female |
| Insertion Loss | ~3.5–4.5 dB (typical, frequency dependent) |
| Return Loss | ≥ 10 dB |
| Power Pass | Reverse power pass (outputs → input) |
| DC Power Rating | 30 V DC, 2 A max |
| Shielding | ≥ 80 dB |
| Housing Material | Die‑cast aluminium |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (approx.) | 90 mm × 60 mm × 25 mm |
| Weight (approx.) | 120 g |
| Compliance | RoHS compliant (where applicable) |
Applications
The Kingray 2‑Way Splitter with Reverse Power Pass is ideal for:
- Residential & Commercial TV Distribution
- Satellite IF and Broadband Systems
- Antenna Signal Splitting
- Systems Requiring Remote DC Power Injection
- CCTV & RF Monitoring Installations
- Distribution to Two Receivers or Devices
- Feeding DC to Masthead or Inline Amplifiers
