3 Way Splitter All Ports Power Pass | Foxtel Approved
About this Product

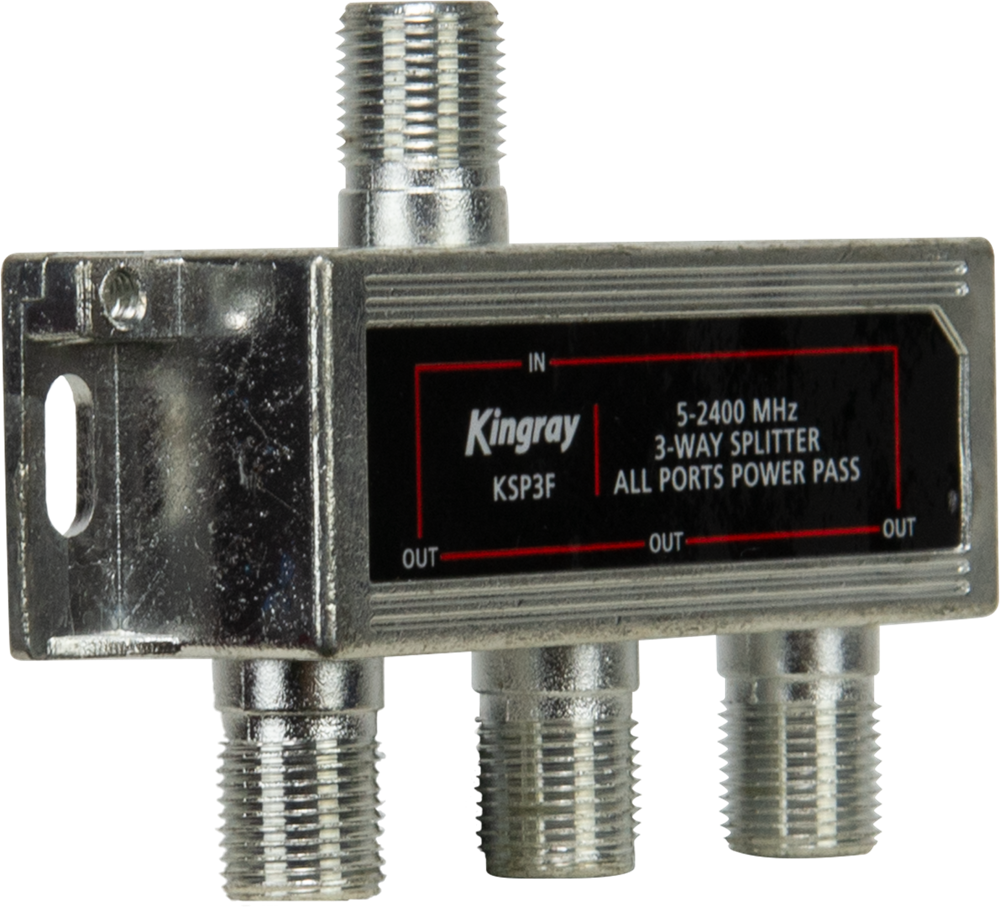

The Kingray 3‑Way Splitter All Ports Power Pass is a high‑quality RF signal splitter designed to distribute one coaxial input to three output ports with excellent performance and minimal signal loss. Engineered for both residential and commercial installations, this splitter supports full‑band frequency operation from VHF/UHF through satellite IF, making it suitable for TV, Foxtel, CATV, and broadband applications. With Power Pass enabled on all ports, DC power can pass through the splitter to power amplifiers, masthead units, or other remote devices. Its rugged, shielded metal housing and precision Foxtel Approved design ensure low interference, stable signal quality, and compliance with Australian Foxtel network standards. Standard threaded F‑type connectors provide secure, low‑loss cable connections for easy installation and long‑term reliability.
Key Features
- 3‑Way Split Configuration: One input into three outputs
- All Ports Power Pass: DC power passes through every port
- Foxtel Approved: Certified compliant for use with Foxtel networks in Australia
- Wide Frequency Range: Excellent performance across TV, satellite IF, and broadband frequencies
- Low Insertion Loss: Preserves signal strength across outputs
- High Shielding: Minimises RF interference and signal leakage
- F‑Type Connectors: Standard, threaded, low‑loss connectors
- Durable Metal Housing: Reliable for indoor or outdoor installations
Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | 1‑in, 3‑out RF splitter |
| Frequency Range | 5 MHz – 2400 MHz |
| Impedance | 75 Ω |
| Connector Type | F‑Type female |
| Insertion Loss | ~5.5–8.0 dB (typical, frequency dependent) |
| Return Loss | ≥ 10 dB |
| Power Pass | DC pass on all ports |
| Shielding | ≥ 85 dB |
| Housing Material | Die‑cast aluminium |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (approx.) | 100 mm × 70 mm × 28 mm |
| Weight (approx.) | 150 g |
| Compliance | Foxtel Approved, RoHS |
Applications
The Kingray 3‑Way Splitter is ideal for:
- Residential Foxtel and TV Distribution
- Multi‑TV Installations
- Satellite IF Distribution
- CATV and Broadband Splitting
- CCTV Signal Distribution
- RF Signal Sharing in Homes & Offices
- Powering Inline Amplifiers & Antenna Units
