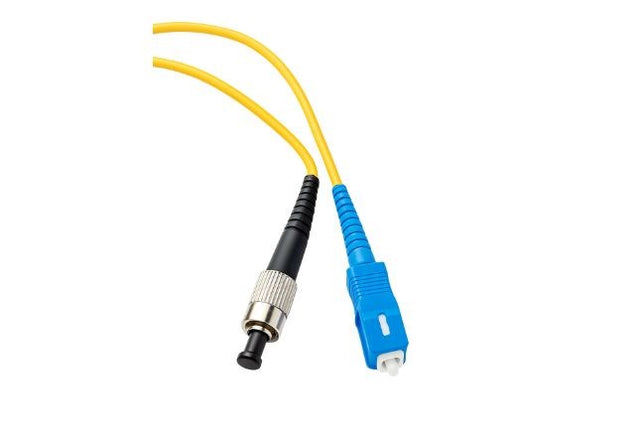

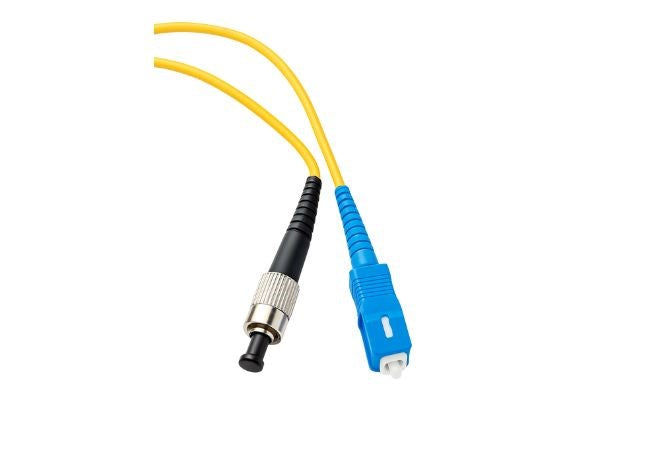

2M SC-FC OS1/OS2 Simplex Patch Lead

The 2 m SC-FC OS1/OS2 Simplex Patch Lead is a high-performance single-mode fibre optic cable designed for reliable connections in telecommunications and data networking environments. Featuring an SC connector on one end and an FC connector on the other, this patch lead provides secure, low-loss connectivity between fibre optic equipment, patch panels, and network devices.

Manufactured with 9/125 µm single-mode fibre and precision-polished ceramic ferrules, the cable delivers excellent signal integrity with low insertion loss and high return loss. The simplex design contains a single fibre strand, making it ideal for applications requiring one-way optical transmission.

With a durable LSZH or PVC jacket and a compact 2 mm outer diameter, this 2 m patch lead is flexible, easy to route, and suitable for structured cabling systems, telecommunications rooms, and data centre installations. Single-mode OS1/OS2 fibre is widely used for long-distance, high-bandwidth communication networks due to its low attenuation and high performance.

Key Features

• SC to FC connector configuration for versatile fibre connections
• Single-mode OS1/OS2 fibre for long-distance, high-speed transmission
• Simplex design with one fibre strand
• Low insertion loss and high return loss for reliable performance
• Precision ceramic ferrules for stable optical alignment
• Durable yellow LSZH/PVC jacket for protection and flexibility
• Compact 2 mm cable diameter for easy cable management
• Factory terminated and tested for quality assurance

Specifications

• Cable Length: 2 m
• Connector Type A: SC
• Connector Type B: FC
• Fibre Mode: Single-mode
• Fibre Type: OS1 / OS2
• Core / Cladding Diameter: 9 / 125 µm
• Cable Type: Simplex (1 fibre)
• Outer Diameter: approx. 2 mm
• Connector Ferrule: Ceramic
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50–60 dB (typical)
• Jacket Colour: Yellow
• Jacket Material: LSZH or PVC
• Operating Temperature: −20 °C to +70 °C

Applications

• Fibre optic patch panels and distribution frames
• Telecommunications networks
• Data centres and enterprise networks
• Fibre-to-the-premises (FTTP) installations
• Test equipment and optical instrumentation
• Network switches, media converters, and optical modules
