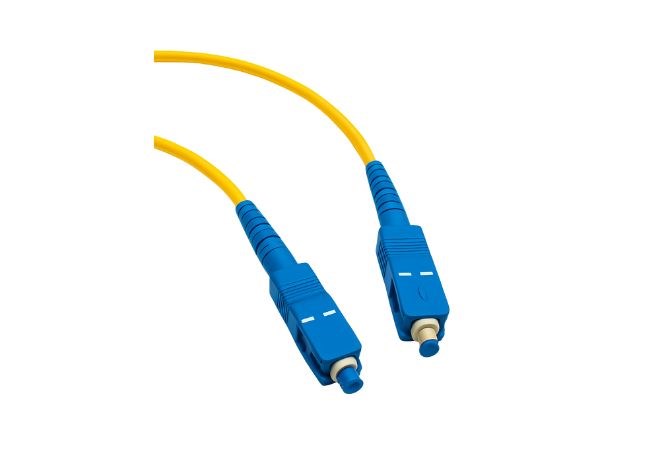

2M SC-SC OS1/OS2 Simplex Patch Lead

The 2 m SC–SC OS1/OS2 simplex fibre optic patch lead provides reliable single-mode connectivity for high-performance telecommunications and data networks. Fitted with SC connectors on both ends, it ensures low insertion loss, high return loss and stable signal transmission for short- to medium-distance single-mode links.

Key Features

• 2 m single-mode simplex fibre patch lead
• SC to SC connector configuration
• OS1/OS2 compliant for indoor and outdoor use
• Low insertion loss and high return loss
• Suitable for high-bandwidth single-mode transmission
• Durable jacket for long-term reliable performance

Specifications

• Fibre Type: Single-mode OS1/OS2
• Core / Cladding: 9/125 µm
• Length: 2 m
• Connector A: SC
• Connector B: SC
• Polish Type: UPC
• Cable Type: Simplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Wavelength: 1310 nm / 1550 nm
• Jacket Material: LSZH or PVC (application dependent)

Applications

• Telecommunications and carrier networks
• Data centres and server rooms
• Fibre distribution frames (ODF/FDF)
• Backbone and inter-equipment fibre links
• Test and measurement systems
