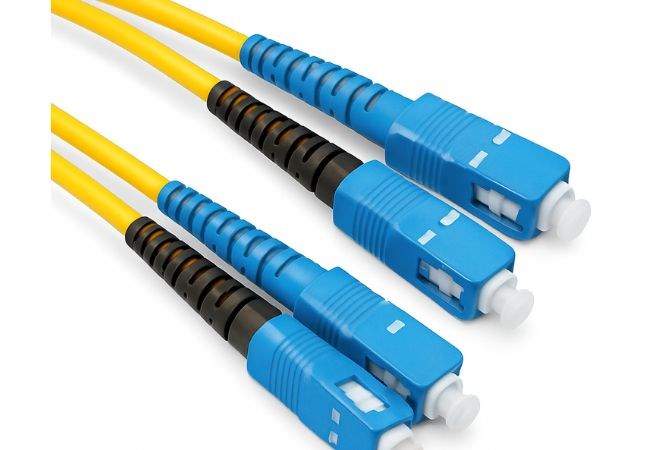

45M SC-SC OS1/OS2 Duplex Patch Lead
45M SC-SC OS1/OS2 Duplex Patch Lead is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
45M SC-SC OS1/OS2 Duplex Patch Lead
About this Product
The 45 metre SC-SC OS1/OS2 Duplex Patch Lead is a high-performance single-mode fibre optic cable designed for reliable, low-loss connectivity between network devices. Equipped with dual SC connectors on each end and compliant with OS1/OS2 fibre standards, this patch lead delivers superior signal integrity and minimal attenuation, making it ideal for long-distance single-mode applications.
Constructed with a robust duplex cable and precision-polished SC connectors, this lead provides stable optical performance in data centres, telecommunications, FTTH networks, and enterprise infrastructure. The duplex configuration supports bidirectional data transmission on two fibres, while the durable outer jacket protects the cable against bending and environmental factors. With its 40 m length, this patch lead is ideal for linking patch panels, switches, ODFs, and optical equipment across medium to large installations.
Key Features
- 45 metre single-mode duplex fibre cable
- SC-SC connectors — quick push/pull locking mechanism
- Compliant with OS1/OS2 optical fibre standards
- Low insertion loss and excellent return loss
- Duplex design for bidirectional communication
- Precision polished connector endfaces for high signal quality
- Robust outer jacket for mechanical protection
- Suitable for indoor cabling environments
- Compatible with telecom, data and LAN/WAN networks
Specifications
| Parameter | Value / Range |
|---|---|
| Cable Length | 45 m |
| Connector A | SC (Duplex) |
| Connector B | SC (Duplex) |
| Fibre Type | Single-mode OS1/OS2 |
| Core Diameter | 9 µm |
| Cladding Diameter | 125 µm |
| Wavelength Range | 1310 nm / 1550 nm |
| Insertion Loss (Typical) | ≤ 0.3 dB per mated pair |
| Return Loss | ≥ 50 dB |
| Cable Jacket | LSZH / PVC (selectable) |
| Operating Temperature | –20 °C to +70 °C |
| Minimum Bend Radius | ≥ 10 × cable diameter |
| Compliance | RoHS, IEC, ISO/IEC standards |
Applications
- Data centres and server rooms
- Telecommunications and ISP networks
- FTTH/OLT/ONT connections
- LAN/WAN optical backbone links
- Optical distribution frames (ODF)
- Optical test and measurement setups
- Patch panels and switch interconnections
