Cat6 Keystone Panel Jacks | Single | White

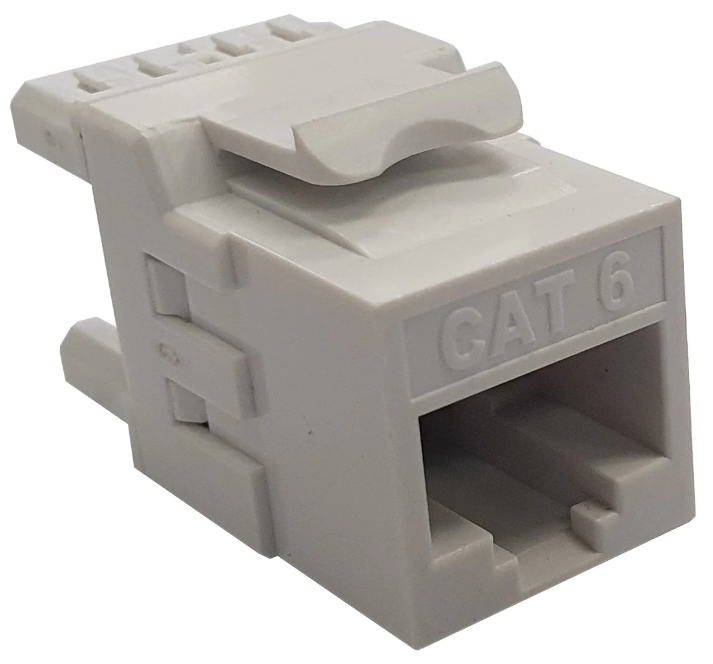

The Grove Cat6 Keystone Panel Jack (Single, White) is a high-performance RJ-45 insert designed to snap into Grove patch panels, wall plates, or surface boxes. Engineered for Gigabit Ethernet connectivity, it supports Cat6 channel performance and is built to integrate seamlessly into Grove’s Express or Elite series enclosures. The white finish offers a sleek aesthetic and easy colour coding in network installations. The housing is made from flame-retardant, high-impact polycarbonate, with a precision PCB trace layout and gold-plated contact surfaces to ensure reliable low-loss performance over its lifetime.

Key Features

• Category 6 performance for up to 1 Gbps (1000BASE-TX) data rates
• Snap-in keystone format (standard size) for panels, faceplates, or surface boxes
• White finish for visual consistency and port identification
• Dual IDC (insulation displacement contact) terminations, 110/IDC style
• Flame retardant, high-impact polycarbonate housing rated UL-94 V-0
• PCB material FR4, 1.6 mm thickness
• Phosphor bronze spring contacts plated with 50 µin gold over 70–100 µin nickel
• Accepts conductor sizes 22–24 AWG (solid)
• Greater than 150 re-terminations and over 750 mating cycles
• Contact resistance: ≤ 2.5 mΩ max; insulation resistance ≥ 500 MΩ min @ 100 Vdc
• Dielectric strength: 1000 V RMS @ 60 Hz for 1 min
• Operating temperature: –10 °C to +60 °C, storage: –40 °C to +60 °C
• Humidity: 10 %–90 % non-condensing
• Retention force: ≥ 50 N for 60s

Specifications

Applications

• Network patch and distribution panels in homes and offices
• Structured cabling installations in commercial buildings
• Data centre racks and telecom rooms
• Wall plates and surface mount boxes for endpoint network outlets
• Upgrading existing panels or infrastructure to Cat6 performance
• Colour-coded port identification or aesthetic matching in network installations
