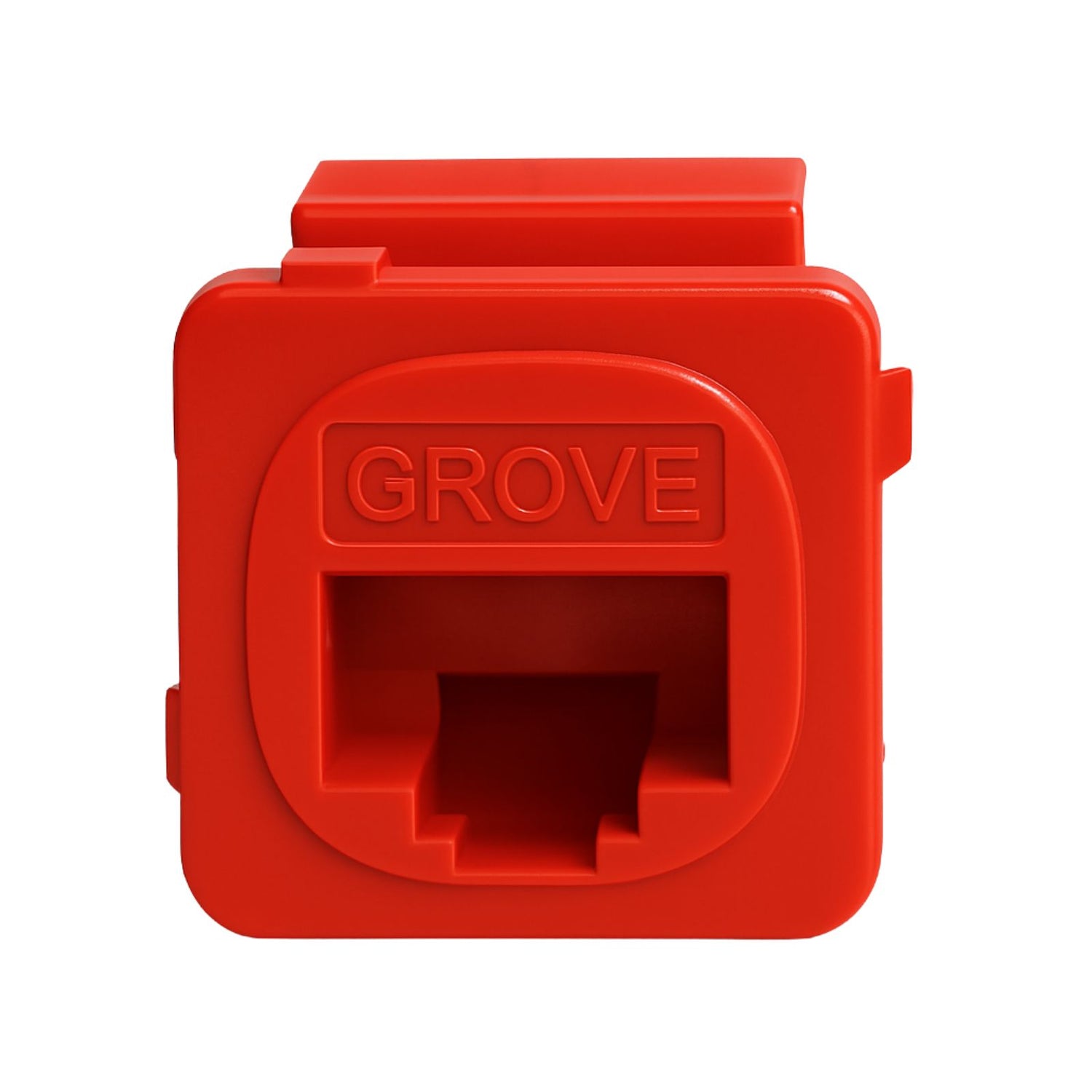

Cat6 Modular Jacks | Bag of 10 | Red

The Grove Cat6 Modular Jacks in red are engineered for structured cabling systems requiring consistent and compliant Category 6 performance. These 8-position, 8-contact (8P8C) keystone jacks support Gigabit Ethernet speeds up to 1 Gbps and are compatible with standard patch panels, wall plates, and surface mount enclosures. Designed to maintain signal integrity within high-speed networks, the jacks utilise a vertical 110/Krone-style termination that helps minimise crosstalk and return loss. Suitable for commercial, industrial, and residential installations, they provide stable connectivity for systems operating up to 250 MHz.

Key Features

• Supports Ethernet speeds up to 1 Gbps
• Category 6 performance with frequency support up to 250 MHz
• 8P8C keystone jack compatible with standard mounting hardware
• Vertical 110/Krone-style punch-down termination
• IDC terminals accept 23–26 AWG solid copper conductors
• Reduced crosstalk and improved return loss performance
• High-impact thermoplastic housing in red
• Compliant with ANSI/TIA-568 and ISO/IEC cabling standards

Specifications

• Category Rating: Cat6
• Data Speed: Up to 1 Gbps
• Connector Type: 8P8C keystone jack
• Termination: 110/Krone punch-down
• Conductor Compatibility: 23–26 AWG solid
• Frequency Support: Up to 250 MHz
• Housing Material: Thermoplastic
• Colour: Red
• Wiring Schemes: T568A and T568B
• Compliance: ANSI/TIA-568, ISO/IEC 11801, RoHS

Applications

• Structured cabling networks in commercial and industrial buildings
• Residential installations requiring Cat6 and 1 Gbps performance
• Use with patch panels, wall plates, and surface mount boxes
• Data, voice, and video over Ethernet up to Gigabit Ethernet (1 Gbps)
• IP CCTV, building automation, and general network cabling
