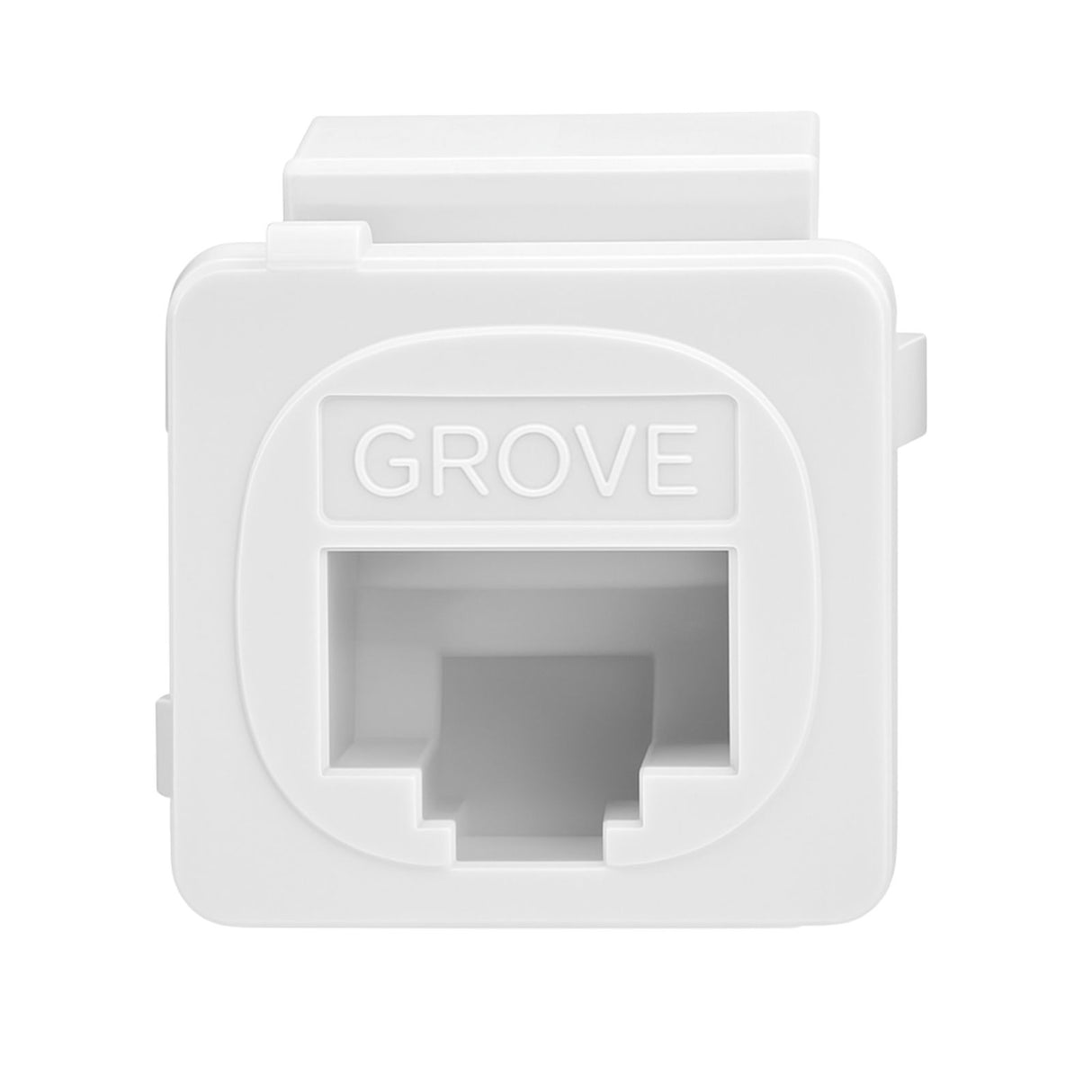

Cat6 Modular Jacks | Bag of 10 | White

The Grove Cat6 RJ45 UTP Modular Jacks – Bag of 10 (White) deliver professional, high-performance network connectivity for residential, commercial and enterprise structured cabling installations.

Specifically designed for use with the Grove 4 Pair Termination Tool, these modular jacks allow all four cable pairs to be terminated efficiently, helping installers achieve fast, consistent and professional results while reducing installation time.

Supporting network speeds up to 1Gbps and compatible Power over Ethernet (PoE) applications, these Cat6 modular jacks feature 180-degree cable entry, colour-coded IDC terminals and compatibility with 110 and KRONE termination methods.

Manufactured with durable polycarbonate housing and gold-plated RJ45 contacts, they accept 23–28 AWG solid cable and suit most Mech 30 Series faceplates.

Supplied in a convenient bag of 10, these premium white modular jacks are ideal for electricians, data cablers and network installers seeking reliable connectivity and efficient installation.

Key Features

• GROVE 4 PAIR TERMINATION TOOL COMPATIBLE – Designed for fast, consistent four-pair conductor termination and trimming.
• FAST, EFFICIENT INSTALLATION – Streamlines termination and helps reduce installation time.
• Cat6 Gigabit Performance – Supports network speeds up to 1Gbps.
• PoE Compatible – Suitable for compatible Power over Ethernet applications.
• Bag of 10 – Convenient packaging for multiple installations.
• Mech 30 Compatible – Suits most Mech 30 Series faceplates.
• 180° Cable Entry – Efficient cable routing and termination.
• 110 & KRONE IDC – Compatible with common termination methods.
• 23–28 AWG Support – Accepts solid cable conductors.
• Gold-Plated Contacts – Reliable signal transmission.
• Durable Construction – High-quality polycarbonate housing.
• Long Service Life – Rated for over 2,000 mating cycles.
• Professional White Finish – Ideal for residential and commercial installations.

Technical Specifications

Specification	Details
Brand	Grove
Product Type	Cat6 RJ45 UTP Modular Jack
Category	Cat6 UTP
Colour	White
Pack Quantity	10 Jacks
Recommended Tool	Grove 4 Pair Termination Tool
Connector	RJ45
Network Speed	Up to 1Gbps
PoE Compatibility	PoE
Termination Style	180° IDC
IDC Compatibility	110 and KRONE
Cable Compatibility	23–28 AWG Solid
Faceplate Compatibility	Most Mech 30 Series
Housing Material	Polycarbonate
RJ45 Contacts	Gold-Plated Phosphor Bronze
IDC Contacts	Nickel-Plated Phosphor Bronze
Current Rating	1.5 A Maximum
Dielectric Strength	1,000 V RMS for 1 Minute
Insulation Resistance	500 MΩ Minimum
Mating Cycles	Greater than 2,000
Face Dimensions	22.9 × 22.9 mm
Overall Depth	26.7 mm
Operating Temperature	-20°C to +70°C
Packaging	Bag of 10 – White

Applications

• Professional installations using the Grove 4 Pair Termination Tool
• Gigabit Ethernet networks up to 1Gbps
• PoE-enabled IP phones and compatible devices
• Residential and commercial data outlets
• Office and enterprise structured cabling
• CCTV and IP security installations
• Network switches and communications equipment
• Mech 30 Series wall plates and data outlets

Recommended Installation Tool

GROVE 4 PAIR TERMINATION TOOL – FAST. ACCURATE. PROFESSIONAL.

For efficient installation, pair these Cat6 Modular Jacks with the Grove 4 Pair Termination Tool.

Designed to seat and trim all four cable pairs in one operation, this dedicated tool helps deliver consistent terminations, reduces repetitive installation steps and provides a professional finish.

For best installation results, use the Grove 4 Pair Termination Tool with Grove Cat6 Modular Jacks.

Termination tool sold separately.

View Data Sheet
