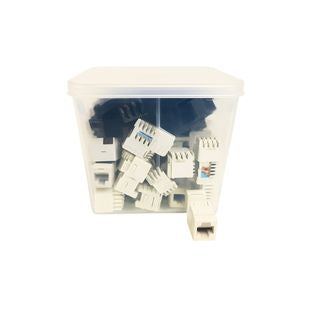

Cat6 Modular Jacks | White | Tub of 50 | IDC & Krone Tool Only

RELIABLE CONNECTIVITY | GIGABIT PERFORMANCE | PROFESSIONAL IDC TERMINATION

The Grove Cat6 RJ45 UTP Modular Jacks – White, Tub of 50 provide reliable, high-performance network connectivity for residential, commercial and enterprise structured cabling installations.

Designed for traditional IDC termination using 110 IDC or KRONE punch-down tools, these modular jacks offer installers a dependable and familiar termination method for professional network installations.

Supporting network speeds up to 1Gbps and compatible Power over Ethernet (PoE) applications, these Cat6 modular jacks feature 180-degree cable entry and colour-coded IDC terminals for accurate cable termination.

Manufactured with durable polycarbonate housing and gold-plated RJ45 contacts, they accommodate 23–28 AWG solid cable and suit most Mech 30 Series faceplates.

Supplied in a convenient tub of 50, these white modular jacks are ideal for electricians, data cablers and network installers undertaking multiple data outlet installations.

IMPORTANT: These modular jacks are designed for standard 110 IDC and KRONE punch-down tools only. They are not compatible with the Grove 4 Pair Termination Tool.

Key Features

• 110 IDC & KRONE TOOL COMPATIBLE – Designed for conventional punch-down termination.
• Traditional IDC Termination – Reliable conductor termination using standard installation tools.
• Cat6 Gigabit Performance – Supports network speeds up to 1Gbps.
• PoE Compatible – Suitable for compatible Power over Ethernet applications.
• Tub of 50 – Convenient bulk packaging for professional installations.
• White Finish – Clean, professional appearance for residential and commercial outlets.
• Mech 30 Compatible – Suits most Mech 30 Series faceplates.
• 180° Cable Entry – Convenient cable routing and termination.
• 23–28 AWG Support – Accepts solid cable conductors.
• Gold-Plated Contacts – Reliable network connectivity.
• Durable Construction – Polycarbonate housing.
• Long Service Life – Rated for over 2,000 mating cycles.
• Tool Specific – Not suitable for the Grove 4 Pair Termination Tool.

Technical Specifications

Specification	Details
Brand	Grove
Product Type	Cat6 RJ45 UTP Modular Jack
Category	Cat6 UTP
Colour	White
Pack Quantity	50 Jacks
Packaging	Tub of 50
Compatible Tools	110 IDC & KRONE Punch-Down Tools Only
Grove 4 Pair Tool	Not Compatible
Connector	RJ45
Network Speed	Up to 1Gbps
PoE Compatibility	PoE
Termination Style	180° IDC
Cable Compatibility	23–28 AWG Solid
Faceplate Compatibility	Most Mech 30 Series
Housing Material	Polycarbonate
RJ45 Contacts	Gold-Plated Phosphor Bronze
IDC Contacts	Nickel-Plated Phosphor Bronze
Current Rating	1.5 A Maximum
Dielectric Strength	1,000 V RMS for 1 Minute
Insulation Resistance	500 MΩ Minimum
Mating Cycles	Greater than 2,000
Face Dimensions	22.9 × 22.9 mm
Overall Depth	26.7 mm
Operating Temperature	-20°C to +70°C
Relative Humidity	10–90%, Non-Condensing

Applications

• Professional installations using 110 IDC or KRONE punch-down tools
• Gigabit Ethernet networks up to 1Gbps
• Residential and commercial data outlets
• Office and enterprise structured cabling
• PoE-enabled IP phones and compatible devices
• CCTV and IP security installations
• Network switches and communications equipment
• Education, healthcare and telecommunications
• Mech 30 Series wall plates and data outlets

Installation Tool Compatibility

110 IDC & KRONE TERMINATION – TRADITIONAL. RELIABLE. PROFESSIONAL.

These Grove Cat6 Modular Jacks are designed for conventional punch-down termination using standard 110 IDC or KRONE termination tools.

The IDC terminals allow individual conductors to be seated and terminated using the appropriate punch-down tool, providing secure connections for professional structured cabling installations.

Please Note: This Tub of 50 version is NOT compatible with the Grove 4 Pair Termination Tool.

Termination tools sold separately.
