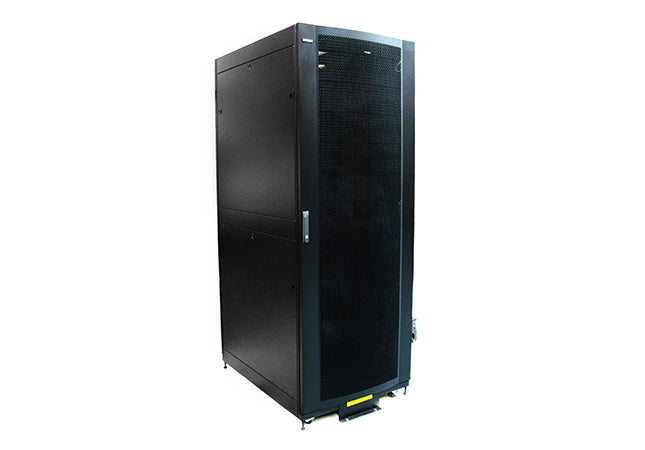

Elite 45RU Cabinet | 2175H x 600W x 1000D

**WA ONLY** Freight extra

ELITE PERFORMANCE | HEAVY-DUTY CONSTRUCTION | MAXIMUM NETWORK CAPACITY

The Grove Elite 45RU Free Standing Network Cabinet delivers exceptional strength, generous equipment capacity and advanced installation flexibility, providing a premium solution for housing and protecting network, server, data communications, telecommunications and security equipment.

Designed for demanding commercial and enterprise installations, this high-capacity cabinet features a 45RU rack capacity, 600 mm width and 1000 mm depth, offering substantial equipment accommodation within a space-efficient footprint.

ENGINEERED FOR STRENGTH AND RELIABILITY

Manufactured with a rigid 2 mm fully welded, powder-coated steel frame, the Grove Elite Cabinet provides outstanding structural integrity, supporting an impressive 1600 kg static load capacity and 1000 kg rolling load capacity.

This heavy-duty construction makes the cabinet an ideal choice for demanding network installations requiring reliable equipment support and long-term durability.

SUPERIOR AIRFLOW AND EQUIPMENT ACCESS

The high-airflow perforated steel front door and double perforated rear doors promote efficient ventilation throughout the cabinet, helping maintain suitable operating conditions for installed equipment.

Both front and rear doors are removable and lockable, with keyed-alike locks providing convenient and secure access.

The reversible lift-off front door allows left- or right-hand hinging without additional components, while the double rear doors provide practical access for equipment installation, cabling and ongoing maintenance.

INSTALLER-FRIENDLY DESIGN

The Grove Elite Cabinet incorporates tool-less split side panels with quick-release slide latches, allowing convenient access to installed equipment and cabling. Optional side-panel key locks provide additional security when required.

Tool-less adjustable vertical mounting rails simplify equipment positioning, while clearly labelled rack units assist with accurate installation and efficient rack organisation.

ADVANCED CABLE MANAGEMENT

Designed to support professional structured cabling installations, the cabinet features brush-strip data cable entry and separate power cable entry, helping maintain organised cable routing.

Integrated rack baying provisions allow multiple cabinets to be joined for larger network installations, while earthing points provide bonding continuity.

READY FOR PROFESSIONAL INSTALLATION

Supplied fully assembled with castor wheels and adjustable levelling feet, the Grove Elite Cabinet offers convenient positioning and stable installation.

Finished in professional RAL 9005 black, with RAL 7035 light grey available by special order, the Grove Elite 45RU Cabinet delivers a powerful combination of durability, accessibility and professional presentation.

Key Features

• 45RU Rack Capacity – High-capacity equipment housing for enterprise networks and communications infrastructure.
• 1600 kg Static Load Capacity – Heavy-duty support for demanding rack-mounted installations.
• 1000 kg Rolling Load Capacity – Robust construction for equipment movement on castors.
• 2 mm Fully Welded Steel Frame – Exceptional strength and structural integrity.
• High-Airflow Perforated Front Door – Promotes ventilation around installed equipment.
• Double Perforated Rear Doors – Improved rear access and airflow.
• Reversible Lift-Off Doors – Left- or right-hand hinging without additional components.
• Lockable Front and Rear Doors – Keyed alike for convenient security.
• Tool-Less Split Side Panels – Quick-release slide latches simplify servicing.
• Optional Side Panel Locks – Additional equipment security.
• Tool-Less Vertical Rail Adjustment – Flexible equipment positioning.
• Brush-Strip Data Cable Entry – Organised data cable routing.
• Dedicated Power Cable Entry – Separate routing for power cabling.
• Integrated Rack Baying Provisions – Supports multi-cabinet installations.
• Earthing Points – Provides bonding continuity.
• Rack-Unit Identification – Clearly labelled mounting positions.
• Castor Wheels and Levelling Feet – Convenient positioning and stable installation.
• 19-Inch Rack Compatibility – Supports standard rack-mounted equipment.
• Fully Assembled – Ready for professional equipment installation.
• Professional Black Finish – RAL 9005 powder-coated steel.

Technical Specifications

Specification	Details
Brand	Grove
Series	Elite
Product Code	RN-LWNCF45-610-MLA
Cabinet Type	Free Standing Network Cabinet
Rack Capacity	45RU
Height	2175 mm
Width	600 mm
Depth	1000 mm
Static Load Capacity	Up to 1600 kg
Rolling Load Capacity	Up to 1000 kg
Frame Construction	2 mm Fully Welded Steel
Frame Finish	Powder Coated
Front Door	Perforated Steel
Front Door Configuration	Removable, Reversible and Lockable
Rear Doors	Double Perforated Steel
Rear Door Configuration	Removable and Lockable
Door Security	Front and Rear Keyed Alike
Side Panels	Tool-Less Split Panels
Side Panel Access	Quick-Release Slide Latches
Optional Side Security	Key Locking
Vertical Rails	Tool-Less Adjustable
Cable Entry	Brush-Strip Data Entry and Dedicated Power Entry
Rack Baying	Integrated Provisions
Earthing	Integrated Earthing Points
Mobility	Castor Wheels Included
Levelling	Adjustable Levelling Feet
Rack Mounting	Standard 19-Inch
Standard Colour	RAL 9005 Black
Special Order Colour	RAL 7035 Light Grey
Supply Format	Fully Assembled

Applications

• Enterprise and commercial network infrastructure
• Data centres and server equipment installations
• Communications rooms and structured cabling systems
• Network switches, routers and patch panel installations
• Fibre optic distribution and termination equipment
• Security, CCTV and access-control systems
• Telecommunications infrastructure
• Audio Visual (AV) and MATV distribution systems
• Rack-mounted power distribution equipment
• High-density network installations
• Multi-cabinet infrastructure installations

Compatible Grove Elite Cabinet Accessories

COMPLETE YOUR ELITE CABINET | POWER, PROTECT & ORGANISE

Maximise the performance and functionality of your Grove Elite 45RU Cabinet with a comprehensive selection of professional rack accessories.

1RU Adjustable Shelves

Designed to provide secure support for equipment within the cabinet.

Product Code	Description
RN-LWCFB45-1.2-WM	1RU Adjustable Shelf – 450 mm Deep
RN-LWCFB60-1.2-WM	1RU Adjustable Shelf – 600 mm Deep
RN-LWCFB80-1.2-WM	1RU Adjustable Shelf – 800 mm Deep

Cantilever Shelves

Ideal for supporting smaller network devices and equipment that does not have standard rack-mounting brackets.

Product Code	Description
RN-LWCS-1U200	1RU Cantilever Shelf – 200 mm Deep
RN-LWCS-1U250	1RU Cantilever Shelf – 250 mm Deep
RN-LWCS-2U300	2RU Cantilever Shelf – 300 mm Deep
RN-LWCS-2U350	2RU Cantilever Shelf – 350 mm Deep
RN-LWCS-2U450	2RU Cantilever Shelf – 450 mm Deep

Horizontal Cable Management

Maintain organised patch leads and professional cable routing with Grove's range of 1RU cable managers.

Product Code	Description
RP-MTD08-WP	1RU Metal Cable Manager – 4 Rings
RP-MTD06	1RU Metal Cable Manager – 5 Rings
RP-MTE01	1RU Metal Cable Manager – Brush Panel
RP-MTD07	1RU Metal Cable Manager – Covered
RP-MTD09	1RU Plastic Cable Manager – Hinged Cover

Additional Cable Management Option

RP-LWGRO-DZ-LXH-100 – Vertical Cable Management Fingers

Designed to organise and support high-density patch leads along vertical equipment rails.

Important: The datasheet specifies these fingers for 800 mm wide Grove Elite cabinets. They are not confirmed as compatible with this 600 mm wide model.

Horizontal Power Distribution

PB-GN7410A – Grove 1RU Horizontal Power Rail | 11 Way | 10 A

A convenient rack-mounted power distribution solution for connected network and communications equipment.

ATEN Vertical Power Distribution

MAXIMISE RACK SPACE WITH 0U VERTICAL POWER DISTRIBUTION

The Grove Elite Cabinet range supports vertical power distribution options, allowing rack-mounted equipment to retain valuable rack units.

Product Code	Description
PB-PE1124MG	ATEN 0U 24 Port PDU – 240 V, 10 A
PB-PE1224MG	ATEN 0U 24 Port PDU – 240 V, 15 A
PB-PE1224MU	ATEN 0U 24 Port PDU – 240 V, 20 A
PB-PE1321MU	ATEN 0U 21 Port PDU – 240 V, 30 A
PB-PE1324MU	ATEN 0U 24 Port PDU – 240 V, 30 A
PB-PE1324MU2	ATEN 0U 24 Port PDU – 240 V, 30 A

Select the appropriate PDU according to equipment requirements, outlet configuration and available electrical supply.

Blanking Panels and Mounting Hardware

Product Code	Description
RN-GNLWBP1	1RU Blanking Panel
RN-GNLWBP2	2RU Blanking Panel
RN-GNLWBP3	3RU Blanking Panel
RN-GNLWBP4	4RU Blanking Panel
RN-XX0001	M6 Cage Nuts and Bolts – Pack of 50

Accessories are sold separately. Confirm mounting clearances, equipment depth and electrical requirements before ordering.

Why Choose Grove Elite Network Cabinets?

ENGINEERED FOR STRENGTH. DESIGNED FOR ACCESS. BUILT FOR PERFORMANCE.

The Grove Elite Cabinet range delivers premium network infrastructure solutions, combining heavy-duty construction, exceptional load capacity and installer-friendly functionality.

With its 45RU capacity, 1600 kg static load rating, 2 mm fully welded steel frame, high-airflow double rear doors and advanced cable management provisions, the Grove Elite 45RU Cabinet provides a dependable foundation for demanding professional installations.

Whether building an enterprise communications room, installing network switches and fibre distribution equipment or expanding a server infrastructure installation, the Grove Elite Cabinet delivers the strength, flexibility and professional finish required for modern network environments.

PLEASE NOTE: Freight is additional and is not included in the advertised price. Freight costs will be calculated and quoted separately based on the delivery location and order requirements.

View Data Sheet
