Elite 45RU Cabinet | 2175H x 800W x 1000D
Elite 45RU Cabinet | 2175H x 800W x 1000D is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too

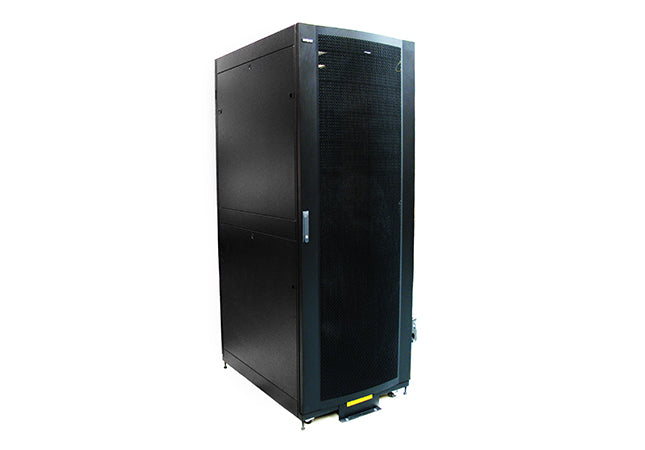

Elite 45RU Cabinet | 2175H x 800W x 1000D
About this Product
**WA ONLY** Freight extra
ELITE PERFORMANCE | HEAVY-DUTY CONSTRUCTION | SUPERIOR CABLE MANAGEMENT
The Grove Elite 45RU Free Standing Network Cabinet delivers exceptional strength, generous equipment capacity and advanced cable management capabilities, providing a premium solution for housing and protecting network, server, data communications, telecommunications and security equipment.
Designed for demanding commercial and enterprise installations, this high-capacity cabinet features a 45RU rack capacity, generous 800 mm width and 1000 mm depth, providing substantial equipment accommodation and additional space for organised vertical cable management.
ENGINEERED FOR STRENGTH AND RELIABILITY
The Grove Elite range features a rigid 2 mm fully welded, powder-coated steel frame, engineered to provide outstanding structural integrity and dependable support for demanding rack-mounted installations.
The Elite cabinet design supports a 1600 kg static load capacity and 1000 kg rolling load capacity, making it a robust solution for high-density network and communications infrastructure.
SUPERIOR AIRFLOW AND EQUIPMENT ACCESS
The high-airflow perforated steel front door and double perforated rear doors promote efficient ventilation throughout the cabinet, helping maintain suitable operating conditions for installed equipment.
Both front and rear doors are removable and lockable, with keyed-alike locks providing convenient and secure access.
The reversible lift-off front door allows left- or right-hand hinging without additional components, while the double rear doors provide practical access for equipment installation, cabling and ongoing maintenance.
INSTALLER-FRIENDLY DESIGN
The Grove Elite Cabinet incorporates tool-less split side panels with quick-release slide latches, allowing convenient access to installed equipment and cabling.
Optional side-panel key locks provide additional security when required.
Tool-less adjustable vertical mounting rails simplify equipment positioning, while clearly labelled rack units assist with accurate installation and efficient rack organisation.
ADVANCED VERTICAL CABLE MANAGEMENT
The generous 800 mm cabinet width provides additional space for organised vertical cable routing, helping installers manage high-density patch leads and network cabling.
Compatible Grove Vertical Cable Management Fingers can be installed alongside the equipment rails to support and organise patch leads, improving accessibility and maintaining a clean, professional installation.
The cabinet also features brush-strip data cable entry and separate power cable entry, helping maintain organised cable routing throughout the enclosure.
Integrated rack baying provisions support multi-cabinet installations, while earthing points provide bonding continuity.
READY FOR PROFESSIONAL INSTALLATION
Supplied fully assembled with castor wheels and adjustable levelling feet, the Grove Elite Cabinet offers convenient positioning and stable installation.
Finished in professional RAL 9005 black, with RAL 7035 light grey available by special order, the Grove Elite 45RU Cabinet delivers a powerful combination of strength, accessibility and professional presentation.
Key Features
- 45RU Rack Capacity – High-capacity equipment housing for enterprise networks and communications infrastructure.
- 800 mm Wide Cabinet – Additional space for vertical cable management and equipment organisation.
- 1000 mm Cabinet Depth – Generous accommodation for deeper rack-mounted equipment.
- 1600 kg Static Load Capacity – Heavy-duty equipment support.
- 1000 kg Rolling Load Capacity – Robust construction for equipment movement on castors.
- 2 mm Fully Welded Steel Frame – Exceptional strength and structural integrity.
- High-Airflow Perforated Front Door – Promotes ventilation around installed equipment.
- Double Perforated Rear Doors – Improved rear access and airflow.
- Reversible Lift-Off Doors – Left- or right-hand hinging without additional components.
- Lockable Front and Rear Doors – Keyed alike for convenient security.
- Tool-Less Split Side Panels – Quick-release slide latches simplify servicing.
- Optional Side Panel Locks – Additional equipment security.
- Tool-Less Vertical Rail Adjustment – Flexible equipment positioning.
- Compatible Vertical Cable Management Fingers – Supports organised high-density patch lead routing.
- Brush-Strip Data Cable Entry – Organised data cable routing.
- Dedicated Power Cable Entry – Separate routing for power cabling.
- Integrated Rack Baying Provisions – Supports multi-cabinet installations.
- Earthing Points – Provides bonding continuity.
- Rack-Unit Identification – Clearly labelled mounting positions.
- Castor Wheels and Levelling Feet – Convenient positioning and stable installation.
- 19-Inch Rack Compatibility – Supports standard rack-mounted equipment.
- Fully Assembled – Ready for professional equipment installation.
- Professional Black Finish – RAL 9005 powder-coated steel.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Grove |
| Series | Elite |
| Product Code | RN-LWNCF45-810-MLA |
| Cabinet Type | Free Standing Network Cabinet |
| Rack Capacity | 45RU |
| Height | 2175 mm |
| Width | 800 mm |
| Depth | 1000 mm |
| Static Load Capacity | 1600 kg – Based on Elite Range |
| Rolling Load Capacity | 1000 kg – Based on Elite Range |
| Frame Construction | 2 mm Fully Welded Steel |
| Frame Finish | Powder Coated |
| Front Door | Perforated Steel |
| Front Door Configuration | Removable, Reversible and Lockable |
| Rear Doors | Double Perforated Steel |
| Rear Door Configuration | Removable and Lockable |
| Door Security | Front and Rear Keyed Alike |
| Side Panels | Tool-Less Split Panels |
| Side Panel Access | Quick-Release Slide Latches |
| Optional Side Security | Key Locking |
| Vertical Rails | Tool-Less Adjustable |
| Cable Management | Compatible with Vertical Cable Management Fingers |
| Cable Entry | Brush-Strip Data Entry and Dedicated Power Entry |
| Rack Baying | Integrated Provisions |
| Earthing | Integrated Earthing Points |
| Mobility | Castor Wheels Included |
| Levelling | Adjustable Levelling Feet |
| Rack Mounting | Standard 19-Inch |
| Standard Colour | RAL 9005 Black |
| Special Order Colour | RAL 7035 Light Grey |
| Supply Format | Fully Assembled |
| Alternative Supply | Flat Pack, Subject to Minimum Order Quantity |
Applications
- Enterprise and commercial network infrastructure
- Data centres and server equipment installations
- Communications rooms and structured cabling systems
- High-density network switches and patch panel installations
- Fibre optic distribution and termination equipment
- Security, CCTV and access-control systems
- Telecommunications infrastructure
- Audio Visual (AV) and MATV distribution systems
- Rack-mounted power distribution equipment
- High-density patch lead and vertical cable management
- Multi-cabinet infrastructure installations
Compatible Grove Elite Cabinet Accessories
COMPLETE YOUR ELITE CABINET | POWER, PROTECT & ORGANISE
Maximise the performance and functionality of your Grove Elite 45RU Cabinet with professional rack accessories designed to enhance equipment support, power distribution and cable management.
1RU Adjustable Shelves
| Product Code | Description |
|---|---|
| RN-LWCFB45-1.2-WM | 1RU Adjustable Shelf – 450 mm Deep |
| RN-LWCFB60-1.2-WM | 1RU Adjustable Shelf – 600 mm Deep |
| RN-LWCFB80-1.2-WM | 1RU Adjustable Shelf – 800 mm Deep |
Cantilever Shelves
| Product Code | Description |
|---|---|
| RN-LWCS-1U200 | 1RU Cantilever Shelf – 200 mm Deep |
| RN-LWCS-1U250 | 1RU Cantilever Shelf – 250 mm Deep |
| RN-LWCS-2U300 | 2RU Cantilever Shelf – 300 mm Deep |
| RN-LWCS-2U350 | 2RU Cantilever Shelf – 350 mm Deep |
| RN-LWCS-2U450 | 2RU Cantilever Shelf – 450 mm Deep |
Vertical Cable Management Fingers
RP-LWGRO-DZ-LXH-100 – Grove Vertical Cable Management Fingers
Designed specifically for 800 mm wide Grove Elite Cabinets, these integrated cable management fingers provide a professional solution for organising high-density patch leads along the vertical equipment rails.
Key Benefits:
- Supports organised vertical patch lead routing.
- Helps maintain a clean and professional cabinet installation.
- Provides convenient access for maintenance and cable changes.
- Ideal for high-density patch panel installations.
- Designed for 800 mm wide Grove Elite Cabinets.
Horizontal Cable Management
| Product Code | Description |
|---|---|
| RP-MTD08-WP | 1RU Metal Cable Manager – 4 Rings |
| RP-MTD06 | 1RU Metal Cable Manager – 5 Rings |
| RP-MTE01 | 1RU Metal Cable Manager – Brush Panel |
| RP-MTD07 | 1RU Metal Cable Manager – Covered |
| RP-MTD09 | 1RU Plastic Cable Manager – Hinged Cover |
Horizontal Power Distribution
PB-GN7410A – Grove 1RU Horizontal Power Rail | 11 Way | 10 A
A convenient rack-mounted power distribution solution for connected network and communications equipment.
ATEN Vertical Power Distribution
MAXIMISE RACK SPACE WITH 0U VERTICAL POWER DISTRIBUTION
The Grove Elite Cabinet range supports vertical power distribution options, allowing rack-mounted equipment to retain valuable rack units.
| Product Code | Description |
|---|---|
| PB-PE1124MG | ATEN 0U 24 Port PDU – 240 V, 10 A |
| PB-PE1224MG | ATEN 0U 24 Port PDU – 240 V, 15 A |
| PB-PE1224MU | ATEN 0U 24 Port PDU – 240 V, 20 A |
| PB-PE1321MU | ATEN 0U 21 Port PDU – 240 V, 30 A |
| PB-PE1324MU | ATEN 0U 24 Port PDU – 240 V, 30 A |
| PB-PE1324MU2 | ATEN 0U 24 Port PDU – 240 V, 30 A |
Vertical 0U mounting preserves valuable rack space for network equipment. Select the appropriate PDU according to outlet configuration, electrical load and site power requirements.
Blanking Panels and Mounting Hardware
| Product Code | Description |
|---|---|
| RN-GNLWBP1 | 1RU Blanking Panel |
| RN-GNLWBP2 | 2RU Blanking Panel |
| RN-GNLWBP3 | 3RU Blanking Panel |
| RN-GNLWBP4 | 4RU Blanking Panel |
| RN-XX0001 | M6 Cage Nuts and Bolts – Pack of 50 |
Accessories sold separately. Confirm equipment depth, rail spacing, PDU mounting clearances and electrical requirements before ordering.
Why Choose Grove Elite Network Cabinets?
ENGINEERED FOR STRENGTH. DESIGNED FOR ACCESS. BUILT FOR PERFORMANCE.
The Grove Elite Cabinet range combines heavy-duty construction, exceptional load capacity and advanced cable management capabilities to deliver premium network infrastructure solutions.
With its 45RU capacity, 800 mm width, 1000 mm depth, high-airflow double rear doors and tool-less access features, the Grove Elite Cabinet provides the space, strength and installation flexibility required for demanding professional environments.
The additional cabinet width allows for vertical cable management fingers, helping installers achieve a cleaner, more organised and serviceable network installation.
Whether building an enterprise communications room, installing high-density structured cabling or expanding server infrastructure, the Grove Elite 45RU Cabinet delivers the performance and professional presentation required for modern network environments.
PLEASE NOTE: Freight is additional and is not included in the advertised price. Freight costs will be calculated and quoted separately based on the delivery location and order requirements.
