Elite 45RU Cabinet | 2175H x 800W x 1200D | Grey
Elite 45RU Cabinet | 2175H x 800W x 1200D | Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too

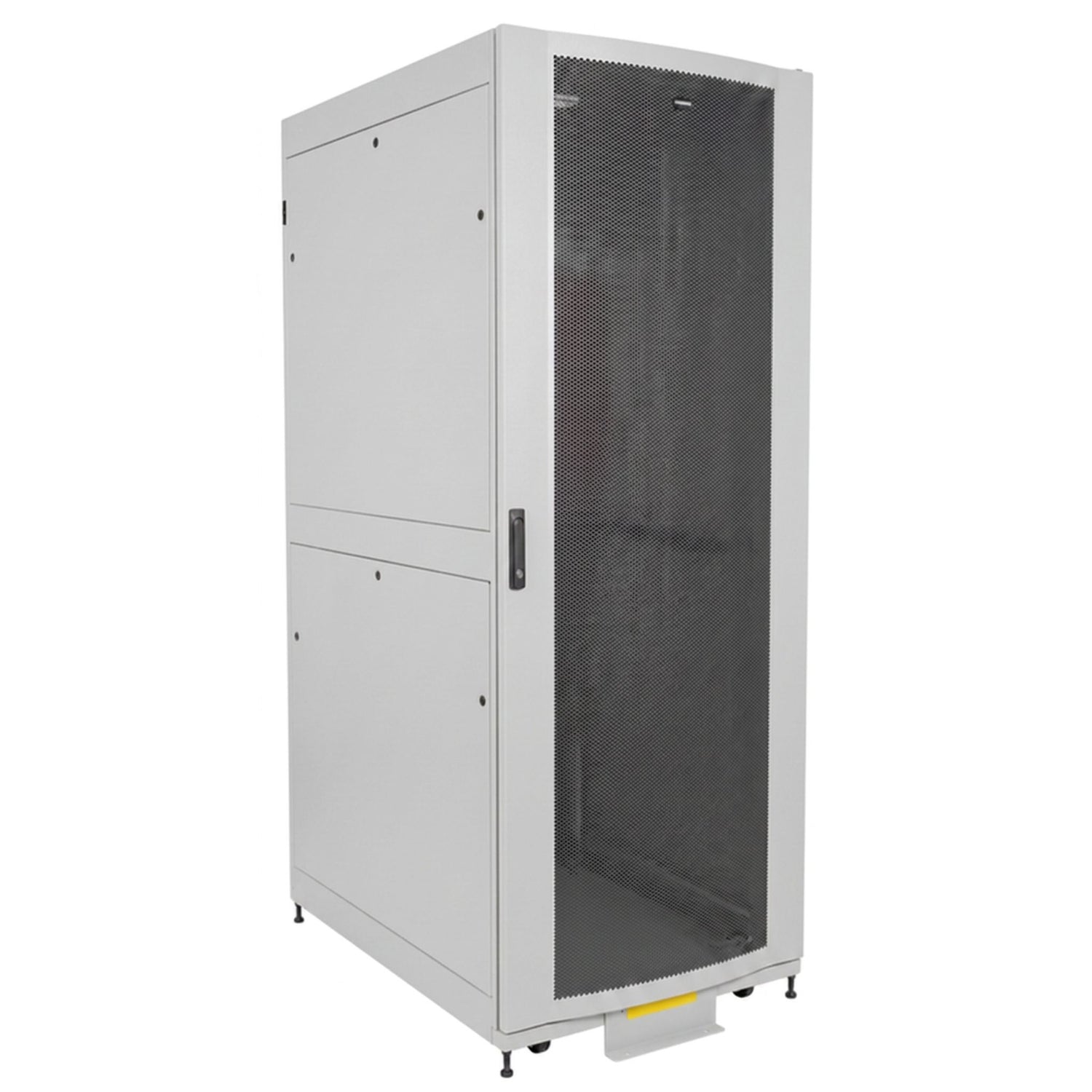

Elite 45RU Cabinet | 2175H x 800W x 1200D | Grey
About this Product
**WA ONLY** Freight extra
ELITE PERFORMANCE | MAXIMUM CAPACITY | SUPERIOR CABLE MANAGEMENT
The Grove Elite 45RU Free Standing Network Cabinet delivers exceptional strength, generous equipment capacity and advanced installation flexibility, providing a premium solution for housing and protecting network, server, data communications, telecommunications and security equipment.
Designed for demanding commercial and enterprise installations, this high-capacity cabinet features a 45RU rack capacity, generous 800 mm width and extra-deep 1200 mm configuration, providing substantial accommodation for rack-mounted equipment, high-density structured cabling and professional cable management.
ENGINEERED FOR STRENGTH AND RELIABILITY
Manufactured with a rigid 2 mm fully welded, powder-coated steel frame, the Grove Elite Cabinet delivers outstanding structural integrity, supporting an impressive 1600 kg static load capacity and 1000 kg rolling load capacity.
This heavy-duty construction makes the cabinet an ideal choice for demanding network installations requiring reliable equipment support and long-term durability.
SUPERIOR AIRFLOW AND EQUIPMENT ACCESS
The high-airflow perforated steel front door and double perforated rear doors promote efficient ventilation throughout the cabinet, helping maintain suitable operating conditions for installed equipment.
Both front and rear doors are removable and lockable, with keyed-alike locks providing convenient and secure access.
The reversible lift-off front door allows left- or right-hand hinging without additional components, while the double rear doors provide practical access for equipment installation, cabling and ongoing maintenance.
INSTALLER-FRIENDLY DESIGN
The Grove Elite Cabinet incorporates tool-less split side panels with quick-release slide latches, allowing convenient access to installed equipment and cabling. Optional side-panel key locks provide additional security when required.
Tool-less adjustable vertical mounting rails simplify equipment positioning, while clearly labelled rack units assist with accurate installation and efficient rack organisation.
ADVANCED CABLE MANAGEMENT
The generous 800 mm cabinet width provides additional room for vertical cable management, while the 1200 mm depth offers extra space for deeper equipment and rear cable routing.
Compatible Grove Vertical Cable Management Fingers help organise and support high-density patch leads along the vertical equipment rails, creating a cleaner and more accessible installation.
The cabinet also features brush-strip data cable entry and dedicated power cable entry, helping maintain organised separation of cable routes.
Integrated rack baying provisions support multi-cabinet installations, while earthing points provide bonding continuity.
READY FOR PROFESSIONAL INSTALLATION
Supplied fully assembled with castor wheels and adjustable levelling feet, the Grove Elite Cabinet offers convenient positioning and stable installation.
Finished in professional RAL 7035 light grey, with RAL 9005 black available by special order, this cabinet combines premium construction, generous equipment capacity and installer-friendly features.
The Grove Elite 45RU Cabinet is the ideal foundation for demanding network infrastructure where strength, space, accessibility and professional presentation are essential.
Key Features
- 45RU Rack Capacity – High-capacity housing for enterprise networks and communications infrastructure.
- 800 mm Wide Cabinet – Additional space for vertical cable management and equipment organisation.
- 1200 mm Cabinet Depth – Generous accommodation for deeper rack-mounted equipment and rear cabling.
- 1600 kg Static Load Capacity – Heavy-duty support for demanding installations.
- 1000 kg Rolling Load Capacity – Robust construction for equipment movement on castors.
- 2 mm Fully Welded Steel Frame – Exceptional strength and structural integrity.
- High-Airflow Perforated Front Door – Promotes ventilation around installed equipment.
- Double Perforated Rear Doors – Convenient rear access and airflow.
- Reversible Lift-Off Front Door – Left- or right-hand hinging without additional components.
- Lockable Front and Rear Doors – Keyed alike for convenient security.
- Tool-Less Split Side Panels – Quick-release slide latches simplify servicing.
- Optional Side Panel Locks – Additional equipment security.
- Tool-Less Vertical Rail Adjustment – Flexible equipment positioning.
- Compatible Vertical Cable Management Fingers – Supports organised high-density patch lead routing.
- Brush-Strip Data Cable Entry – Organised data cable routing.
- Dedicated Power Cable Entry – Separate routing for power cabling.
- Integrated Rack Baying Provisions – Supports multi-cabinet installations.
- Earthing Points – Provides bonding continuity.
- Rack-Unit Identification – Clearly labelled mounting positions.
- Castor Wheels and Levelling Feet – Convenient positioning and stable installation.
- 19-Inch Rack Compatibility – Supports standard rack-mounted equipment.
- Fully Assembled – Ready for professional equipment installation.
- Light Grey Finish – RAL 7035 powder-coated steel.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Grove |
| Series | Elite |
| Product Code | RN-LWNCF45-812-MLA |
| Cabinet Type | Free Standing Network Cabinet |
| Rack Capacity | 45RU |
| Height | 2175 mm |
| Width | 800 mm |
| Depth | 1200 mm |
| Static Load Capacity | Up to 1600 kg |
| Rolling Load Capacity | Up to 1000 kg |
| Frame Construction | 2 mm Fully Welded Steel |
| Frame Finish | Powder Coated |
| Front Door | Perforated Steel |
| Front Door Configuration | Removable, Reversible and Lockable |
| Rear Doors | Double Perforated Steel |
| Rear Door Configuration | Removable and Lockable |
| Door Security | Front and Rear Keyed Alike |
| Side Panels | Tool-Less Split Panels |
| Side Panel Access | Quick-Release Slide Latches |
| Optional Side Security | Key Locking |
| Vertical Rails | Tool-Less Adjustable |
| Cable Management | Compatible with Vertical Cable Management Fingers |
| Cable Entry | Brush-Strip Data Entry and Dedicated Power Entry |
| Rack Baying | Integrated Provisions |
| Earthing | Integrated Earthing Points |
| Mobility | Castor Wheels Included |
| Levelling | Adjustable Levelling Feet |
| Rack Mounting | Standard 19-Inch |
| Standard Colour | RAL 7035 Light Grey |
| Special Order Colour | RAL 9005 Black |
| Supply Format | Fully Assembled |
| Alternative Supply | Flat Pack, Subject to Minimum Order Quantity |
Applications
- Enterprise and commercial network infrastructure
- Data centres and server equipment installations
- Communications rooms and structured cabling systems
- High-density network switches and patch panel installations
- Deep rack-mounted network and telecommunications equipment
- Fibre optic distribution and termination equipment
- Security, CCTV and access-control systems
- Audio Visual (AV) and MATV distribution systems
- Rack-mounted power distribution equipment
- High-density patch lead and vertical cable management
- Multi-cabinet infrastructure installations
Compatible Grove Elite Cabinet Accessories
COMPLETE YOUR ELITE CABINET | POWER, PROTECT & ORGANISE
Maximise the functionality of your Grove Elite 45RU Cabinet with professional rack accessories designed to enhance equipment support, power distribution and cable management.
1RU Adjustable Shelves
| Product Code | Description |
|---|---|
| RN-LWCFB45-1.2-WM | 1RU Adjustable Shelf – 450 mm Deep |
| RN-LWCFB60-1.2-WM | 1RU Adjustable Shelf – 600 mm Deep |
| RN-LWCFB80-1.2-WM | 1RU Adjustable Shelf – 800 mm Deep |
Designed to mount directly onto standard 19-inch equipment rails, providing reliable support for rack-mounted equipment.
Cantilever Shelves
| Product Code | Description |
|---|---|
| RN-LWCS-1U200 | 1RU Cantilever Shelf – 200 mm Deep |
| RN-LWCS-1U250 | 1RU Cantilever Shelf – 250 mm Deep |
| RN-LWCS-2U300 | 2RU Cantilever Shelf – 300 mm Deep |
| RN-LWCS-2U350 | 2RU Cantilever Shelf – 350 mm Deep |
| RN-LWCS-2U450 | 2RU Cantilever Shelf – 450 mm Deep |
Ideal for supporting compact network devices and communications equipment.
Vertical Cable Management Fingers
RP-LWGRO-DZ-LXH-100 – Grove Vertical Cable Management Fingers
Designed specifically for 800 mm wide Grove Elite Cabinets, these cable management fingers provide a practical solution for organising high-density patch leads along the vertical equipment rails.
Key Benefits:
- Supports organised vertical patch lead routing.
- Helps reduce cable congestion.
- Improves accessibility for maintenance and cable changes.
- Creates a clean, professional cabinet installation.
- Ideal for high-density patch panel installations.
Horizontal Cable Management
| Product Code | Description |
|---|---|
| RP-MTD08-WP | 1RU Metal Cable Manager – 4 Rings |
| RP-MTD06 | 1RU Metal Cable Manager – 5 Rings |
| RP-MTE01 | 1RU Metal Cable Manager – Brush Panel |
| RP-MTD07 | 1RU Metal Cable Manager – Covered |
| RP-MTD09 | 1RU Plastic Cable Manager – Hinged Cover |
Horizontal Power Distribution
PB-GN7410A – Grove 1RU Horizontal Power Rail | 11 Way | 10 A
A convenient rack-mounted power distribution solution for connected network and communications equipment.
ATEN Vertical Power Distribution
MAXIMISE RACK SPACE WITH 0U VERTICAL POWER DISTRIBUTION
The Grove Elite Cabinet range supports vertical power distribution options, allowing rack-mounted equipment to retain valuable rack units.
| Product Code | Description |
|---|---|
| PB-PE1124MG | ATEN 0U 24 Port PDU – 240 V, 10 A |
| PB-PE1224MG | ATEN 0U 24 Port PDU – 240 V, 15 A |
| PB-PE1224MU | ATEN 0U 24 Port PDU – 240 V, 20 A |
| PB-PE1321MU | ATEN 0U 21 Port PDU – 240 V, 30 A |
| PB-PE1324MU | ATEN 0U 24 Port PDU – 240 V, 30 A |
| PB-PE1324MU2 | ATEN 0U 24 Port PDU – 240 V, 30 A |
Vertical 0U mounting preserves valuable rack space for network equipment. Select the appropriate PDU according to outlet configuration, electrical load and site power requirements.
Blanking Panels and Mounting Hardware
| Product Code | Description |
|---|---|
| RN-GNLWBP1 | 1RU Blanking Panel |
| RN-GNLWBP2 | 2RU Blanking Panel |
| RN-GNLWBP3 | 3RU Blanking Panel |
| RN-GNLWBP4 | 4RU Blanking Panel |
| RN-XX0001 | M6 Cage Nuts and Bolts – Pack of 50 |
Accessories sold separately. Confirm equipment depth, rail spacing, power requirements and mounting clearances before ordering.
Why Choose Grove Elite Network Cabinets?
ENGINEERED FOR STRENGTH. DESIGNED FOR ACCESS. BUILT FOR PERFORMANCE.
The Grove Elite Cabinet range combines premium construction, exceptional load capacity and advanced cable management capabilities to deliver dependable network infrastructure solutions.
With its 45RU capacity, generous 800 mm width, extra-deep 1200 mm configuration and 1600 kg static load capacity, the Grove Elite Cabinet provides substantial equipment accommodation and outstanding structural support.
High-airflow perforated doors, tool-less access panels, adjustable mounting rails and dedicated cable-entry provisions make installation and maintenance easier, while the professional light grey finish delivers a clean, modern appearance.
Whether building an enterprise communications room, installing high-density structured cabling or expanding server infrastructure, the Grove Elite 45RU Cabinet delivers the space, strength and flexibility required for modern network environments.
PLEASE NOTE: Freight is additional and is not included in the advertised price. Freight costs will be calculated and quoted separately based on the delivery location and order requirements.
