5 Wire 2 Way Splitter

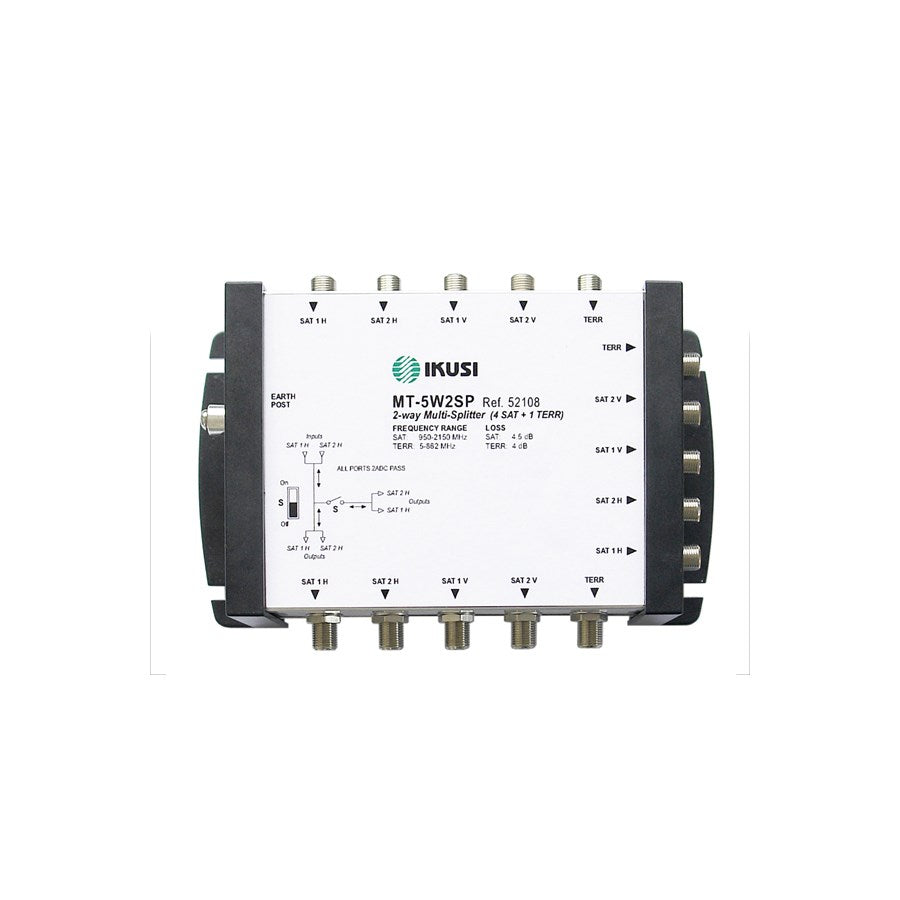

The 5 Wire 2-Way Splitter is a high-quality signal distribution device designed to split both terrestrial (FTA) and satellite signals across two outputs while maintaining full functionality for systems using Quattro LNBs and multiswitches. Supporting 5-wire systems, including 4 satellite polarities (V/L, V/H, H/L, H/H) plus terrestrial signals, this splitter is ideal for large-scale or multi-dwelling installations. Built with high-isolation and low-loss circuitry, it ensures optimal performance with minimal signal degradation and supports bidirectional terrestrial signals for return path compatibility.

Key Features:

• Splits full 5-wire signal (4 SAT + 1 Terrestrial) into 2 outputs

• High-isolation design for signal integrity

• Low insertion loss for both SAT and terrestrial paths

• Suitable for Quattro LNB and multiswitch systems

• Supports DC pass on all SAT paths

• Terrestrial path is passive and bidirectional (return path ready)

• Compact and durable metal housing

• Wall or rack-mountable via integrated brackets

Specifications:

• Inputs: 1 × 5-wire (4 SAT + 1 TER)

• Outputs: 2 × 5-wire (4 SAT + 1 TER)

• Frequency Range:

  • Satellite: 950–2400 MHz

  • Terrestrial: 5–862 MHz

• Insertion Loss:

  • Satellite: ≤ 5 dB

  • Terrestrial: ≤ 4 dB

• Isolation (output to output): > 25 dB

• DC Pass: All SAT ports (both directions)

• Connectors: F-Type female

• Impedance: 75 Ohm

• Housing: Shielded cast metal for RF protection

• Mounting: Wall-mountable

• Operating Temperature: –20°C to +50°C
