Five Wire 10 DB Coupler

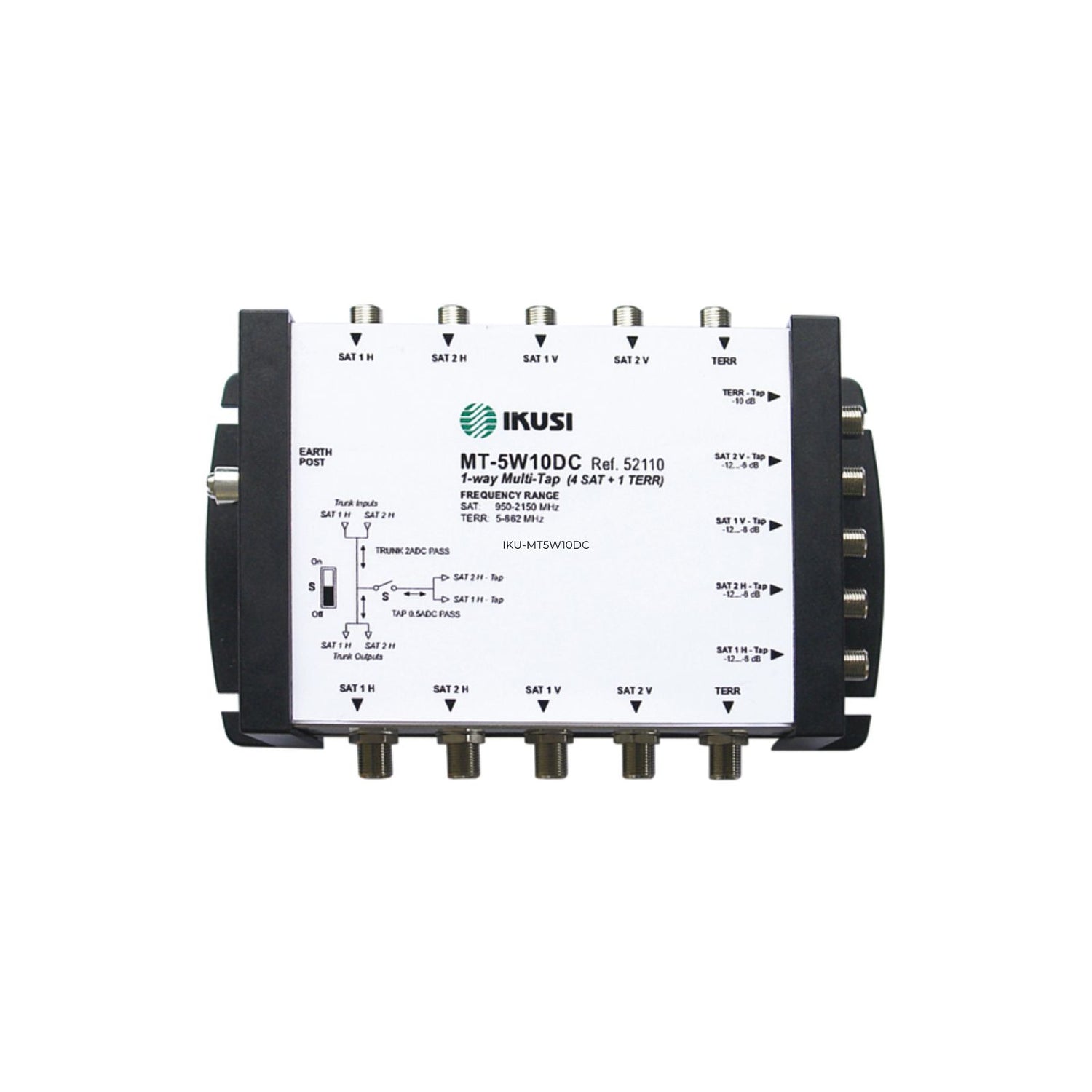

The Five Wire 10 dB Coupler is a high-quality signal management device designed for professional satellite and terrestrial TV installations. Suitable for use in 5-wire systems, it enables the combining or tapping of RF signals while maintaining optimal performance across all outputs.

This coupler offers a fixed 10 dB tap value, ensuring a balanced signal distribution while minimising interference or signal loss. Designed for use in commercial MATV, SMATV, and Foxtel-approved systems, it supports full-bandwidth performance across the 5-wire architecture (vertical low, vertical high, horizontal low, horizontal high, and terrestrial).

With rugged construction and F-Type connectors, it is ideal for use in headends, riser cupboards, and high-density distribution panels.

Key Features:

• Five Wire Compatible – Supports vertical and horizontal satellite bands + terrestrial.

• Fixed 10 dB Tap Loss – Delivers consistent signal levels to tap-off devices.

• High Isolation – Prevents unwanted signal interaction between outputs.

• Low Insertion Loss – Preserves mainline signal integrity.

• Compact & Durable Design – Die-cast aluminium housing with RF shielding.

• F-Type Connectors – Ensures reliable and secure cable connections.

• Wideband Support – Operates across a broad frequency range (terrestrial and satellite).

• Foxtel Stacker Compatible – Suitable for use in Foxtel stacker system environments.

Specifications:

• Tap Loss: 10 dB

• Frequency Range:

  • Terrestrial: 5–862 MHz

  • Satellite: 950–2400 MHz

• Insertion Loss (Through Port): Typically <2 dB

• Isolation: ≥20 dB between ports

• Impedance: 75 Ohm

• Connectors: F-Type (5 in/out + tap)

• Mounting: Wall or rack mountable

• Housing: Shielded die-cast metal

• Operating Temperature: -10°C to +50°C

• Compliance: Foxtel/MATV/SMATV installation compatible
