Multi Switch 5 Input 16 Output
About this Product

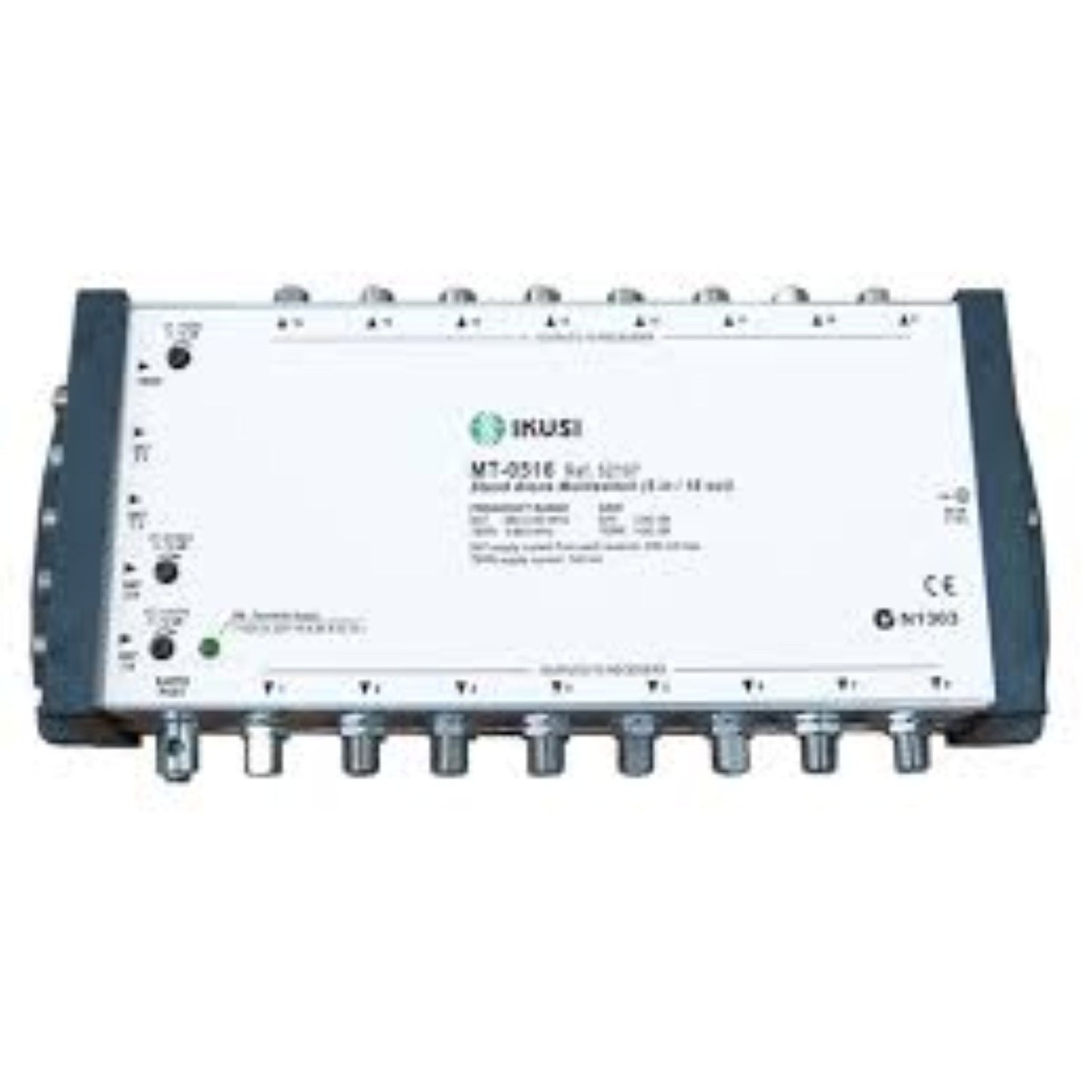

The 5 Input 16 Output Multi Switch is a high-performance satellite and terrestrial signal distribution unit designed for medium to large-scale installations. It allows you to connect up to 5 inputs — typically 4 satellite polarities and 1 terrestrial antenna — and distribute the signals to up to 16 independent outputs. Ideal for apartment buildings, hotels, office complexes, or any multi-dwelling unit requiring efficient and reliable signal management. Compatible with both Free-To-Air and pay TV systems.
Key Features:
-
5 Inputs: Supports 4 satellite IF inputs (V/L, H/L, V/H, H/H) and 1 terrestrial antenna input.
-
16 Outputs: Distributes signals to 16 separate receiver points.
-
Satellite & Terrestrial Support: Integrates satellite and terrestrial signals over a single coaxial network.
-
Amplified Terrestrial Input: Ensures consistent signal strength throughout the distribution.
-
Power Pass: Select outputs support LNB power pass through.
-
High Isolation: Prevents signal interference between outputs.
-
Compact Design: Slimline construction ideal for space-restricted installations.
-
Easy Mounting: Wall-mount brackets included.
-
Durable Housing: Shielded metal casing for enhanced performance and longevity.
Specifications:
| Specification | Details |
|---|---|
| Inputs | 5 (4 Satellite + 1 Terrestrial) |
| Outputs | 16 |
| Frequency Range | Satellite: 950–2150 MHz Terrestrial: 47–862 MHz |
| Insertion Loss | Satellite: ≤ 8 dB Terrestrial: ≤ 20 dB |
| Isolation (Out–Out) | ≥ 25 dB |
| Return Loss | ≥ 10 dB |
| Power Supply | Via satellite receiver or external PSU |
| Power Consumption | < 200 mA |
| Dimensions | Approx. 280 mm x 130 mm x 55 mm |
| Weight | Approx. 1.1 kg |
| Mounting | Wall mountable |
| Operating Temperature | -20°C to +50°C |
