Multi Switch 5 Input 24 Output
About this Product

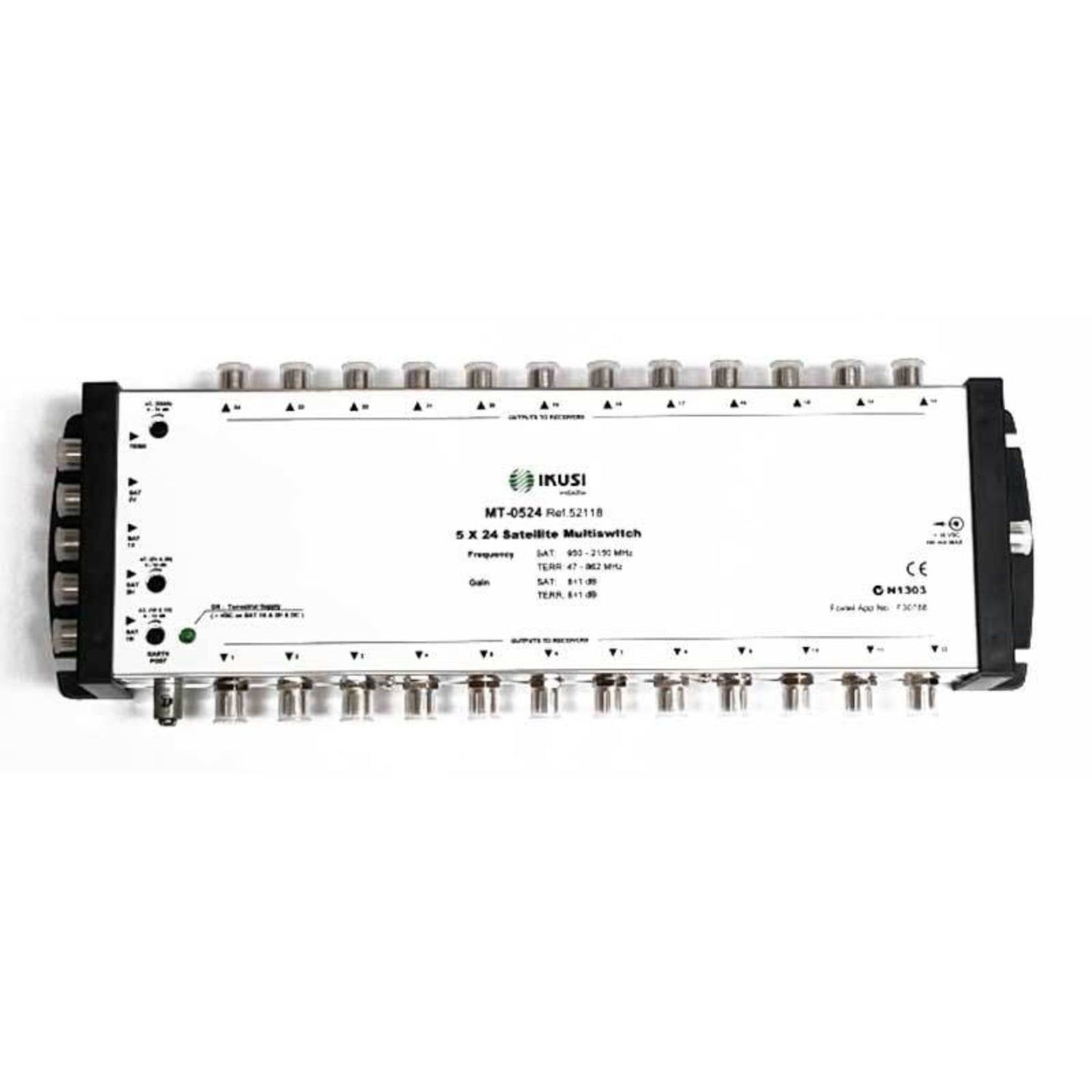

The 5 Input 24 Output Multi Switch is a professional-grade signal distribution device designed for large-scale satellite and terrestrial TV installations. With 4 satellite inputs and 1 terrestrial antenna input, this multiswitch allows seamless signal distribution to up to 24 independent outputs. Ideal for commercial buildings, apartment complexes, and multi-dwelling units, it ensures excellent signal integrity, low loss, and strong isolation for uninterrupted viewing. Compatible with both Free-To-Air and pay TV systems.
Key Features:
-
5 Inputs: Accepts 4 satellite polarities (V/L, H/L, V/H, H/H) and 1 terrestrial antenna.
-
24 Outputs: Distributes signals to 24 independent receivers.
-
Integrated Satellite & Terrestrial Signals: Combines and delivers both signal types via single coaxial runs.
-
Amplified Terrestrial Path: Ensures even distribution of terrestrial signals.
-
LNB Power Pass: Selected outputs support LNB powering from receivers.
-
High Isolation & Low Loss: Maintains signal quality and reduces crosstalk.
-
Shielded Metal Housing: Durable and interference-resistant enclosure.
-
Rack or Wall Mountable: Flexible installation for equipment rooms or cabinets.
Specifications:
| Specification | Details |
|---|---|
| Inputs | 5 (4 Satellite + 1 Terrestrial) |
| Outputs | 24 |
| Frequency Range | Satellite: 950–2150 MHz Terrestrial: 47–862 MHz |
| Insertion Loss | Satellite: ≤ 10 dB Terrestrial: ≤ 22 dB |
| Isolation (Out–Out) | ≥ 25 dB |
| Return Loss | ≥ 10 dB |
| Power Supply | Via external power supply unit (PSU) |
| Power Consumption | < 250 mA |
| Dimensions | Approx. 320 mm x 140 mm x 55 mm |
| Weight | Approx. 1.5 kg |
| Mounting | Wall or rack mountable |
| Operating Temperature | -20°C to +50°C |
