Ikusi  |  SKU: IKU-MT0532

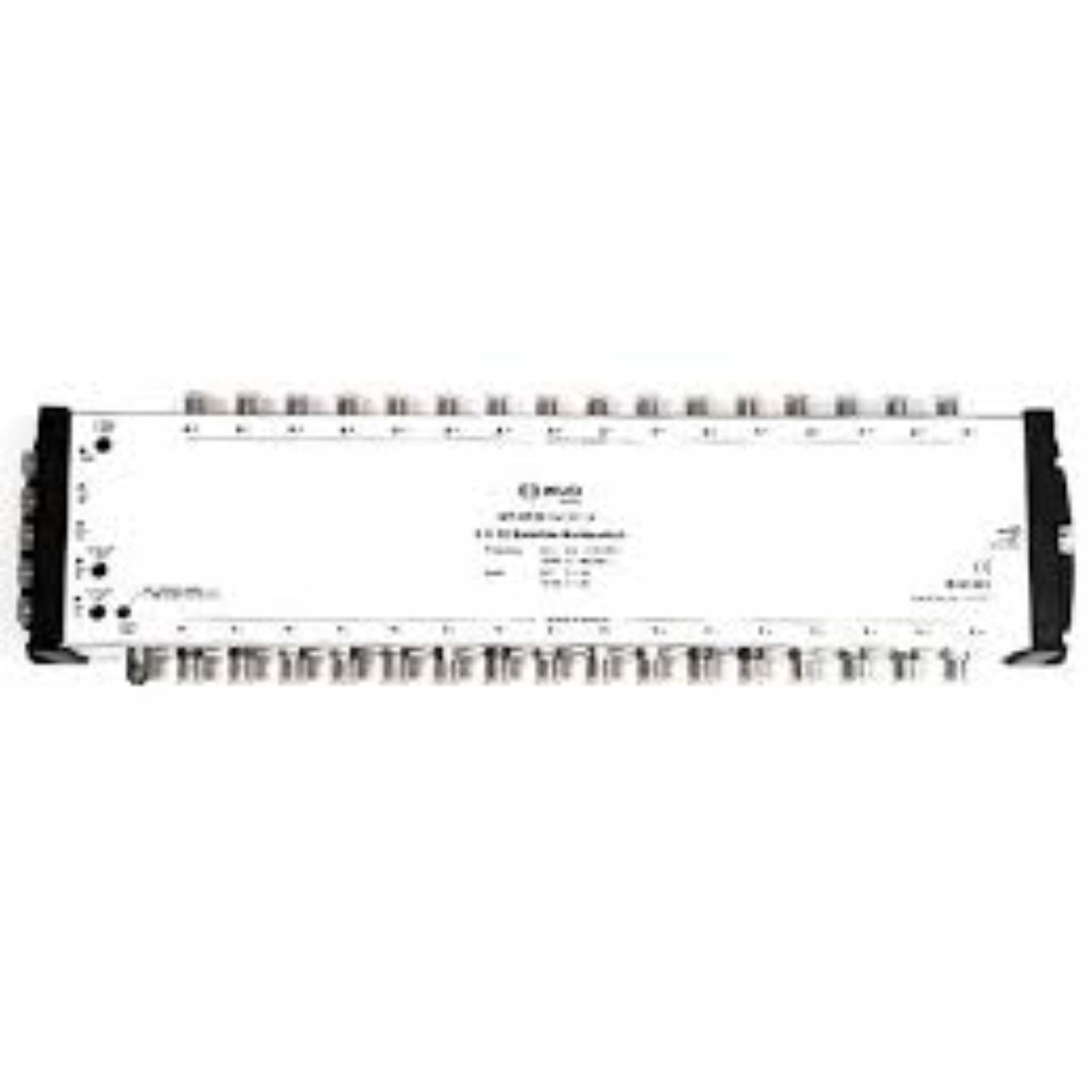

Multi Switch 5 Input 32 Output

$500.67 AUD
Shipping calculated at checkout.

Delivery and Shipping
  • We deliver Australia wide.
  • Click & collect is available from our 3 warehouses.
  • Delivery prices may differ depending what time you order and where you are delivering too

About this Product

The 5 Input 32 Output Multi Switch is a high-capacity distribution unit engineered for large-scale satellite and terrestrial TV signal management. It supports 4 satellite inputs and 1 terrestrial antenna input, allowing signal distribution to up to 32 independent receiver outputs. Ideal for commercial buildings, hotels, apartment blocks, and large MDU (Multi-Dwelling Unit) installations, this multiswitch provides stable signal delivery with high isolation, low insertion loss, and dependable performance. Compatible with both Free-To-Air and pay TV systems.

Key Features:

  • 5 Inputs: Includes 4 satellite polarities (V/L, H/L, V/H, H/H) and 1 terrestrial antenna input.

  • 32 Outputs: Delivers signals to 32 separate receiver locations.

  • Combined Satellite & Terrestrial Signals: Transmits both signal types via a single coaxial line per output.

  • Amplified Terrestrial Path: Ensures strong and balanced terrestrial TV signal distribution.

  • Power Pass Through: Select outputs support LNB powering from receivers.

  • High Isolation: Minimises crosstalk and interference between outputs.

  • Low Insertion Loss: Maintains superior signal quality over longer distances.

  • Robust Metal Housing: Provides shielding against external interference and long-lasting durability.

  • Wall or Rack Mountable: Flexible installation options for utility rooms or AV cabinets.

Specifications:

Specification Details
Inputs 5 (4 Satellite + 1 Terrestrial)
Outputs 32
Frequency Range Satellite: 950–2150 MHz
Terrestrial: 47–862 MHz
Insertion Loss Satellite: ≤ 12 dB
Terrestrial: ≤ 24 dB
Isolation (Out–Out) ≥ 25 dB
Return Loss ≥ 10 dB
Power Supply External PSU required
Power Consumption < 300 mA
Dimensions Approx. 360 mm x 160 mm x 60 mm
Weight Approx. 1.8 kg
Mounting Wall or rack mountable
Operating Temperature -20°C to +50°C
