Multi Switch 5 Input 8 Output
About this Product

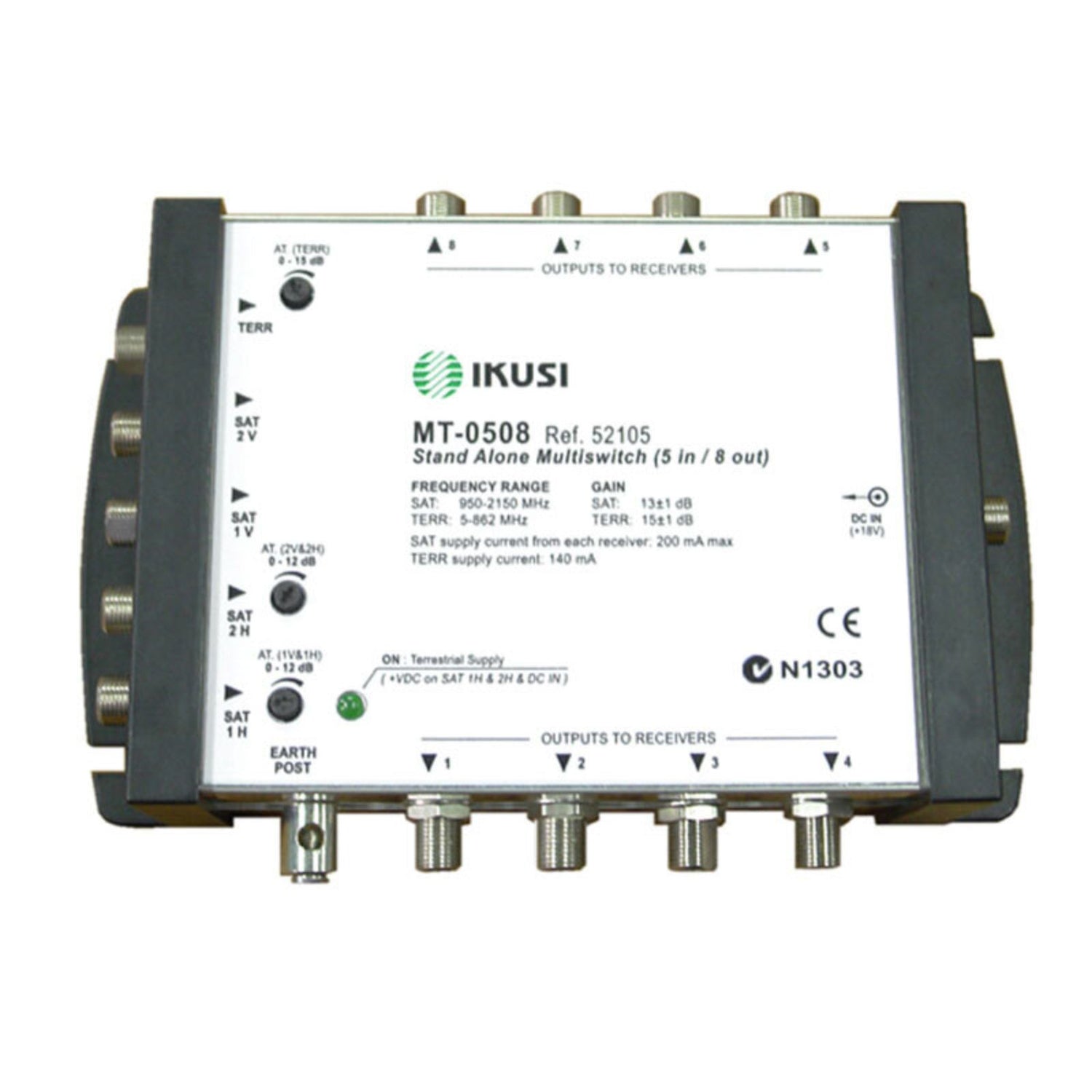

The 5 Input 8 Output Multi Switch is a compact and efficient solution for distributing satellite and terrestrial TV signals to multiple receivers. Designed for residential and small commercial installations, it supports up to 5 inputs — 4 satellite polarities and 1 terrestrial antenna — and delivers output to 8 separate receiver points. Compatible with both Free-To-Air and pay TV systems, this multiswitch ensures high-quality signal transmission with minimal loss and interference.
Key Features:
-
5 Inputs: Includes 4 satellite inputs (V/L, H/L, V/H, H/H) and 1 terrestrial antenna input.
-
8 Outputs: Serves up to 8 independent receivers.
-
Integrated Terrestrial Signal: Combines terrestrial and satellite signals on a single coaxial cable.
-
Power Pass Through: Selected outputs support LNB powering via satellite receivers.
-
Low Insertion Loss: Ensures excellent signal quality across all outputs.
-
High Isolation: Reduces interference between outputs for reliable performance.
-
Metal Housing: Provides shielding and protection from external interference.
-
Easy Installation: Wall-mountable and compact design, ideal for tight spaces.
Specifications:
| Specification | Details |
|---|---|
| Inputs | 5 (4 Satellite + 1 Terrestrial) |
| Outputs | 8 |
| Frequency Range | Satellite: 950–2150 MHz Terrestrial: 47–862 MHz |
| Insertion Loss | Satellite: ≤ 6 dB Terrestrial: ≤ 18 dB |
| Isolation (Out–Out) | ≥ 25 dB |
| Return Loss | ≥ 10 dB |
| Power Supply | Via satellite receiver or external PSU |
| Power Consumption | < 150 mA |
| Dimensions | Approx. 240 mm x 120 mm x 50 mm |
| Weight | Approx. 0.9 kg |
| Mounting | Wall mountable |
| Operating Temperature | -20°C to +50°C |
