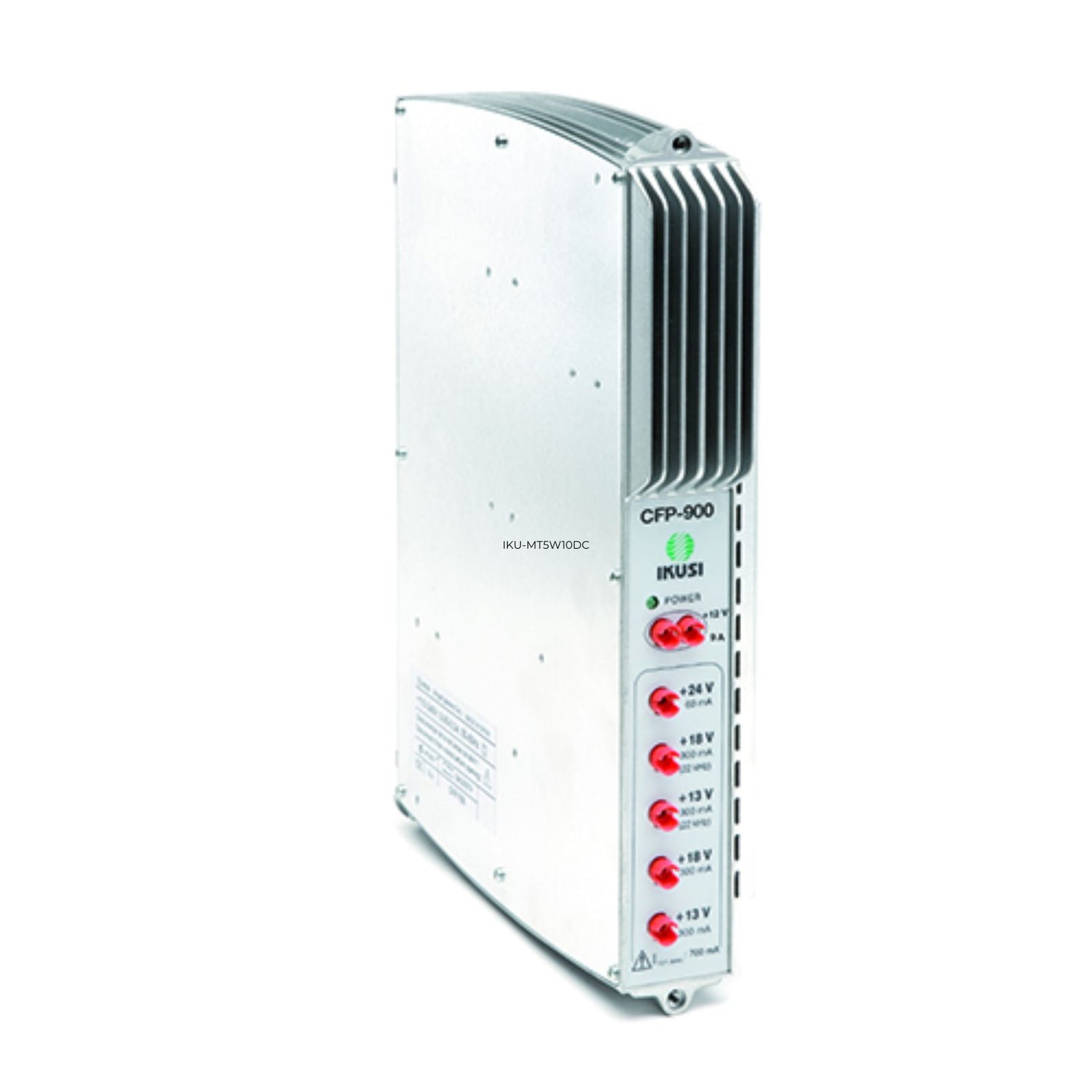

Power Supply | 12/18 24 Volt Vdc/0-22KHz

This Power Supply Unit (PSU) provides a regulated DC voltage output of 12V, 18V, or 24V and is designed specifically for satellite TV, MATV, SMATV, and Foxtel installations. With integrated 0–22kHz signal pass-through functionality, it supports DiSEqC commands and tone-based switching, making it ideal for powering multiswitches, LNBs, amplifiers, and other in-line equipment without interrupting signal transmission.

Built with robust shielding and F-type connectors, it ensures reliable power injection while maintaining signal integrity across terrestrial and satellite frequency bands. It is compact, efficient, and perfect for professional distribution systems where consistent voltage and communication signals are essential.

Key Features:

• Voltage Output Options – 12V, 18V, or 24V DC to suit a range of system requirements.

• 0–22kHz Signal Pass – Supports tone-based switching and DiSEqC communication.

• F-Type Connectors – Ensures secure connections with minimal signal loss.

• Compact Design – Easy integration into cabinets, riser systems, and rack setups.

• Short Circuit & Overload Protection – Enhanced safety and reliability.

• Ideal for Foxtel, SMATV, and MATV Systems – Fully compatible with satellite and terrestrial infrastructure.

• RF Shielded Housing – Prevents interference and preserves signal quality.

• Plug and Play – Simple to install and deploy in existing systems.

Specifications:

• Input Voltage: 100–240V AC, 50/60Hz

• Output Voltage: Selectable 12V DC / 18V DC / 24V DC

• Output Current: Typically up to 1A (model dependent)

• Frequency Pass-Through: 0–22kHz

• Frequency Range (Signal): 5–2400 MHz

• Connector Type: F-Type (input/output)

• Impedance: 75 Ohm

• Short Circuit Protection: Yes

• Over Voltage/Overload Protection: Yes

• Mounting: Inline or wall-mounted

• Dimensions: Approx. 90 mm (L) x 60 mm (W) x 40 mm (H)

• Operating Temperature: -10°C to +50°C

• Certifications: CE, RoHS, Foxtel-compliant where applicable
