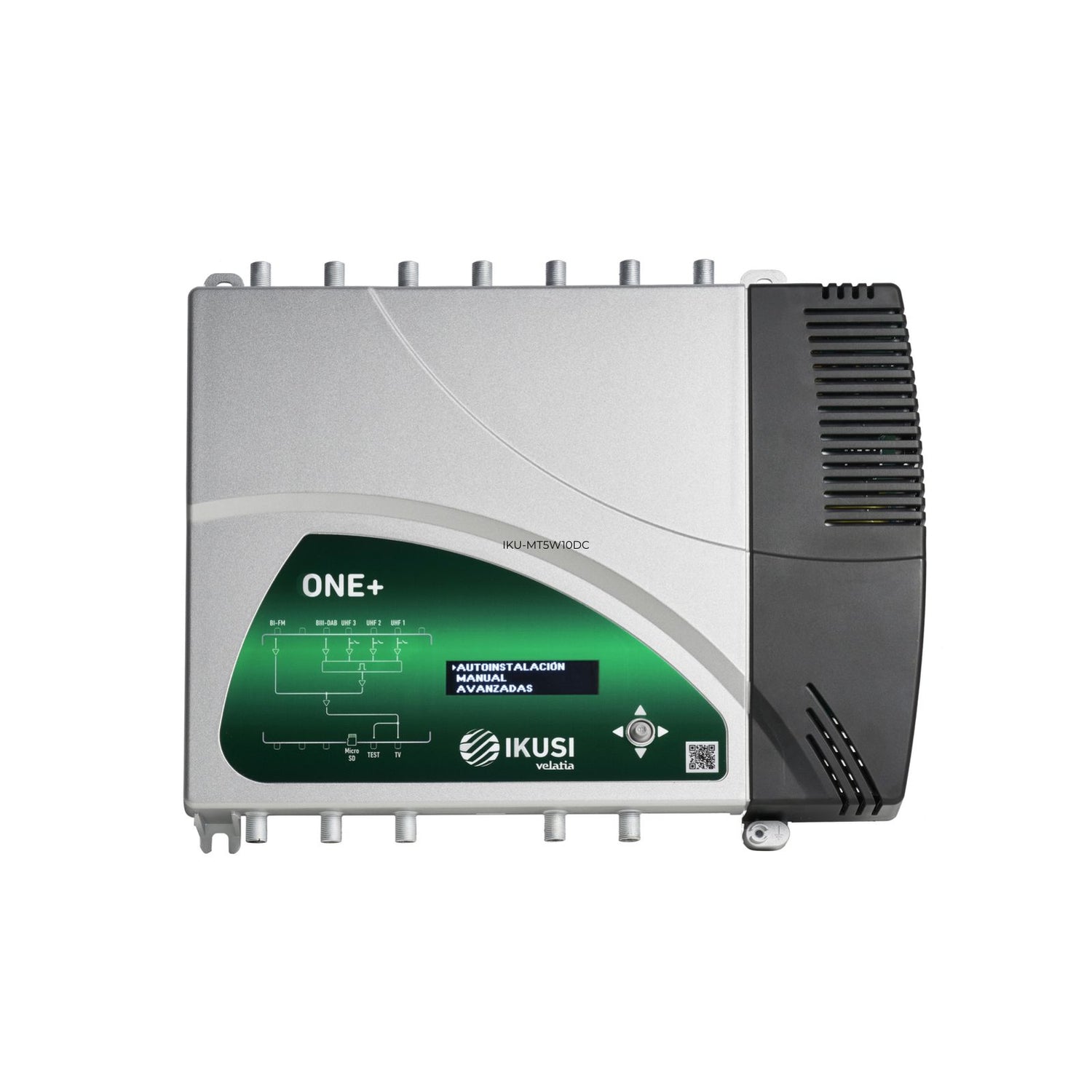

Programmable Digital Amplifier FTA

The Programmable Digital Amplifier for FTA (Free-to-Air) is a high-performance signal amplification device designed to enhance and stabilise terrestrial TV signals across multiple digital channels. Ideal for MATV and SMATV systems, this amplifier allows installers to individually program, filter, and equalise incoming UHF/VHF channels to ensure strong, interference-free signal delivery to all television outlets.

Equipped with digital processing and channel-selective amplification, this amplifier is perfect for areas with complex signal environments or where only selected FTA channels are required. Its compact design, user-friendly interface, and stable output level make it suitable for residential, commercial, and multi-dwelling unit installations.

Key Features:

• Fully Programmable: Amplify only selected channels with digital filtering to reduce noise and interference.

• FTA Compatibility: Designed specifically for Free-to-Air terrestrial TV signals.

• Multiple Inputs: Supports UHF/VHF and FM signal inputs with separate adjustment.

• Auto Level Control (ALC): Maintains constant output level regardless of input variations.

• Adjustable Gain & Equalisation: Fine-tune amplification for optimal signal strength and clarity.

• LCD Display or PC Software Programming: Simple setup via onboard interface or USB/software (model dependent).

• High Output Level: Suitable for distribution to multiple TV outlets without degradation.

• Compact & Durable Casing: Shielded housing reduces interference and ensures reliability.

Specifications:

• Frequency Range:

  • VHF: 47–230 MHz

  • UHF: 470–862 MHz

• Gain: Typically up to 50 dB (programmable per channel)

• Output Level: Up to 120 dBμV

• Inputs: 2–3 inputs (VHF/UHF/FM depending on model)

• Channels: Supports 32–48 programmable filters (model dependent)

• Noise Figure: < 5 dB

• Power Supply: 230V AC or external 12–24V DC

• Control Interface: LCD display, keypad, or USB (model dependent)

• Impedance: 75 Ohm

• Connectors: F-Type

• Dimensions: Approx. 250 mm (L) x 150 mm (W) x 55 mm (H)

• Operating Temperature: -10°C to +50°C

• Mounting: Wall mountable

• Certifications: CE, RoHS compliant
