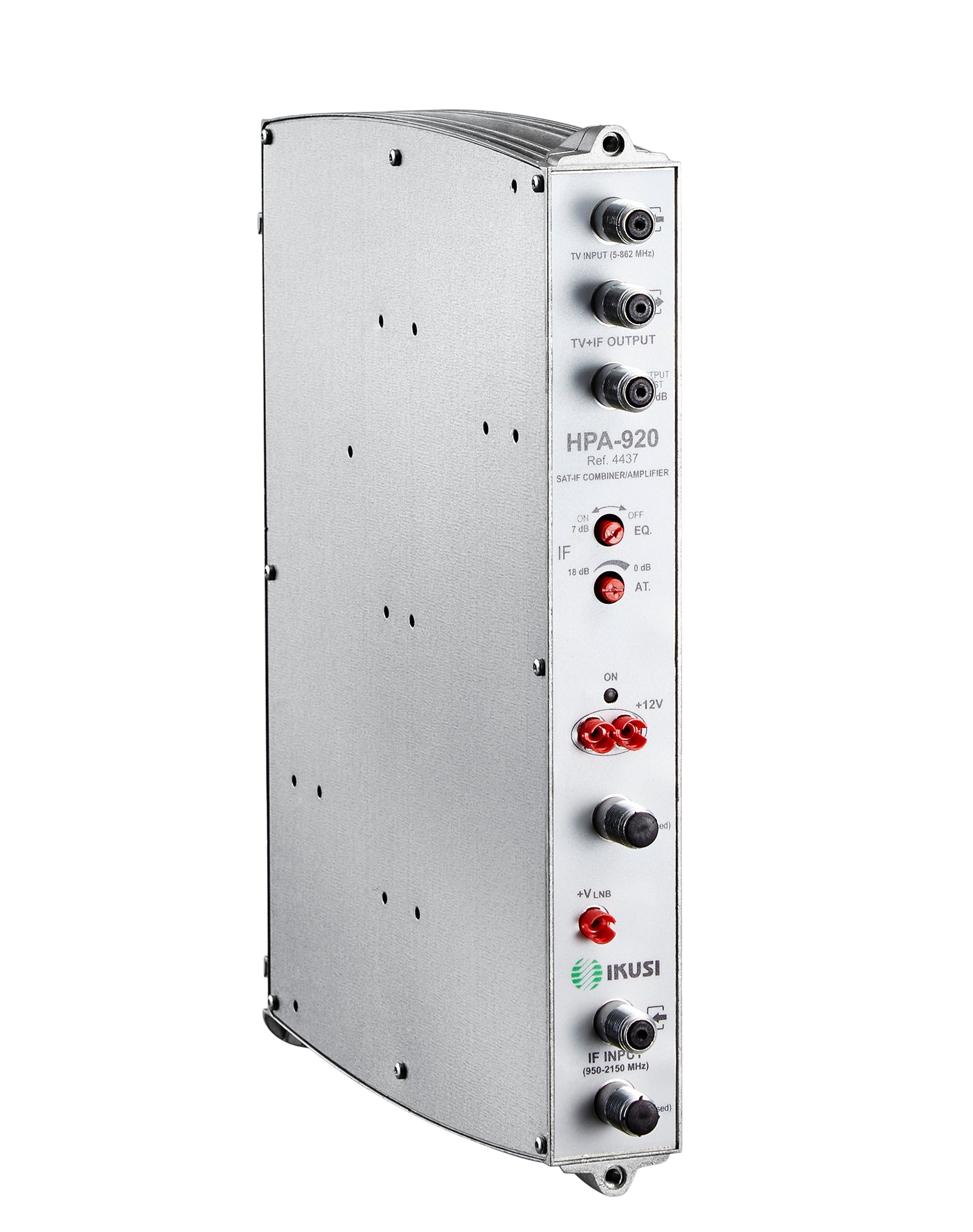

SAT-IF Combiner Amplifier

The SAT-IF Combiner Amplifier is a professional-grade signal amplification and combining unit designed for satellite Intermediate Frequency (IF) signal distribution. It merges multiple SAT-IF input signals (typically from multiple LNBs or multiswitch outputs) into a single output while amplifying the signal to compensate for distribution losses in complex MATV or SMATV systems.

Engineered for high performance in large-scale installations such as multi-dwelling units, commercial buildings, or satellite headends, the amplifier operates across the full SAT-IF frequency range (950–2400 MHz) with minimal noise and high output stability. The built-in amplification ensures strong signal levels over long cable runs and multiple distribution points, while maintaining excellent linearity and low distortion.

Key Features:

• Combines & Amplifies SAT-IF Signals – Ideal for headends and multiswitch-based systems.

• Wide Frequency Range – 950–2400 MHz SAT-IF compatibility for universal LNBs and Foxtel systems.

• Integrated Amplification – Maintains signal strength across extended cable runs.

• High Output Levels – Suitable for splitting to multiple receivers or multiswitches.

• Low Noise Performance – Ensures clean, high-quality signal delivery.

• DC Power Pass – Supports powering of LNBs or active components via coaxial cable.

• F-Type Connectors – Reliable and secure signal connection standard.

• Robust Shielded Housing – RF-protected die-cast aluminium body for durability and low interference.

• Compact Form Factor – Fits easily into distribution cabinets or racks.

Specifications:

• Input Ports: 2 or more SAT-IF inputs (model dependent)

• Output Ports: 1 combined output

• Frequency Range: 950–2400 MHz

• Gain: Typically 15–25 dB (model dependent)

• Noise Figure: ≤ 4 dB

• Output Level: Up to 100 dBμV

• Return Loss: ≥ 10 dB

• DC Pass: Yes (to LNB or amplifier)

• Impedance: 75 Ohm

• Power Supply: External (commonly 18V DC)

• Connectors: F-Type (female)

• Operating Temperature: -10°C to +50°C

• Dimensions: Approx. 120 mm (L) x 85 mm (W) x 40 mm (H)

• Mounting: Wall or panel mountable

• Compliance: Suitable for Foxtel, VAST, and other SAT-IF systems
