Wireless AP Access Controller | Indoor

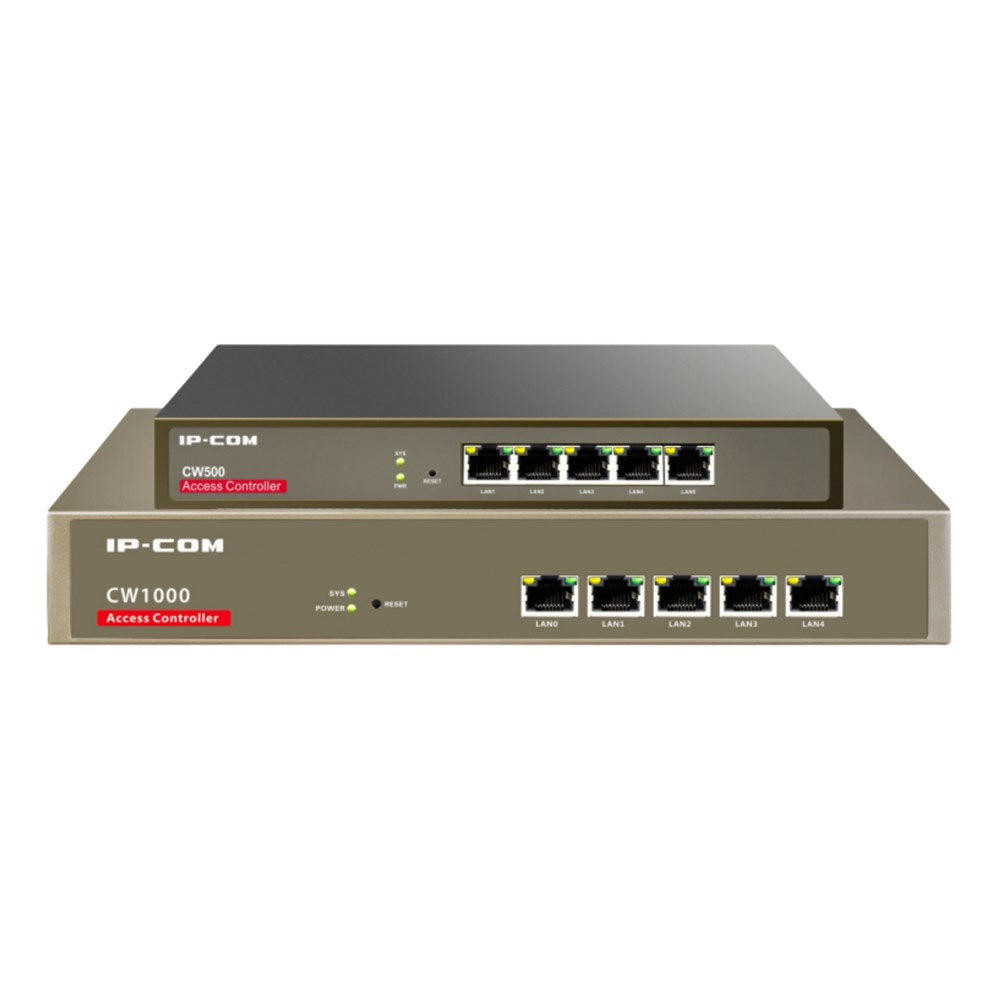

The IP-COM CW500 and CW1000 Wireless Access Controllers are powerful hardware solutions designed to centrally manage and optimise IP-COM access point networks. Built for scalable deployments, these controllers allow seamless configuration, monitoring, and control of multiple access points from a single interface.

Ideal for business, hospitality, and campus environments, the CW500 supports up to 32 access points, while the CW1000 scales up to 512 access points and thousands of connected users. With automatic AP discovery, batch configuration, and real-time monitoring, network administrators can efficiently manage large wireless infrastructures with minimal effort.

Designed for easy deployment, both models integrate into existing networks without requiring topology changes. Advanced management features such as SSID configuration, VLAN support, traffic monitoring, and firmware upgrades ensure reliable and secure wireless performance across all connected devices.

---

Key Features

• Centralised management of IP-COM access points
• Supports up to 32 APs (CW500) or 512 APs (CW1000)
• Automatic access point discovery and assignment
• Batch configuration, reboot, reset, and firmware upgrades
• Real-time monitoring of AP status and client connections
• Supports up to 3000 concurrent wireless clients
• VLAN support for network segmentation (ID 2–4094)
• Traffic and failure alarms for proactive network management
• Easy deployment without changing existing network topology
• Administrator management with system logs and diagnostics

---

Specifications

Hardware

• Models: CW500 / CW1000
• AP Capacity:
• CW500: 32 APs
• CW1000: 512 APs
• Ports: 5 × Gigabit Ethernet (LAN)

Buttons:

• CW500: Reset
• CW1000: Reset + Power switch

Power Supply:

• CW500: AC 110–240 V, 50/60 Hz, 0.6 A
• CW1000: AC 100–240 V, 50/60 Hz, 0.3 A

Power Consumption:

• CW500: 9 W
• CW1000: 10 W

Dimensions:

• CW500: 210 × 130 × 30 mm
• CW1000: 294 × 178.7 × 44 mm

Software & Management

• Standards: IEEE 802.3 / 802.3u / 802.3ab
• LAN Configuration: Static IP
• DHCP Server: Supported
• VLAN: ID 2–4094

Wireless Management Features

• Auto discovery and assignment of access points
• SSID, channel, output power, and security configuration
• Client limit and SSID isolation
• AP online status and client monitoring
• Batch AP reboot/reset and firmware upgrades
• Scheduled AP reboot
• AP failure and traffic alarms
• Client limit alerts and reporting
• Export AP and client lists

System Tools

• Time and date settings
• Configuration backup and restore
• Factory reset
• Firmware upgrade
• Administrator management
• System logs

Environmental

• Operating Temperature: -10°C to 45°C
• Storage Temperature: -30°C to 70°C
• Humidity: 10% – 90% non-condensing

Certifications

• FCC, CE, RoHS

---

Applications

• Hotels, resorts, and hospitality networks
• Corporate offices and enterprise environments
• Schools, universities, and campuses
• Shopping centres and retail environments
• Multi-floor buildings requiring centralised Wi-Fi control
• Large-scale wireless deployments with multiple access points
