1M FC-SC MM OM3 Duplex Patch Lead | LSZH

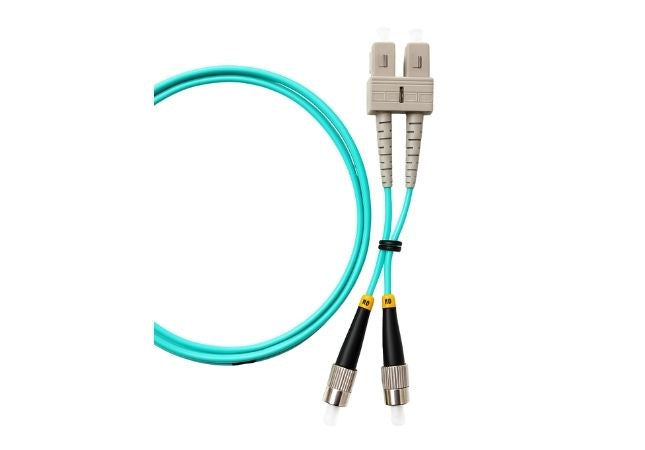

 Multi Mode Patch Lead | FC-SCThe 1 metre FC-SC OM3 multimode duplex fibre patch lead is designed for reliable, high-speed optical connections between fibre optic equipment and patch panels. Featuring FC connectors on one end and SC connectors on the other, this cable is ideal for mixed-connector environments in data centres, telecom rooms and enterprise networks.

Manufactured with OM3 50/125 µm multimode fibre and a Low Smoke Zero Halogen (LSZH) jacket, it supports high bandwidth applications while meeting stringent fire safety requirements for indoor installations.

Key Features

• 1 m multimode duplex fibre patch lead
• FC to SC connector configuration
• OM3 50/125 µm multimode fibre
• Supports high-speed optical networking
• Low insertion and return loss
• LSZH jacket for enhanced fire safety
• Aqua jacket colour for easy OM3 identification
• Factory terminated and tested for performance

Specifications

• Length: 1 m
• Fibre Type: Multimode OM3
• Core / Cladding: 50/125 µm
• Connector A: FC (male)
• Connector B: SC (male)
• Configuration: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Wavelengths: 850 nm / 1300 nm
• Operating Temperature: -20 °C to +70 °C
• Standards Compliance: TIA/EIA, IEC

Applications

• Data centre fibre patching
• Telecommunications networks
• LAN and SAN connections
• Fibre patch panels and enclosures
• Network switches, servers and transceivers
• Indoor installations requiring LSZH cabling
