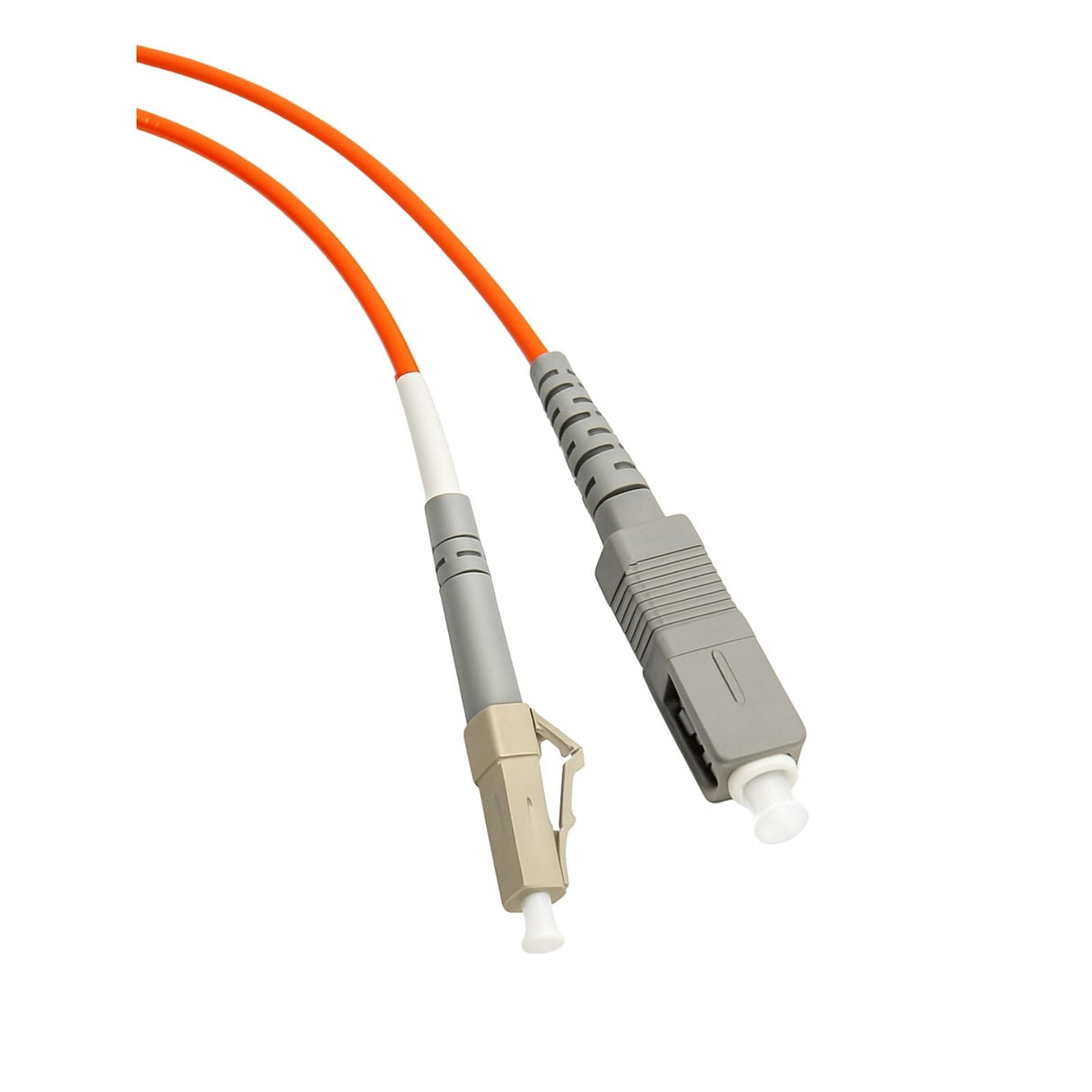

5M SC-LC MM OM1 Simplex Patch Lead
5M SC-LC MM OM1 Simplex Patch Lead is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
5M SC-LC MM OM1 Simplex Patch Lead
About this Product
The 5 metre SC-LC MM OM1 Simplex Patch Lead is a premium multimode fibre optic cable designed for reliable, high-speed network interconnection in short-distance applications. Featuring a sturdy SC connector on one end and a compact LC connector on the other, this cable supports seamless connectivity between devices with mixed port types. Built with OM1 multimode fibre (62.5/125 µm) and precision-polished connector endfaces, this lead delivers low insertion loss and strong signal integrity in enterprise, data centre, and campus network environments.
Its simplex configuration (single fibre) is ideal for unidirectional data transmission, making installation quick and efficient. The cable’s flexible outer jacket provides excellent protection from mechanical stress and bending while ensuring durability for frequent handling. With a 5 metre length, this patch lead is suitable for rack-to-rack or rack-to-equipment connections in indoor optical distribution.
Key Features
- 5 metre multimode simplex fibre cable
- SC-LC connector combination for versatile device connection
- Supports OM1 multimode fibre (62.5/125 µm)
- Low insertion loss and reliable optical performance
- Precision polished connector endfaces
- Simplex design for unidirectional transmission
- Flexible, durable outer jacket
- Ideal for short-distance indoor optical links
- Compatible with data centre and enterprise fibre networks
Specifications
| Parameter | Value / Range |
|---|---|
| Cable Length | 5 m |
| Connector A | SC (Simplex) |
| Connector B | LC (Simplex) |
| Fibre Type | Multimode OM1 (62.5/125 µm) |
| Core Diameter | 62.5 µm |
| Cladding Diameter | 125 µm |
| Wavelength Range | 850 nm / 1300 nm |
| Insertion Loss (Typical) | ≤ 0.3 dB per mated pair |
| Return Loss | ≥ 20 dB |
| Cable Jacket | LSZH / PVC (selectable) |
| Operating Temperature | –20 °C to +70 °C |
| Minimum Bend Radius | ≥ 10 × cable diameter |
| Compliance | RoHS, IEC, ISO/IEC standards |
Applications
- Data centre rack & equipment connections
- Enterprise LAN backbone links
- Campus network patching
- Server-to-switch or switch-to-patch panel links
- Multimode fibre environments
- Optical test & measurement setups
