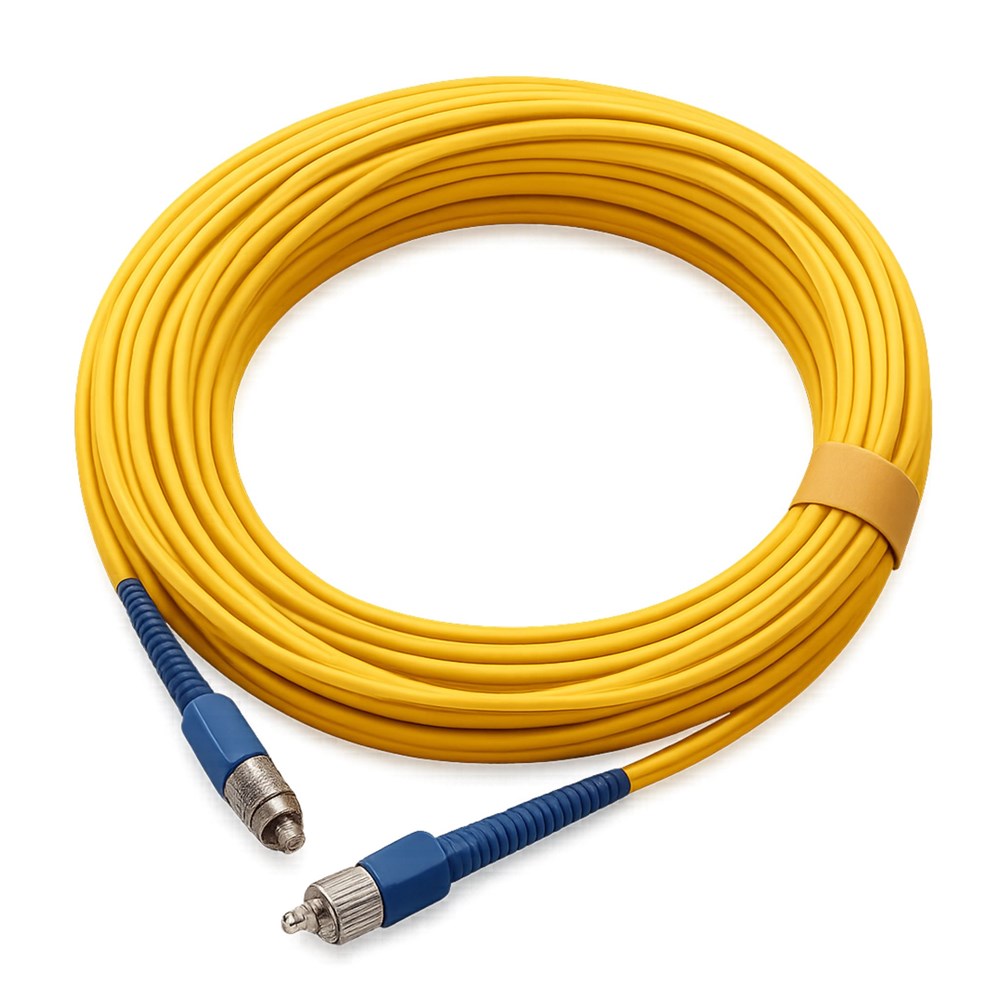

10M FC SM Duplex Pigtail

The 10 m FC SM Duplex Pigtail is designed for long-reach single mode fibre optic connections requiring reliable, low-loss performance. Built with OS1/OS2 9/125 µm fibre, this duplex assembly ensures high-quality signal transmission with minimal attenuation, making it suitable for demanding telecom and data network environments.

Each end is factory-terminated with precision FC connectors, delivering stable and secure connections for both transmit and receive channels. The 10 metre length provides extended installation flexibility for larger racks, distributed fibre frames, and structured cabling systems where longer runs are required. Manufactured with a durable outer jacket, this duplex pigtail is built for consistent performance in professional network installations.

Key Features:

• 10 m length for extended reach installations
• Duplex configuration for Tx/Rx fibre pairs
• Single mode OS1/OS2 9/125 µm fibre
• FC precision connectors for stable performance
• Low insertion loss for efficient signal transfer
• High return loss for improved reliability
• Factory polished connectors for consistency
• Durable protective jacket for long-term use

Specifications:

• Connector Type: FC (Duplex)
• Fibre Type: Single mode (OS1/OS2)
• Core/Cladding Diameter: 9/125 µm
• Length: 10 m
• Cable Type: Duplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Ferrule Type: Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Applications:

• Telecommunications backbone networks
• Data centre interconnects
• Fibre distribution frames (FDF/ODF)
• FTTH and enterprise network systems
• High-speed LAN/WAN infrastructure
• Long-distance patching within rack systems
