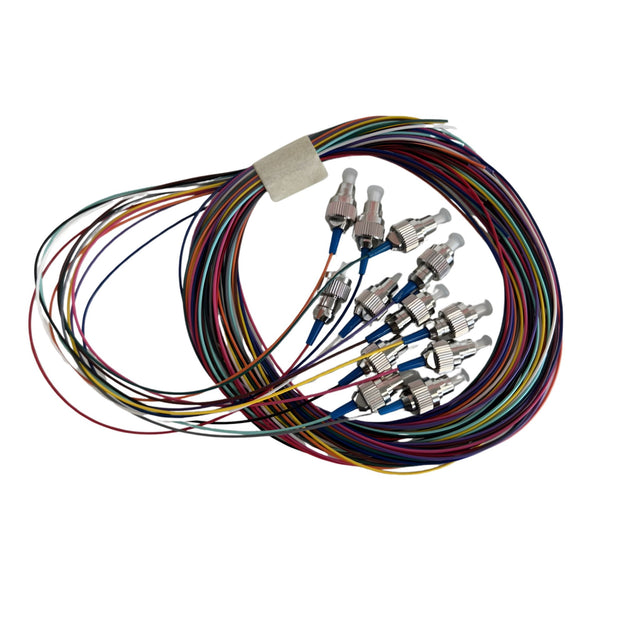

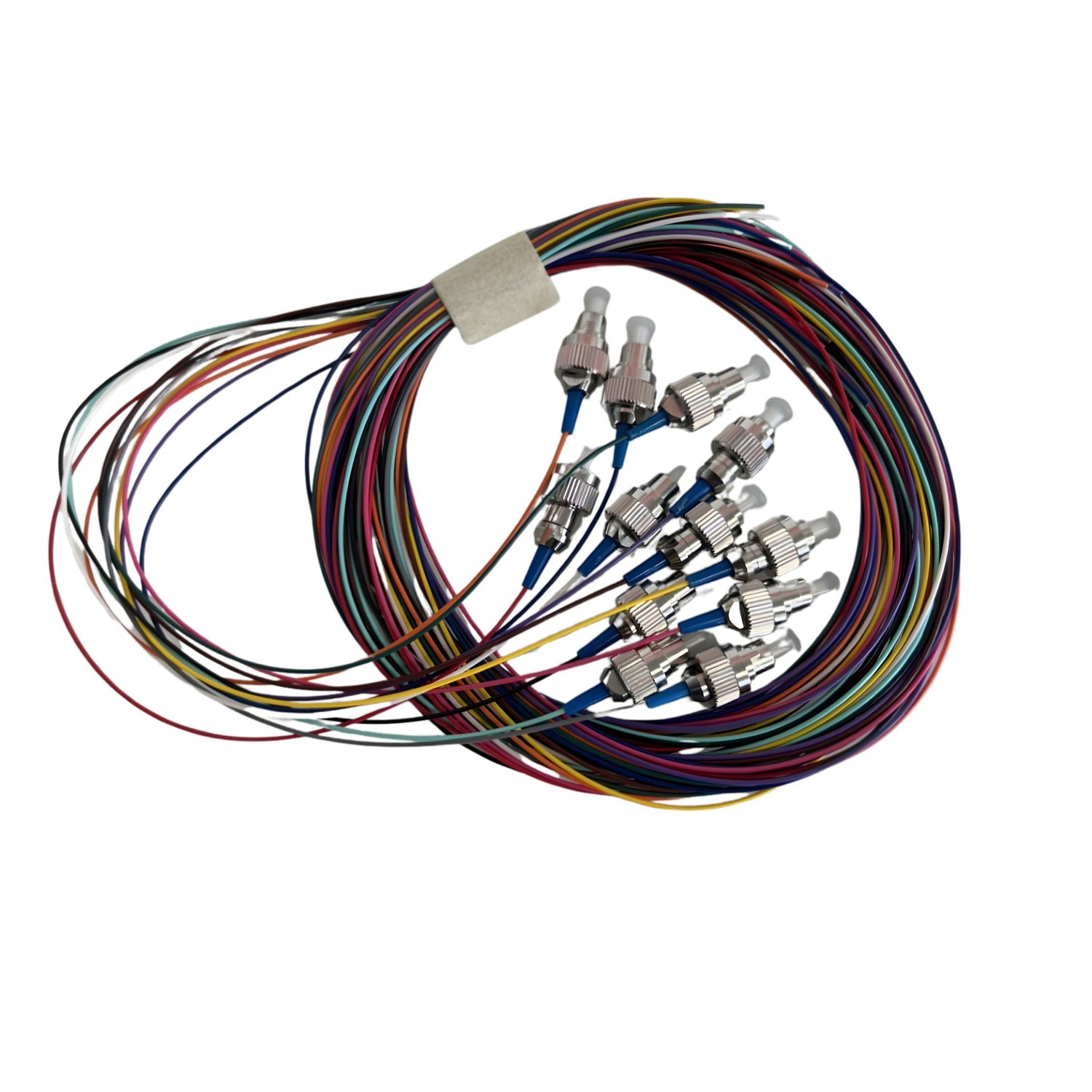

1.5M FC SM Simplex Pigtail | Pack 12

The 1.5 m FC SM Simplex Pigtail Pack of 12 is designed for high-performance fibre optic splicing in single mode networks. Manufactured using premium OS1/OS2 9/125 µm fibre, these pigtails deliver low insertion loss and excellent return loss, ensuring reliable signal transmission over long distances.

Each pigtail is factory-terminated with a precision FC connector, offering secure and stable connections ideal for telecommunications, data centres, and enterprise network installations. The 1.5 metre length provides flexibility during installation, while the durable jacket enhances protection and longevity in structured cabling environments. Supplied in a convenient pack of 12, these pigtails are perfect for bulk network deployments and professional fibre termination work.

Key Features:

• 1.5 m length for flexible installation
• Single mode OS1/OS2 9/125 µm fibre
• FC connector with precision ceramic ferrule
• Low insertion loss for optimal performance
• High return loss for stable signal quality
• Factory polished for consistent reliability
• Durable outer jacket for added protection
• Supplied in pack of 12 for bulk applications

Specifications:

• Connector Type: FC
• Fibre Type: Single mode (OS1/OS2)
• Core/Cladding Diameter: 9/125 µm
• Length: 1.5 m
• Cable Type: Simplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Ferrule Type: Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Quantity: Pack of 12

Applications:

• Fibre optic splicing and termination
• Telecommunications networks
• Data centres and server rooms
• FTTH (Fibre to the Home) installations
• LAN and WAN infrastructure
• Patch panel and distribution frame connections
