2M SC MM OM4 Pigtail | Pack 6
About this Product

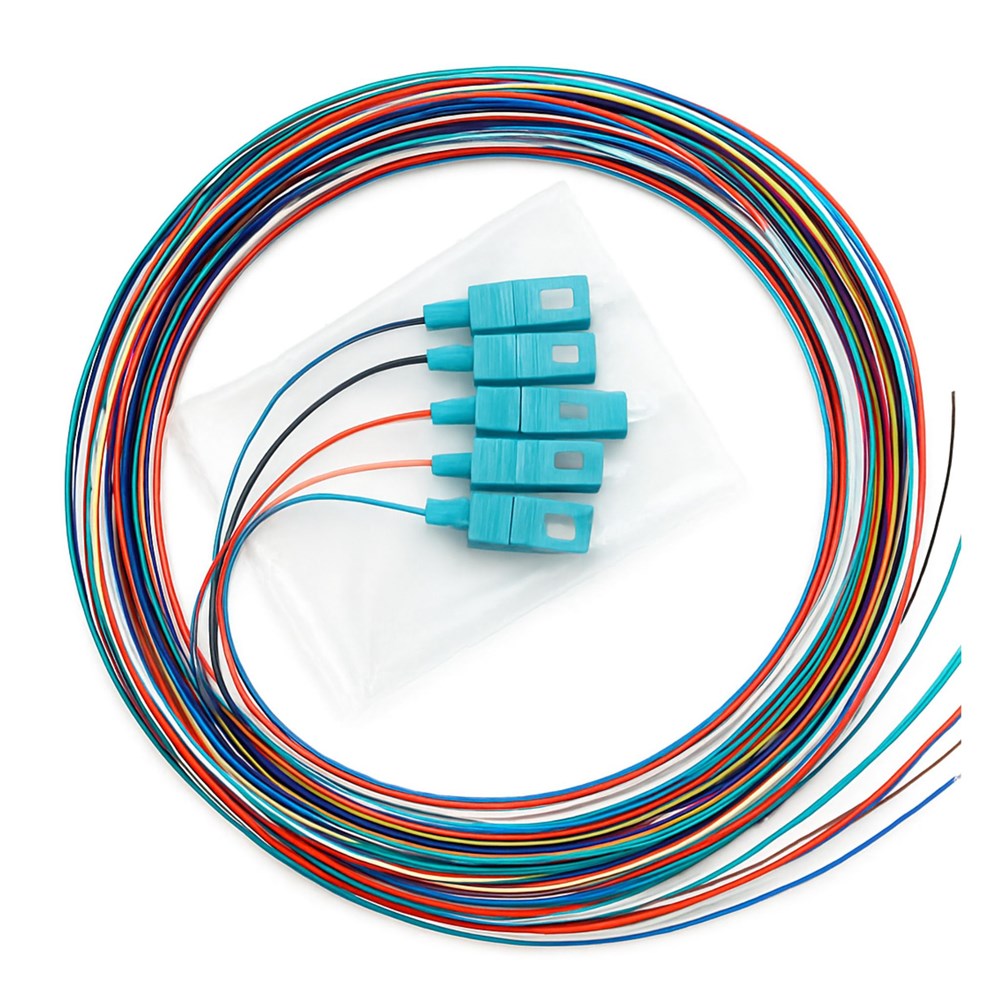

The Grove 2M SC MM OM4 Pigtail (Pack of 6) is a high-performance fibre optic solution designed for reliable splicing and termination in high-speed network environments. Featuring OM4 multimode fibre and SC connectors, these pre-terminated pigtails deliver low insertion loss and superior signal integrity for data centres, enterprise networks, and telecommunications systems.
Each pigtail is factory-tested to ensure consistent optical performance and comes in a colour-coded 6-pack for easy fibre identification and installation efficiency. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in indoor environments by reducing toxic emissions in case of fire.
Key Features
- OM4 multimode fibre for high-speed data transmission (up to 100 Gb/s support)
- SC connector for secure and precise connectivity
- 2 metre length for flexible installation
- Low insertion loss (≤ 0.3 dB) for minimal signal degradation
- High return loss for improved performance
- Factory pre-terminated and tested for quality assurance
- Colour-coded 6-pack for easy fibre identification
- LSZH jacket for enhanced fire safety and low smoke emission
- 900 µm tight-buffered fibre for durability and easy handling
Specifications
| Attribute | Details |
|---|---|
| Fibre Type | OM4 Multimode |
| Core/Cladding Diameter | 50/125 µm |
| Connector Type | SC |
| Cable Type | Pigtail (one end terminated) |
| Length | 2 m |
| Pack Size | 6 |
| Buffer Type | 900 µm tight buffer |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Colour | 6 colour-coded fibres |
| Operating Temperature | -20 °C to +70 °C |
| Compliance | AS/NZS 60950 (typical) |
Applications
- Data centres and server rooms
- Telecommunications networks
- Enterprise LAN and WAN systems
- Fibre optic patch panels and distribution frames
- High-speed backbone cabling
- Fusion splicing and termination projects
- Audio/video and high-bandwidth transmission systems
