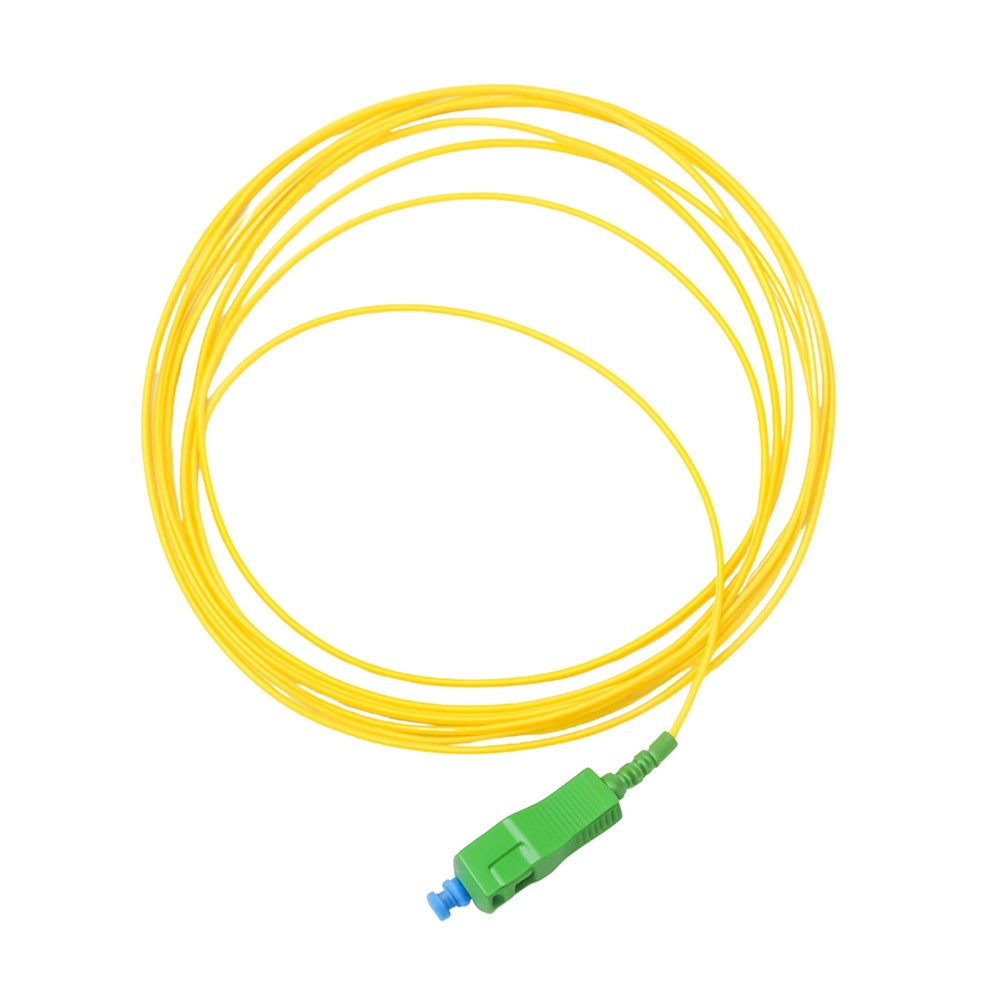

2M SCA SM Simplex Pigtail

The 2 m SCA SM Simplex Pigtail is designed for reliable single mode fibre optic splicing in high-performance network environments. Manufactured using premium OS1/OS2 9/125 µm fibre, it ensures low insertion loss and excellent return loss for stable, long-distance signal transmission.

Fitted with a precision SC/APC (SCA) connector, this pigtail delivers enhanced back reflection performance, making it ideal for FTTH, PON, and high-speed telecommunications networks. The 2 metre length provides installation flexibility for patch panels, fibre enclosures, and structured cabling systems, while the durable outer jacket ensures long-lasting protection in demanding environments.

Key Features:

• 2 m length for flexible installation
• SC/APC (SCA) precision connector
• Single mode OS1/OS2 9/125 µm fibre
• Angled polish for superior return loss performance
• Low insertion loss for efficient signal transmission
• High stability for long-distance applications
• Factory-terminated and polished for consistency
• Durable protective jacket for reliability

Specifications:

• Connector Type: SC/APC (SCA)
• Fibre Type: Single mode (OS1/OS2)
• Core/Cladding Diameter: 9/125 µm
• Length: 2 m
• Cable Type: Simplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Ferrule Type: Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Applications:

• FTTH (Fibre to the Home) networks
• PON (Passive Optical Networks)
• Telecommunications infrastructure
• Data centres and fibre distribution frames
• LAN/WAN structured cabling systems
• Optical signal termination and splicing
