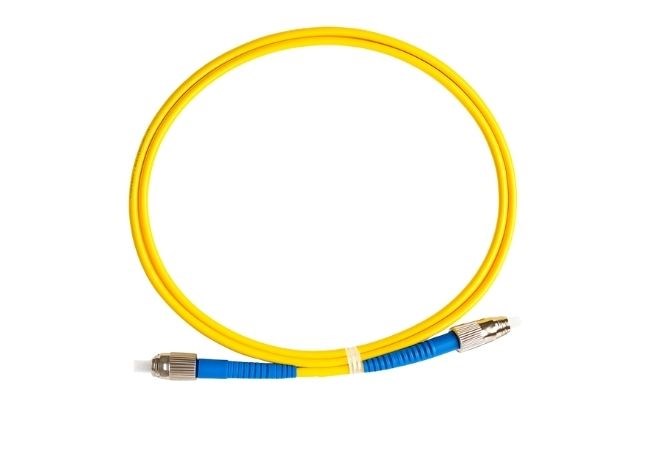

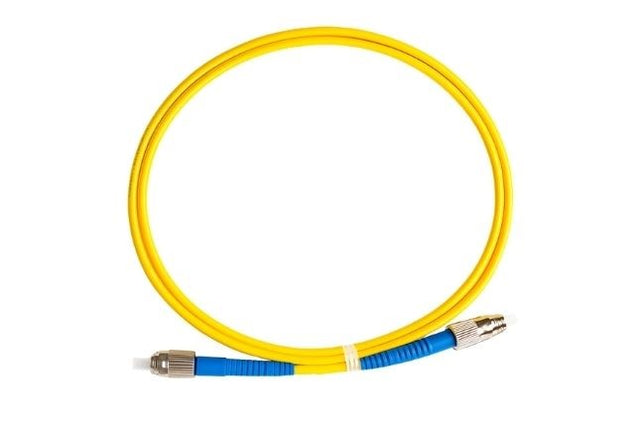

2M FC-FC OS1/OS2 Simplex Patch Lead

The 2 m FC–FC OS1/OS2 simplex fibre optic patch lead provides reliable, high-performance single-mode connectivity for long-distance and critical network applications. Fitted with precision FC connectors, it delivers low insertion loss, excellent return loss and secure screw-on connections for stable signal transmission.

Key Features

• 2 m single-mode simplex fibre patch lead
• FC to FC connectors with threaded, secure coupling
• OS1/OS2 compliant for indoor and outdoor installations
• Low insertion loss and high return loss
• Ideal for long-distance and high-bandwidth transmission
• Durable jacket for long service life

Specifications

• Fibre Type: Single-mode OS1/OS2
• Core / Cladding: 9/125 µm
• Length: 2 m
• Connector A: FC
• Connector B: FC
• Polish Type: UPC
• Cable Type: Simplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Wavelength: 1310 nm / 1550 nm
• Jacket Material: LSZH or PVC (application dependent)

Applications

• Telecommunications networks
• Data centres and server rooms
• Fibre distribution frames (ODF/FDF)
• Backbone and long-distance fibre links
• Test and measurement equipment
