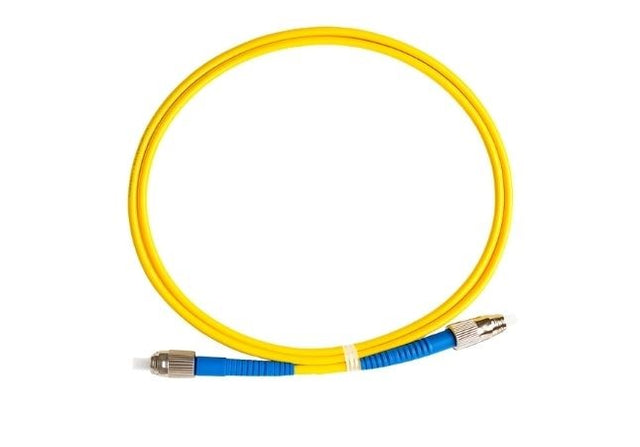

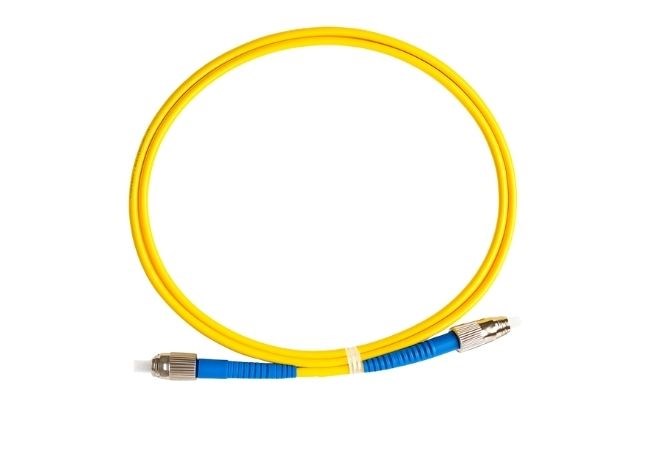

30M FC-FC OS1/OS2 Simplex Patch Lead

The 30 m FC–FC OS1/OS2 simplex fibre optic patch lead is built for high-performance single-mode connectivity over extended distances. Featuring precision FC connectors with secure threaded coupling, it delivers low insertion loss, high return loss and stable signal transmission in demanding network environments.

Key Features

• 30 m single-mode simplex fibre patch lead
• FC to FC connectors with secure screw-on locking
• OS1/OS2 compliant for indoor and outdoor installations
• Low insertion loss and high return loss
• Ideal for long-distance, high-bandwidth transmission
• Durable jacket for long-term, reliable performance

Specifications

• Fibre Type: Single-mode OS1/OS2
• Core / Cladding: 9/125 µm
• Length: 30 m
• Connector A: FC
• Connector B: FC
• Polish Type: UPC
• Cable Type: Simplex
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Wavelength: 1310 nm / 1550 nm
• Jacket Material: LSZH or PVC (application dependent)

Applications

• Telecommunications and carrier networks
• Data centres and network cabinets
• Fibre distribution frames (ODF/FDF)
• Backbone and long-distance fibre links
• Test and measurement equipment
