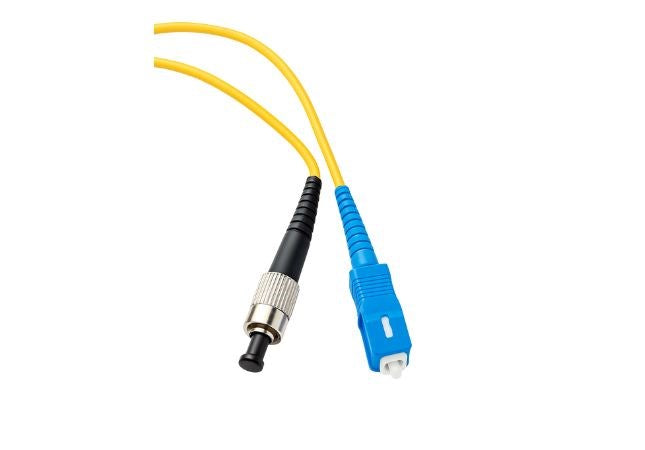

30M SC-FC OS1/OS2 Simplex Patch Lead
30M SC-FC OS1/OS2 Simplex Patch Lead is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
About this Product
The 30 M SC-FC OS1/OS2 Simplex Patch Lead is a premium single-mode fibre optic cable designed to deliver dependable long-distance optical connectivity for high-performance network environments. This patch lead features an SC (Subscriber Connector) on one end and an FC (Ferrule Connector) on the other, in a simplex configuration that supports one-way signal transmission. Engineered with OS1/OS2 single-mode fibre, it ensures low attenuation, excellent return loss, and superior signal integrity over extended distances. The SC connector offers easy push-pull installation, while the FC connector provides a threaded coupling for secure, vibration-resistant connections — ideal for demanding telecom, data centre, and industrial setups. With a robust jacket and precision polishing, this patch lead is built for long-term reliability in structured cabling systems.
Key Features
✔ Connector Types: SC male to FC male (simplex)
✔ Fibre Type: OS1/OS2 single-mode optical fibre for long-reach, low-loss transmission
✔ Cable Length: 30 metres
✔ Simplex Configuration: Single fibre for one-way transmission
✔ High Optical Performance: Low insertion loss and high return loss
✔ Durable Design: Flexible, rugged jacket for protection and easy routing
✔ Reliable Connector Coupling: SC push-pull ease + FC threaded locking
✔ Industry Standard: Works with a wide range of fibre networking equipment
Specifications
| Attribute | Details |
|---|---|
| Cable Type | Single-mode simplex fibre optic cable |
| Fibre Standard | OS1/OS2 |
| Connector A | SC male |
| Connector B | FC male |
| Length | 30 metres |
| Insertion Loss | Typically ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Jacket Material | LSZH or PVC (model dependent) |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Cable Diameter | Approx. 2 mm |
| Standards Compliance | IEC/TIA/EIA optical fibre standards |
Applications
- Long-distance telecommunications links
- Data centre backbone and interconnects
- Enterprise LAN/WAN optical connections
- Optical transceivers and media converters
- Industrial network systems
- Patch panels and optical distribution frames
- FTTH and service provider networks
- Test labs and optical measurement setups
