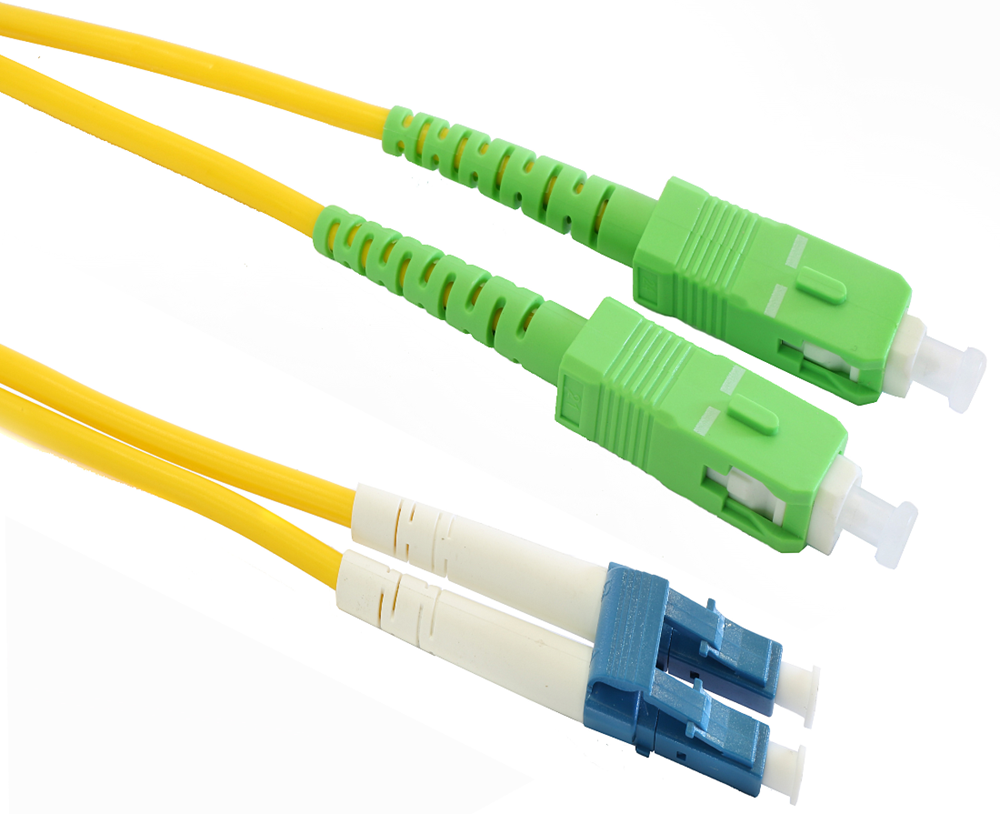

30M SCA-LC OS1/OS2 Duplex Patch Lead

The Grove 30M SCA-LC OS1/OS2 Duplex Patch Lead is an advanced fiber optic solution designed for high-performance, long-distance data transmission in single-mode OS1/OS2 networks. This 30-meter duplex cable features SCA (Subscriber Connector Adapter) and LC connectors, offering secure, efficient, and reliable connections for applications such as 10G, 40G, and 100G Ethernet. With single-mode fiber construction, it ensures minimal signal loss over extended distances, making it ideal for high-speed, long-range communication in data centers, telecommunications, and enterprise network environments. The duplex design supports bidirectional data transfer, while its robust construction provides exceptional signal integrity.

Key Features

• Brand: Grove
• Length: 30 meters, designed for long-distance installations.
• Fiber Type: OS1/OS2 single-mode for long-range, high-speed connectivity.
• Connectors: SCA to LC for secure, reliable connections.
• Cable Design: Duplex configuration for bidirectional data transmission.
• Performance: Low insertion loss, excellent return loss, and optimal signal integrity over long distances.
• Applications: Suitable for 10G, 40G, and 100G Ethernet, as well as data centers, enterprise, and telecommunications networks.

Specifications

• Cable Length: 30 meters
• Fiber Type: OS1/OS2 single-mode (9/125 µm)
• Connector Type: SCA to LC
• Cable Type: Duplex
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 50 dB
• Jacket Material: Standard LSZH or PVC (depending on specification)
• Operating Temperature: -20°C to 70°C
• Standards Compliance: ITU-T G.652.D, IEC 60332-1
