6M SCA-SC OS1/OS2 Simplex Patch Lead
About this Product

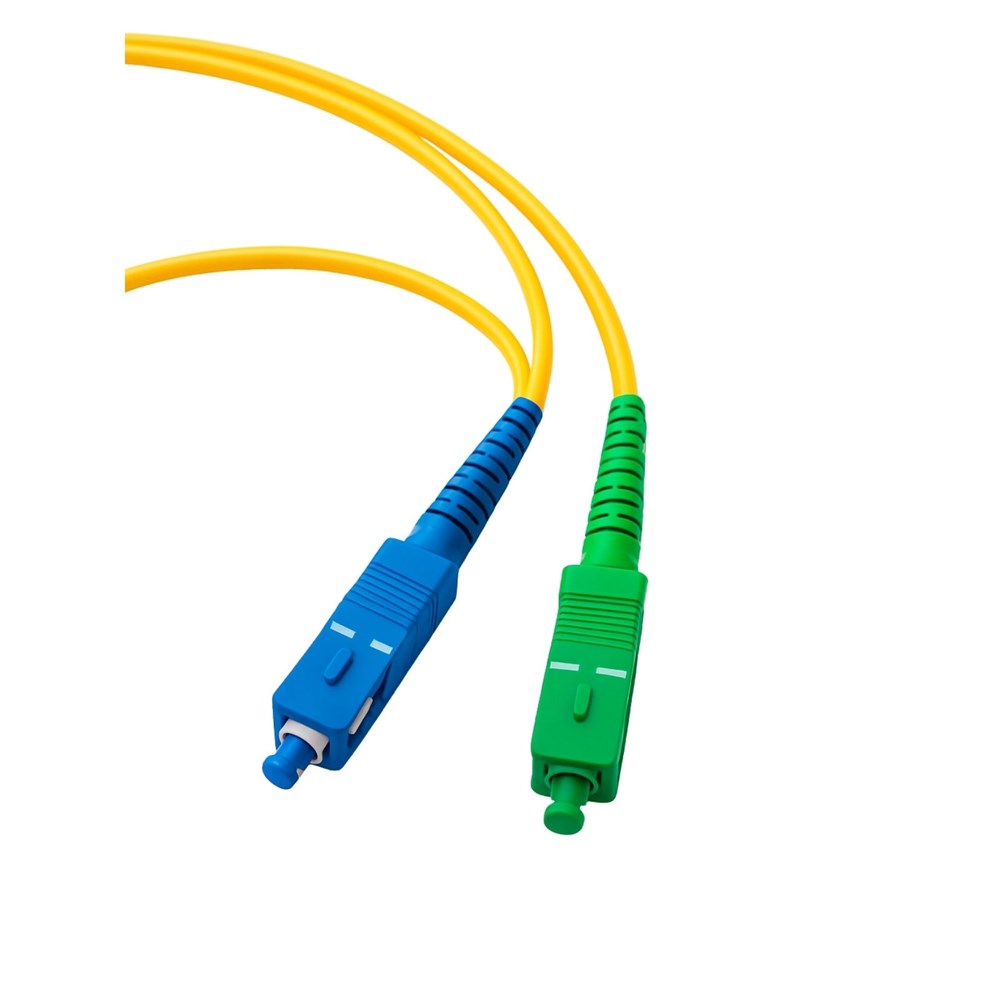

The 6 m SCA-SC OS1/OS2 Simplex Patch Lead is a premium singlemode fibre optic cable designed for reliable point-to-point optical connections in data centres, telecommunications networks, and enterprise environments. Featuring an SCA (Subscriber Connector) on one end and an SC connector on the other, this patch lead enables seamless integration between diverse optical equipment.
Built with OS1/OS2 singlemode fibre (9/125 µm), it ensures low insertion loss and superior signal performance at 1310 nm and 1550 nm wavelengths. The durable yellow jacket identifies it as singlemode fibre and provides protection during installation, while precision-polished connectors guarantee consistent and stable connectivity.
Key Features
- SCA to SC simplex connector configuration
- OS1/OS2 singlemode fibre (9/125 µm)
- 6 metre cable length (metric)
- Low insertion loss for high-performance optical transmission
- Precision-polished connectors for reliable connectivity
- Yellow jacket for easy singlemode identification
- Durable and flexible cable construction
- Manufactured to international fibre optic standards
Specifications
| Specification | Details |
|---|---|
| Fibre Type | OS1/OS2 Singlemode (9/125 µm) |
| Connector Type | SCA-SC Simplex |
| Cable Length | 6 metres |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Wavelength | 1310 nm / 1550 nm |
| Jacket Colour | Yellow |
| Jacket Material | LSZH or PVC |
| Operating Temperature | −20 °C to +70 °C |
| Compliance | IEC, TIA/EIA standards |
Applications
- Singlemode fibre patching in data centres
- Telecommunications network links
- Interconnection between SCA and SC devices
- Optical distribution frames (ODF)
- Enterprise and campus backbone networks
- Switch, router, and optical transceiver connections
