8M SCA-SC OS1/OS2 Simplex Patch Lead
8M SCA-SC OS1/OS2 Simplex Patch Lead is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
8M SCA-SC OS1/OS2 Simplex Patch Lead
About this Product

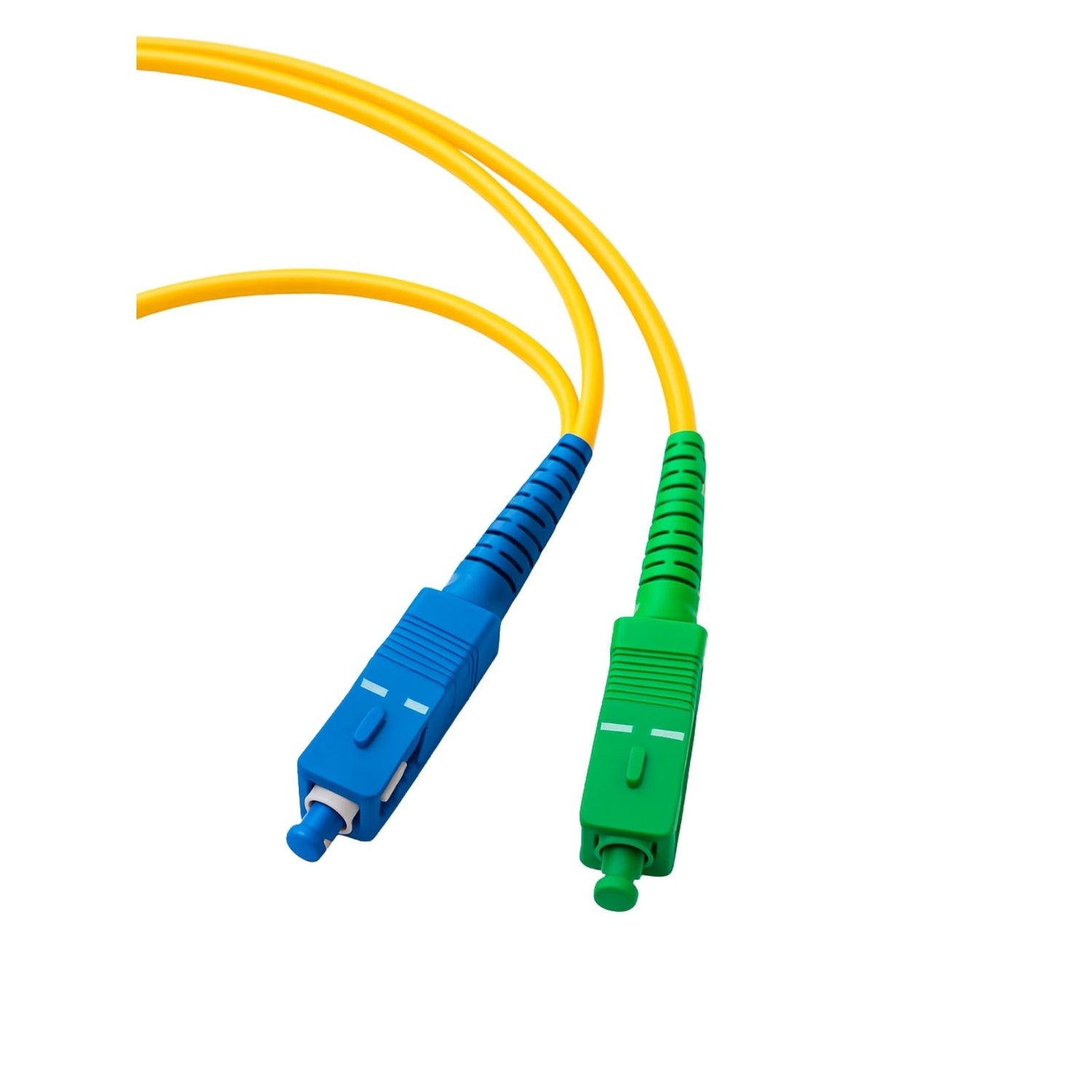

The 8 m SCA-SC OS1/OS2 Simplex Patch Lead is a high-quality singlemode fibre optic cable designed for reliable long-distance optical connections in data centres, telecommunications networks, and enterprise environments. Featuring an SCA (Subscriber Connector) on one end and an SC connector on the other, this patch lead allows seamless interconnection between diverse optical equipment.
Constructed with OS1/OS2 singlemode fibre (9/125 µm), it provides low insertion loss and superior signal integrity at 1310 nm and 1550 nm wavelengths. The yellow jacket identifies singlemode fibre, while the durable cable and precision-polished connectors ensure stable, dependable performance in critical network applications.
Key Features
- SCA to SC simplex connector configuration
- OS1/OS2 singlemode fibre (9/125 µm)
- 8 metre cable length (metric)
- Low insertion loss for high-performance optical transmission
- Precision-polished connectors for reliable connectivity
- Yellow jacket for easy singlemode identification
- Durable and flexible cable construction
- Manufactured to international fibre optic standards
Specifications
| Specification | Details |
|---|---|
| Fibre Type | OS1/OS2 Singlemode (9/125 µm) |
| Connector Type | SCA-SC Simplex |
| Cable Length | 8 metres |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Wavelength | 1310 nm / 1550 nm |
| Jacket Colour | Yellow |
| Jacket Material | LSZH or PVC |
| Operating Temperature | −20 °C to +70 °C |
| Compliance | IEC, TIA/EIA standards |
Applications
- Singlemode fibre patching in data centres
- Telecommunications network links
- Interconnection between SCA and SC devices
- Optical distribution frames (ODF)
- Enterprise and campus backbone networks
- Switch, router, and optical transceiver connections
