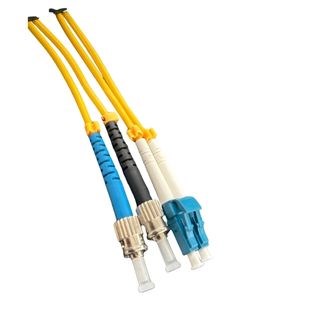

5M ST-LC SM OS1/OS2 Duplex Patch Lead

The 5 m ST-LC SM OS1/OS2 Duplex Patch Lead is a high-performance single-mode fibre optic cable engineered for reliable full-duplex connectivity in telecommunications, data centres, and structured cabling environments. Featuring ST connectors on one end and LC connectors on the other, this duplex patch lead enables efficient interconnection between patch panels, optical transceivers, and network devices.

Constructed with 9/125 µm single-mode fibre, the cable ensures long-distance high-speed transmission with minimal signal loss. Its duplex configuration contains two fibre strands within a single cable, allowing simultaneous transmit and receive communication for full-duplex network operation. Precision-polished ceramic ferrules provide low insertion loss and stable optical performance.

The durable yellow LSZH or PVC jacket provides flexibility, protection, and easy identification of single-mode fibre in installations. With a compact 2 mm per strand diameter, this 5 m patch lead is simple to route and manage in high-density rack and cabinet setups.

Key Features

• ST to LC connector configuration
• OS1/OS2 single-mode fibre for long-distance, high-speed transmission
• Duplex cable design with two fibre strands for transmit and receive
• 9/125 µm fibre core for reliable optical performance
• Low insertion loss for consistent signal integrity
• Precision ceramic ferrules for accurate fibre alignment
• Durable yellow LSZH or PVC jacket for protection and flexibility
• Compact 2 mm cable diameter per strand for efficient cable management
• Factory terminated and performance tested

Specifications

• Cable Length: 5 m
• Connector Type A: ST (2x)
• Connector Type B: LC (2x)
• Fibre Type: Single-mode
• Fibre Standard: OS1 / OS2
• Core / Cladding Diameter: 9 / 125 µm
• Cable Structure: Duplex (2 fibres)
• Cable Diameter: approx. 2 mm per strand
• Connector Ferrule: Ceramic
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB (UPC typical)
• Jacket Material: LSZH or PVC
• Cable Colour: Yellow
• Operating Temperature: −20 °C to +70 °C

Applications

• Fibre patch panels and optical distribution frames
• Telecommunications and broadband networks
• Data centres and enterprise network infrastructures
• Optical switches, media converters, and SFP transceivers
• Fibre backbone and cross-connect cabling
• Test and measurement equipment
