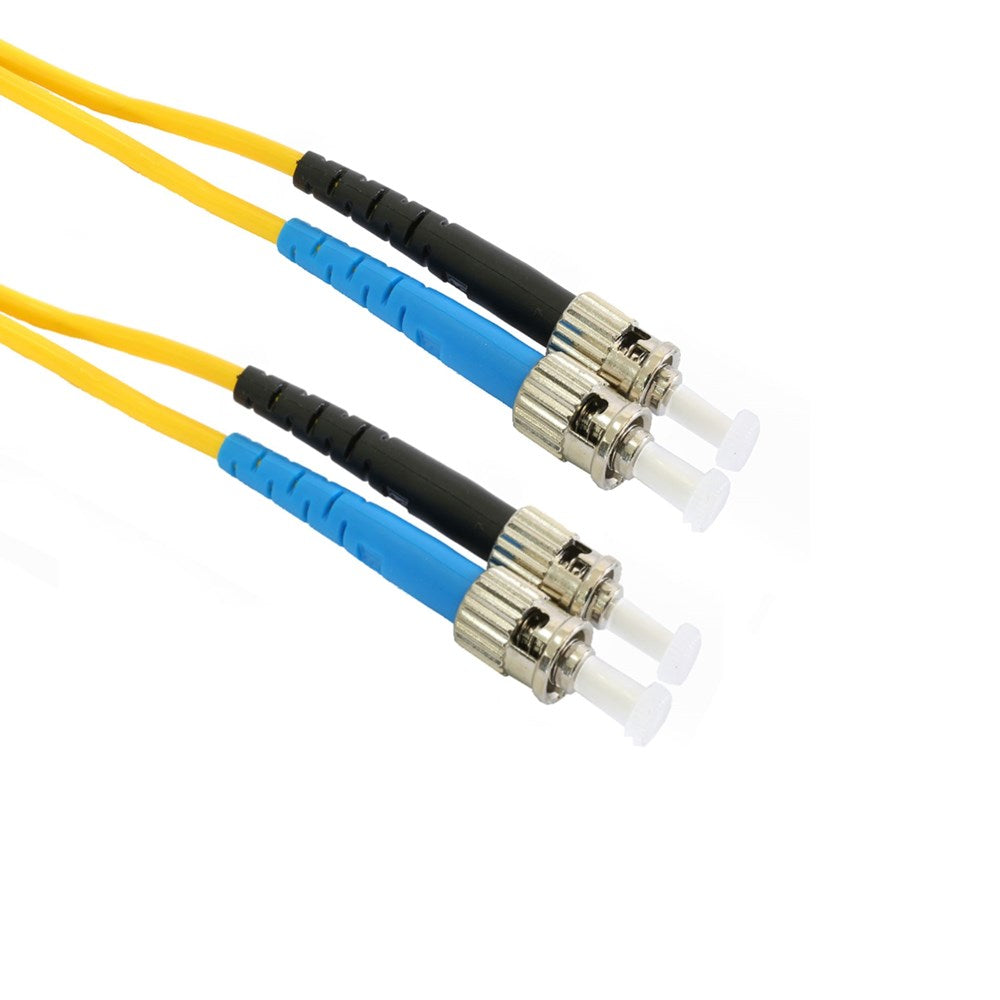

10M ST-ST SM OS1/OS2 Duplex Patch Lead

The 10 metre ST–ST Single Mode (SM) OS1/OS2 Duplex Fibre Optic Patch Lead is engineered for reliable, high-speed data transmission over extended distances. Equipped with ST connectors on both ends, this duplex cable enables simultaneous bidirectional communication, making it ideal for backbone links, telecommunications, and structured cabling systems.

Built using premium-grade single mode fibre, this patch lead ensures low attenuation and minimal signal loss, supporting long-distance connectivity in demanding network environments. The robust outer jacket enhances durability, while the duplex configuration improves efficiency by allowing concurrent transmit and receive channels. Suitable for both indoor and outdoor installations, it is a dependable choice for professional networking applications.

Key Features

• 10 metre length for extended reach installations
• ST to ST connectors for secure and stable fibre connections
• Single Mode OS1/OS2 fibre for long-distance, high-bandwidth transmission
• Duplex cable design for simultaneous two-way communication
• Low insertion loss and high return loss for optimal signal integrity
• Durable jacket for protection against physical and environmental stress
• Suitable for structured cabling and fibre backbone networks

Specifications

• Cable Type: Fibre Optic Patch Lead
• Fibre Mode: Single Mode (SM)
• Fibre Standard: OS1/OS2
• Connector Type: ST to ST
• Polarity: Duplex
• Length: 10 metres
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC (variant dependent)
• Operating Temperature: -20°C to +70°C
• Wavelength: 1310 nm / 1550 nm

Applications

• Telecommunications infrastructure
• Data centres and network cabinets
• Fibre backbone and horizontal cabling
• LAN and WAN environments
• Fibre-to-the-premises (FTTP) deployments
• Industrial and enterprise networking
• Patch panel to active equipment connections
