4 Way Splitter 5-2400 MHz Reverse PP 30VDC 2A
About this Product

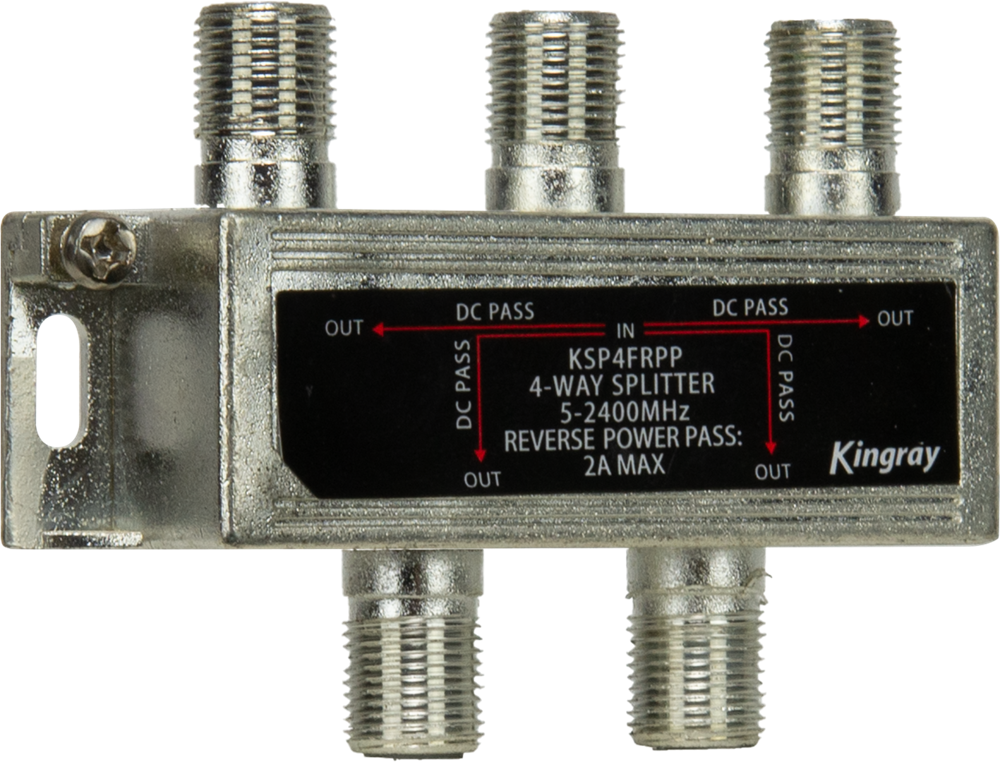

The Kingray 4‑Way Splitter 5–2400 MHz Reverse Power Pass is a professional‑grade RF signal splitter designed to divide a single coaxial input into four output paths while maintaining high signal integrity over a broad frequency range. Featuring Reverse Power Pass, this splitter allows DC power to pass from the output ports back toward the input, enabling convenient powering of antenna amplifiers, masthead devices, or inline amplifiers located upstream in the coax network. Rated for up to 30 V DC at 2 A, it accommodates typical DC feed requirements without degrading RF performance. Built with rugged metal housing and precision F‑type connectors, this splitter offers low insertion loss, excellent shielding, and high reliability in residential, commercial, and broadcast applications.
Key Features
- Wide Frequency Range: 5–2400 MHz — supports TV (VHF/UHF), satellite IF, broadband, and digital signals
- 4‑Way Split: Distributes one input into four outputs
- Reverse Power Pass: DC power flows from outputs toward the input — ideal for powering upstream devices
- High DC Rating: Supports up to 30 V DC and 2 A
- Low Insertion Loss: Minimises signal attenuation across outputs
- High Shielding: Reduces RF leakage and interference
- Standard F‑Type Connectors: Secure and reliable threaded connectors
- Durable Metal Housing: Suitable for indoor and protected outdoor use
Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | 1‑in, 4‑out RF splitter |
| Frequency Range | 5 MHz – 2400 MHz |
| Impedance | 75 Ω |
| Connector Type | F‑Type female |
| Insertion Loss | ~8–11 dB (typical; frequency dependent) |
| Return Loss | ≥ 10 dB |
| Power Pass | Reverse power pass (from outputs to input) |
| DC Power Rating | 30 V DC, 2 A max |
| Shielding | ≥ 85 dB |
| Housing Material | Die‑cast aluminium |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (approx.) | 110 mm × 80 mm × 28 mm |
| Weight (approx.) | 180 g |
| Compliance | RoHS compliant (where applicable) |
Applications
The Kingray 4‑Way Splitter with Reverse Power Pass is ideal for:
- Residential & Commercial TV Distribution
- Satellite IF and Broadband Systems
- Systems Requiring Upstream DC Power Feed
- Antenna Signal Sharing for Multiple Devices
- CCTV & RF Monitoring Installations
- Splitting Signals to Four Receivers or Devices
- Feeding DC to Masthead Amplifiers or Inline Amplifiers
