8 Way Splittler all Ports Power Pass | Foxtel Approved
About this Product

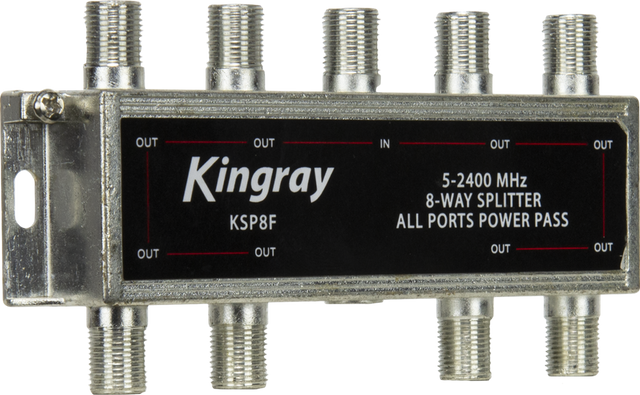

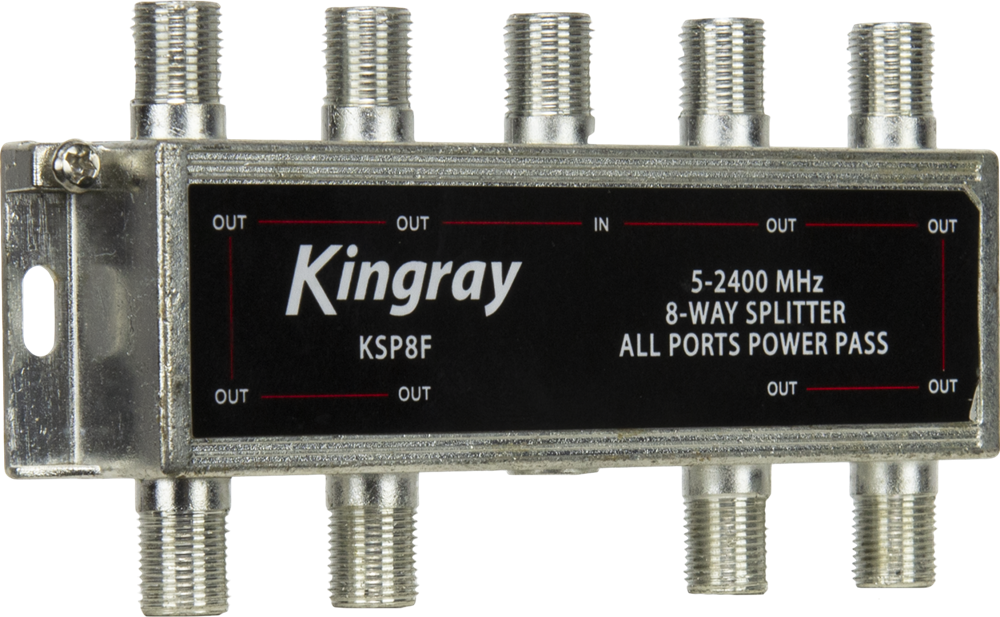

The Kingray 8‑Way Splitter All Ports Power Pass is a high‑performance RF splitter designed to distribute a single coaxial signal to up to eight outputs with minimal signal loss. Built for residential, commercial, and broadcast environments, this splitter supports full‑band frequency operation and ensures consistent signal quality across all ports. All outputs feature Power Pass, allowing DC power to flow through every port — perfect for powering amplifiers, antennas, or masthead equipment without interrupting signal distribution. Engineered to meet strict compliance standards, it is Foxtel Approved for use in Australian pay‑TV and broadband networks, offering reliable performance with RG6 coaxial cabling. Its robust, shielded housing reduces interference and maintains signal integrity, while standard F‑type connectors ensure quick and secure installations.
Key Features
- 8‑Way Split Configuration – Distributes one input to eight outputs
- All Ports Power Pass – DC power passes through all outputs for flexible powering of inline devices
- Foxtel Approved – Certified for use on Foxtel networks in Australia
- Wide Frequency Range – Suitable for VHF/UHF, digital TV, satellite IF, and broadband signals
- Low Insertion Loss – Maintains signal strength across multiple outputs
- Shielded Metal Housing – Reduces RF interference for stable performance
- Standard F‑Type Connectors – Easy install with common coax fittings
- Durable Build – Designed for long‑term indoor or outdoor installations
Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | 1‑in, 8‑out RF splitter |
| Frequency Range | 5 MHz – 2400 MHz |
| Connector Type | F‑Type female |
| Impedance | 75 Ω |
| Insertion Loss | ~12–15 dB (varies by frequency) |
| Return Loss | ≥ 12 dB |
| Power Pass | All ports (DC through) |
| Shielding | ≥ 90 dB |
| Housing Material | Die‑cast aluminium |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (approx.) | 120 mm × 90 mm × 30 mm |
| Weight (approx.) | 250 g |
| Compliance | Foxtel Approved, RoHS |
Applications
The Kingray 8‑Way Splitter is ideal for:
- Residential TV Distribution
- Multi‑TV Installations
- Foxtel Pay‑TV Systems
- RF Signal Distribution in Homes & Offices
- Digital Terrestrial & Satellite IF Distribution
- Broadband & CATV Networks
- CCTV with Distributed Video Outputs
- Antenna Signal Sharing
