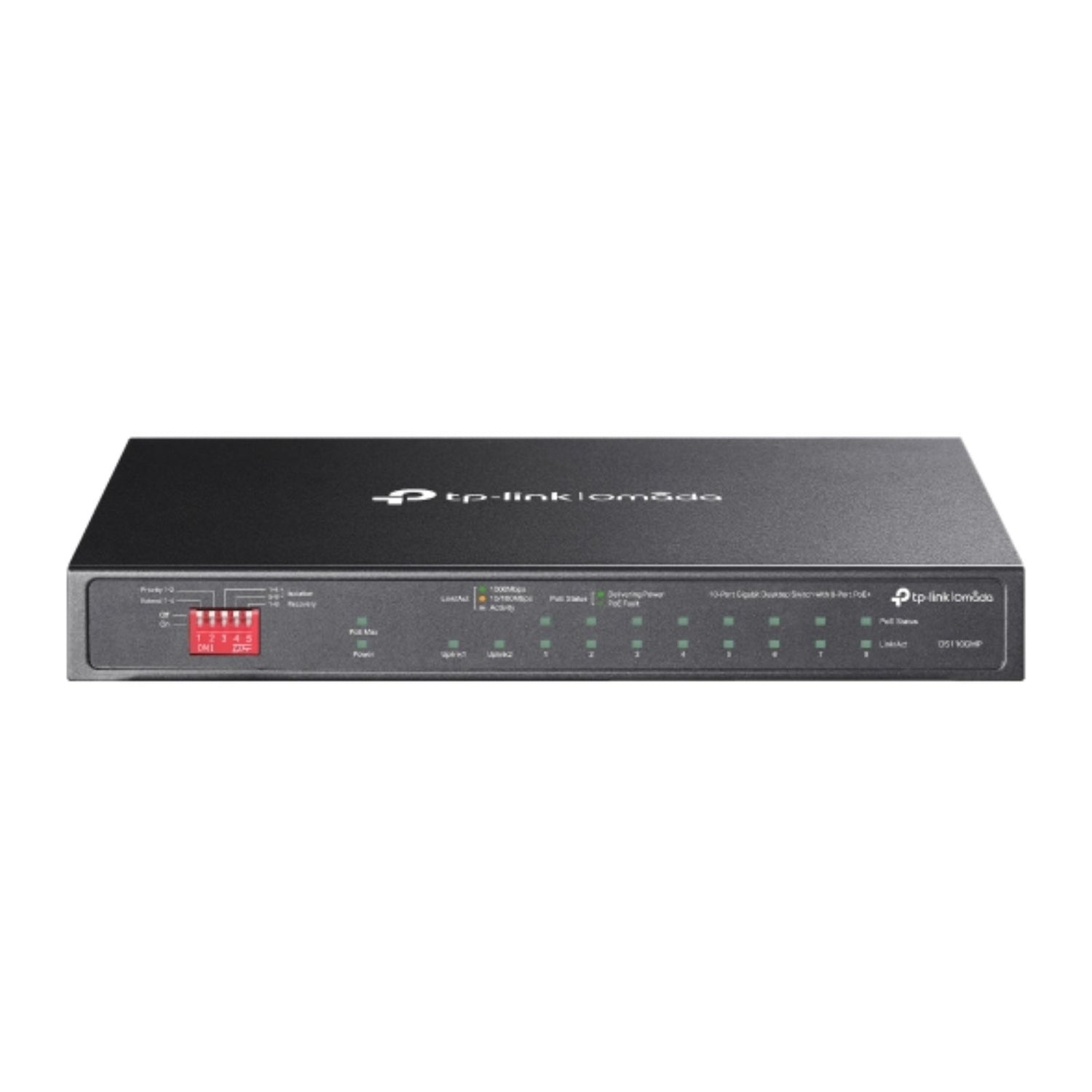

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+

The Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ is a compact, high-efficiency network switch designed to meet the power and connectivity demands of small to medium-sized business environments. Featuring 8 Gigabit PoE+ ports and 2 additional Gigabit uplink ports, this switch supports seamless data transfer and reliable power delivery to IP cameras, wireless access points, and VoIP devices—all through a single Ethernet cable.

Fully compatible with TP-Link’s Omada SDN (Software Defined Networking) platform, the switch enables centralised cloud-based management and monitoring through the Omada Controller or mobile app. It supports intelligent PoE features such as auto recovery and scheduling, alongside essential Layer 2 features including VLAN, QoS, IGMP Snooping, and port isolation. The fanless metal housing ensures silent operation, making it ideal for office desktops or wall-mounted installations.

Key Features:

• 10 × Gigabit Ports Total – 8 × PoE+ RJ45 ports + 2 × non-PoE RJ45 uplink ports

• IEEE 802.3af/at Compliant PoE+ – Supplies up to 30W per port

• PoE Budget – Provides up to 123W total for connected devices

• Cloud or Local Management – Via Omada Controller, App, or Web UI

• Centralised Omada SDN Support – Unified management for networks

• Advanced Network Features – VLAN, QoS, IGMP Snooping, PoE Scheduling

• PoE Auto Recovery – Automatically restarts unresponsive PoE devices

• Compact & Silent Design – Fanless metal housing, ideal for quiet environments

• Plug-and-Play – Basic setup without configuration

Specifications:

• Model: TL-SG1210MP

• Ports:

  • 8 × 10/100/1000 Mbps RJ45 PoE+ Ports

  • 2 × 10/100/1000 Mbps RJ45 Uplink Ports

• PoE Standard: IEEE 802.3af/at

• Total PoE Budget: 123W

• Switching Capacity: 20 Gbps

• MAC Address Table: 8K entries

• VLAN Support: 802.1Q VLAN, Port Isolation

• QoS: 802.1p/DSCP QoS, Bandwidth Control

• Management: Omada Controller, Web GUI, Omada App

• Mounting: Desktop or wall-mountable

• Power Supply: External power adapter

• Dimensions: 209 × 126 × 26 mm

• Operating Temperature: 0–40°C
