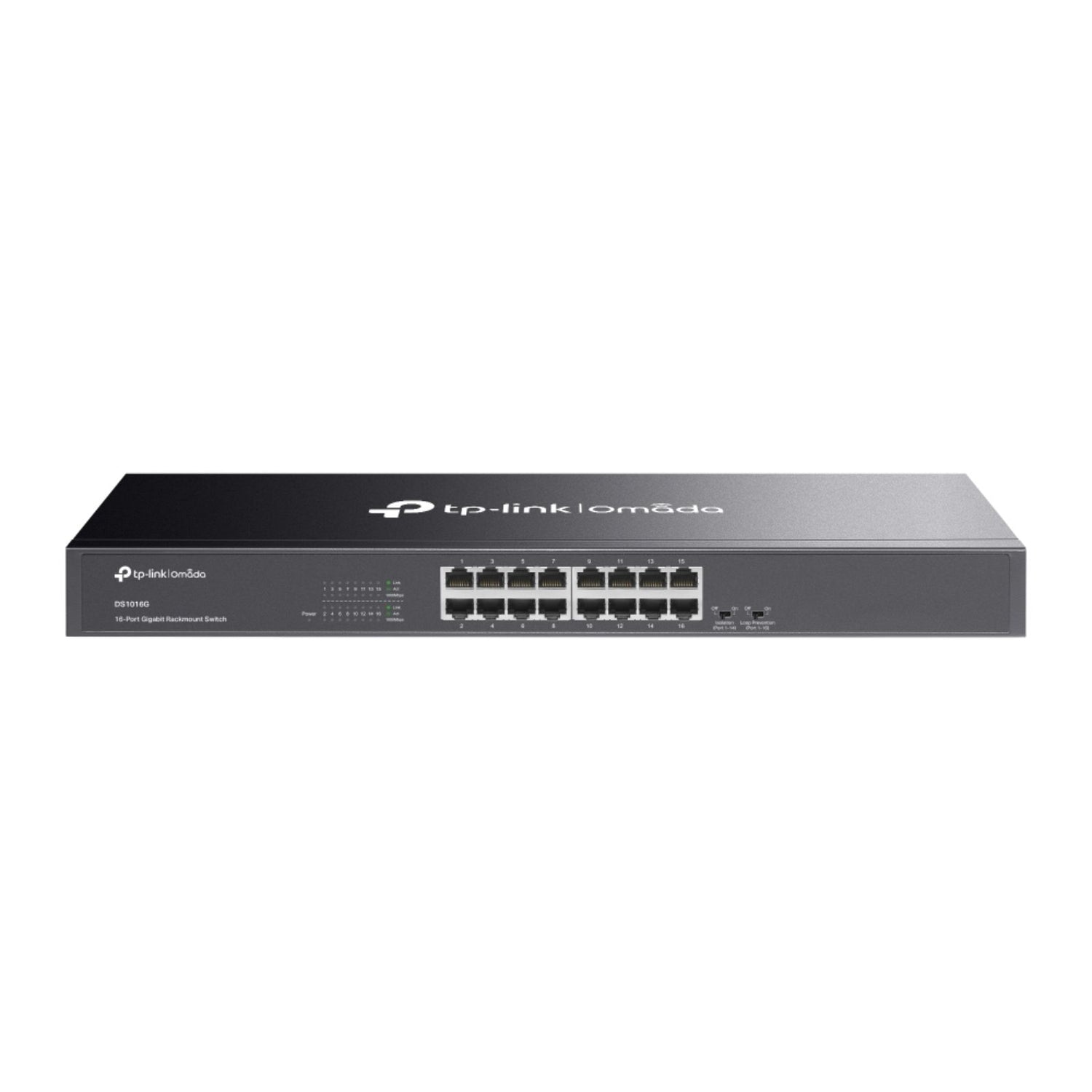

Omada 16-Port Gigabit Rackmount Switch

The Omada 16-Port Gigabit Rackmount Switch is a business-class, fully managed Layer 2+ network switch, designed to deliver fast, reliable connectivity and intelligent network management. Equipped with 16 Gigabit RJ45 ports, this switch provides full-speed wired connections ideal for offices, retail environments, schools, and enterprise networks requiring secure and scalable networking solutions.

Integrated with TP-Link’s Omada SDN (Software Defined Networking) platform, this switch supports centralised cloud management and remote monitoring through the Omada Controller or mobile app. Advanced features like 802.1Q VLAN, QoS, IGMP Snooping, Link Aggregation, and Static Routing allow for optimised network segmentation, bandwidth control, and high-performance traffic handling. Its 1U rackmount metal housing offers durable installation in network cabinets or server racks, while a smart fan (model-dependent) ensures efficient thermal management.

Key Features:

• 16 × 10/100/1000 Mbps RJ45 Ports – Reliable Gigabit connectivity for all devices

• Omada SDN Integration – Enables unified cloud-based network management

• Layer 2+ Managed Features – VLAN, QoS, IGMP Snooping, Link Aggregation, Static Routing

• Access Control & Security – ACL, Port Security, DHCP Snooping, Loopback Detection

• Web GUI, CLI, SNMP, and App Management – Flexible administration options

• Smart Fan or Fanless Operation – Quiet and efficient cooling

• 1U Rackmount Design – Durable metal housing with mounting brackets included

• Plug-and-Play Ready – Ideal for fast deployment with optional advanced configuration

Specifications:

• Model: TL-SG2218 or TL-SG3218 (Omada Series)

• Ports: 16 × 10/100/1000 Mbps RJ45 Ports

• Switching Capacity: 32 Gbps

• Forwarding Rate: 23.8 Mpps

• MAC Address Table: 16K entries

• Packet Buffer Memory: 1 MB

• VLAN Support: 802.1Q Tag VLAN, Port-Based VLAN, Voice VLAN, GVRP

• QoS: 802.1p/DSCP QoS, Bandwidth Control, Priority Queues

• L2+ Features: Static Routing, Link Aggregation, IGMP Snooping, Port Mirroring

• Security: ACL, IP-MAC-Port Binding, DHCP Snooping, Storm Control

• Management: Omada SDN, Web UI, CLI, SNMP v1/v2c/v3

• Mounting: 1U Rackmount (brackets included)

• Power Supply: Internal

• Dimensions: 440 × 180 × 44 mm

• Operating Temperature: 0–50°C
